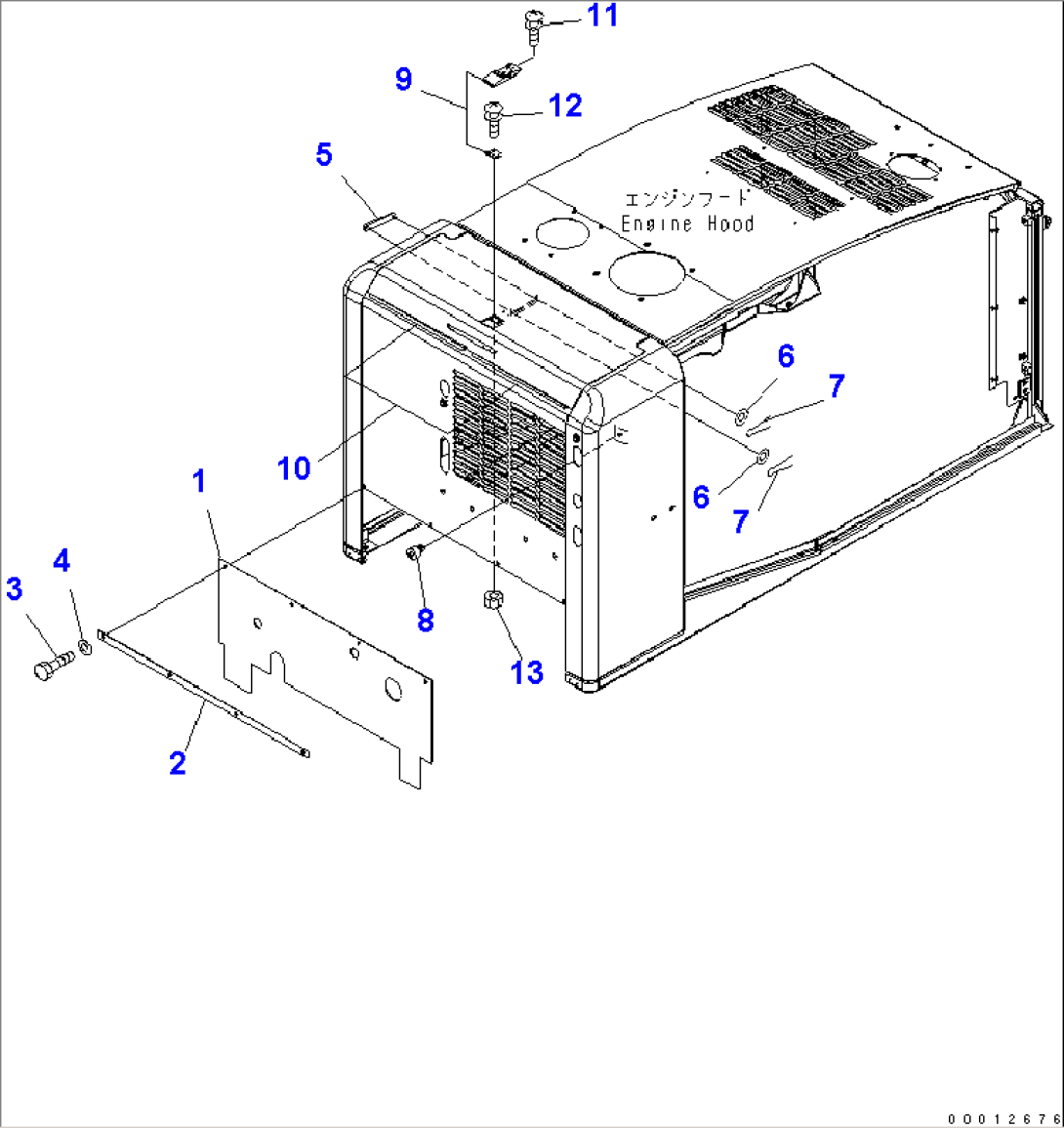

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-54-31594 | SHEET | A89001- | |
| 2 | 417-54-21430 | PLATE | A89001- | |
| 3 | 01010-80820 | BOLT | A89001- | |
| 4 | 01643-30823 | WASHER | A89001- | |
| 5 | 418-54-31832 | PLATE | A89001- | |
| 6 | 01643-30623 | WASHER | A89001- | |
| 7 | 04050-11612 | PIN | A89001- | |
| 8 | 415-54-11980 | CUSHION | A89001- | |
| 9 | 421-09-12322 | HOLDER | A89001- | |
| 10 | 418-54-33130 | SEAL | A89001- | |
| 11 | 01023-10414 | SCREW | A89001- | |
| 12 | 01023-10420 | SCREW | A89001- | |
| 13 | 01580-60403 | NUT | A89001- |
