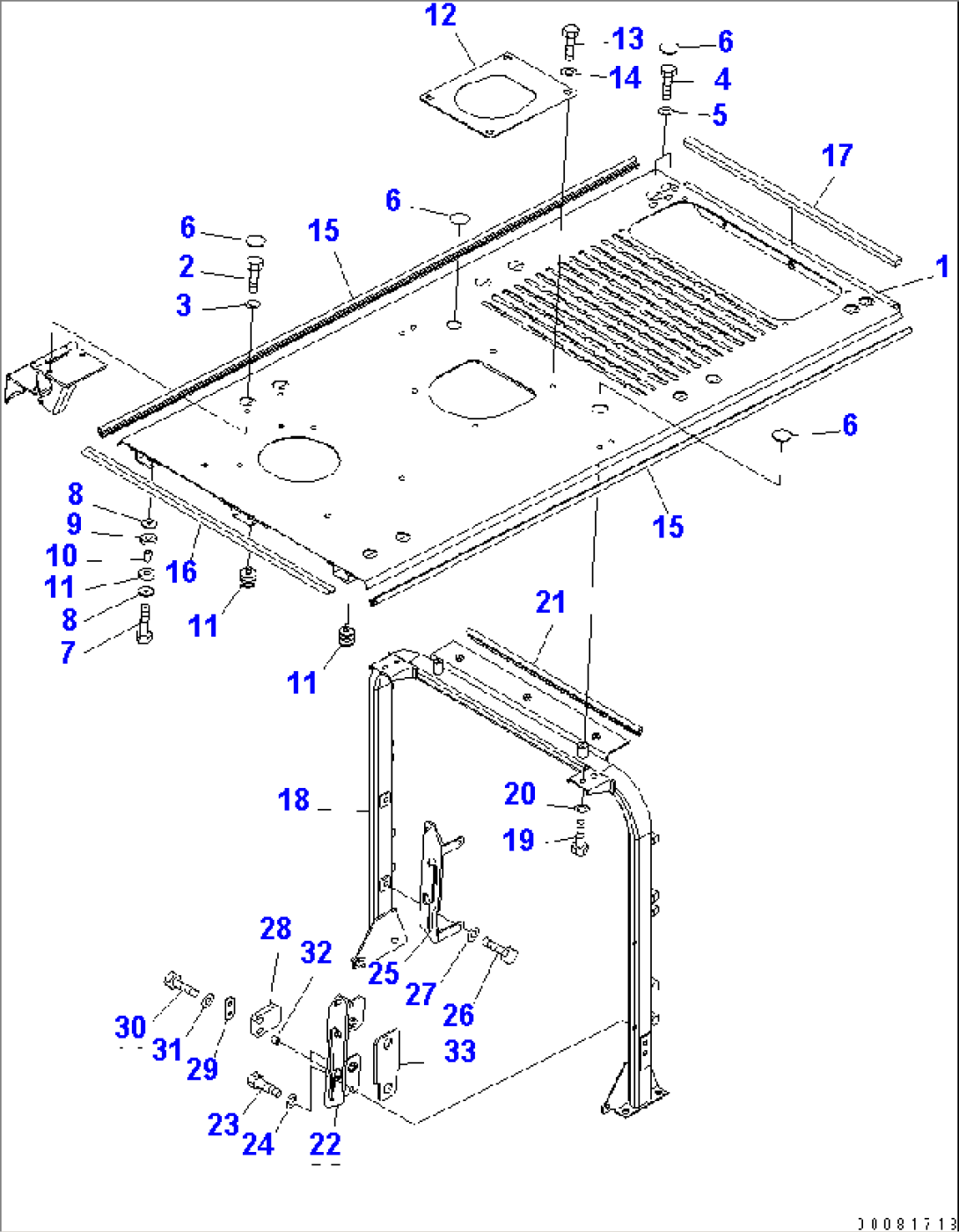

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-54-41112 | HOOD | 90001- | |
| 2 | 01010-81225 | BOLT | 90001- | |
| 3 | 01643-31232 | WASHER | 90001- | |
| 4 | 01010-81230 | BOLT | 90001- | |
| 5 | 01643-31232 | WASHER | 90001- | |
| 6 | 195-54-42981 | CAP | 90001- | |
| 7 | 01010-81250 | BOLT | 90001- | |
| 8 | 419-43-17920 | WASHER | 90001- | |
| 9 | 419-43-17930 | CUSHION | 90001- | |
| 10 | 417-62-14130 | SPACER | 90001- | |
| 11 | 417-62-13620 | CUSHION | 90001- | |
| 12 | 421-54-42690 | COVER | 90001- | |
| 13 | 01010-81225 | BOLT | 90001- | |
| 14 | 01643-31232 | WASHER | 90001- | |
| 15 | 417-54-21390 | SEAL | 90001- | |
| 16 | 421-54-48180 | SEAL | 90092- | |
| 16 | 423-54-48421 | SEAL | 90001-90091 | |
| 17 | 421-54-43580 | SEAL (BONDED) | 90001- | |
| 18 | 421-54-41121 | FRAME | 90001- | |
| 19 | 01010-81225 | BOLT | 90001- | |
| 20 | 01643-31232 | WASHER | 90001- | |
| 21 | 421-54-41320 | SEAL,DOOR | 90001- | |
| 22 | 421-54-45311 | GUIDE,L.H. | 90001- | |
| 23 | 01010-81025 | BOLT | 90001- | |
| 24 | 01643-31032 | WASHER | 90001- | |
| 25 | 421-54-43561 | GUIDE,R.H. | 90001- | |
| 26 | 01010-81025 | BOLT | 90001- | |
| 27 | 01643-31032 | WASHER | 90001- | |
| 28 | 421-54-43670 | RUBBER | 90001- | |
| 29 | 421-54-43680 | PLATE | 90001- | |
| 30 | 01010-80840 | BOLT | 90001- | |
| 31 | 01643-30823 | WASHER | 90001- | |
| 32 | 175-40-31380 | SPACER | 90001- | |
| 33 | 421-54-45330 | RUBBER | 90001- |
