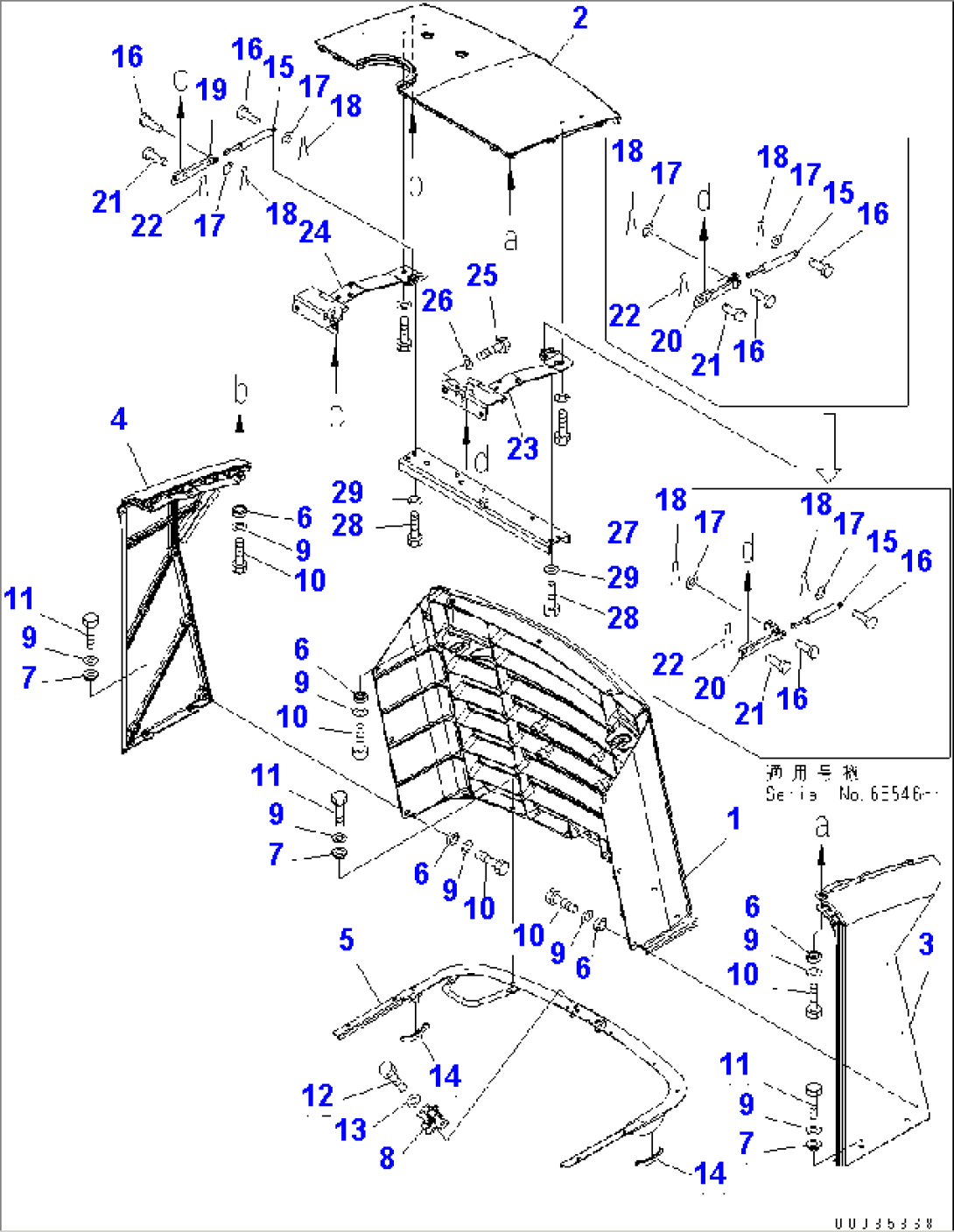

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-54-41411 | GRILLE | 65339- | |
| 1 | \1\423-54-41410 | GRILLE | 65001-65338 | |
| 2 | 423-54-41421 | GRILLE,TOP | 65339- | |
| 2 | \1\423-54-41420 | GRILLE,TOP | 65001-65338 | |
| 3 | 423-54-41431 | GRILLE,L.H. | 65339- | |
| 3 | \0\423-54-41430 | GRILLE,L.H. | 65001-65338 | |
| 4 | 423-54-41441 | GRILLE,R.H. | 65339- | |
| 4 | \1\423-54-41440 | GRILLE,R.H. | 65001-65338 | |
| 5 | 423-54-41470 | BRACKET | 65001- | |
| 6 | 423-54-41480 | SPACER | 65001- | |
| 7 | 423-54-41491 | SPACER | 65001- | |
| 8 | 423-54-41180 | LOCK ASS'Y | 65001- | |
| 9 | 418-54-35450 | WASHER | 65001- | |
| 10 | 01010-D0816 | BOLT | 65001- | |
| 11 | 01010-D0820 | BOLT | 65001- | |
| 12 | 01010-D1020 | BOLT | 65001- | |
| 13 | 01643-71032 | WASHER | 65001- | |
| 14 | 421-54-22960 | PROTECTOR | 65001- | |
| 15 | 424-54-41341 | CYLINDER | 65001- | |
| 16 | 04205-10835 | PIN | 65001- | |
| 17 | 01640-20816 | WASHER | 65001- | |
| 18 | 04050-12015 | PIN,COTTER | 65001- | |
| 19 | 423-54-41361 | BRACKET | 65546- | |
| 19 | 423-54-41360 | BRACKET | 65001-65545 | |
| 20 | 424-54-41621 | BRACKET | 65546- | |
| 20 | 424-54-41540 | BRACKET | 65001-65545 | |
| 21 | 04205-11638 | PIN | 65001- | |
| 22 | 04050-14028 | PIN,COTTER | 65001- | |
| 23 | 424-54-41531 | HINGE,L.H. | 65001- | |
| 24 | 423-54-41350 | HINGE,R.H. | 65001- | |
| 25 | 01010-81225 | BOLT | 65001- | |
| 26 | 01643-31232 | WASHER | 65001- | |
| 27 | 423-54-41370 | BRACKET | 65001- | |
| 28 | 01010-81020 | BOLT | 65001- | |
| 29 | 01643-31032 | WASHER | 65001- |
