| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 209-54-44131 | PIPE | 55001- | |
| 2 | 01010-81230 | BOLT | 55001- | |
| 3 | 01643-31232 | WASHER | 55001- | |
| 4 | 6127-11-4580 | HOOD | 55069- | |
| 4 | 600-181-4950 | HOOD | 55001-55068 |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc850 8 s/n 50001 up
- Guard
- Hood (pipe extension) (sandy and dusty terrain spec.)(#55001 )
Поиск по каталогу

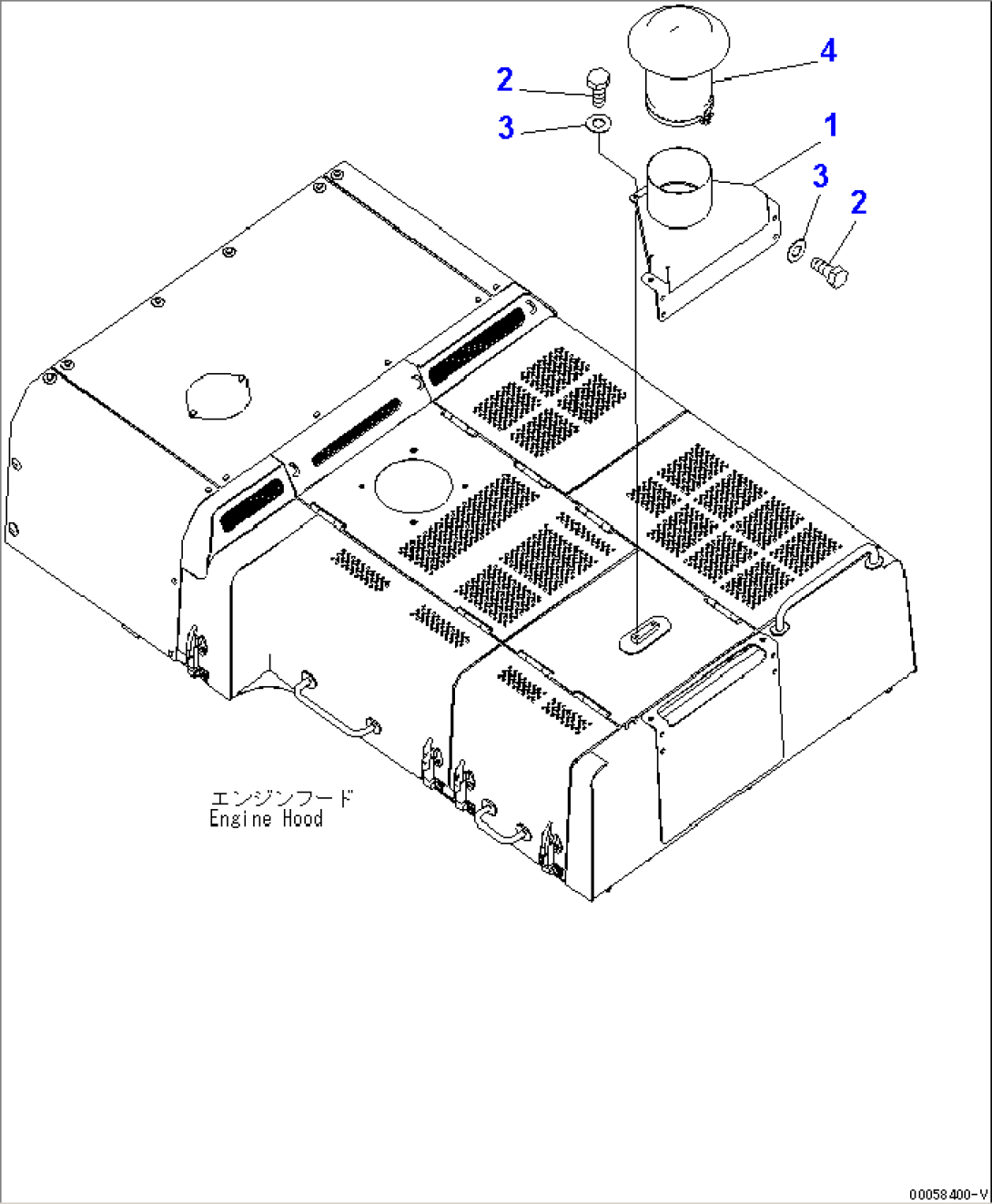

HOOD (PIPE EXTENSION) (SANDY AND DUSTY TERRAIN SPEC.)(#55001-)
