| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 600-181-2630 | PRE-CLEANER ASS'Y | 70001- | |
| 2 | 418-54-31330 | HOSE | 70001- | |
| 3 | 07289-00120 | CLAMP | 70001- | |
| 4 | 417-U12-3110 | BRACKET | 70001- | |
| 5 | 01010-81020 | BOLT | 70001- | |
| 6 | 01643-31032 | WASHER | 70001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa250pt 5 s/n 70001 up (parallel linkage spec.)
- Guard
- Hood (pre cleaner) (with extension)
Поиск по каталогу

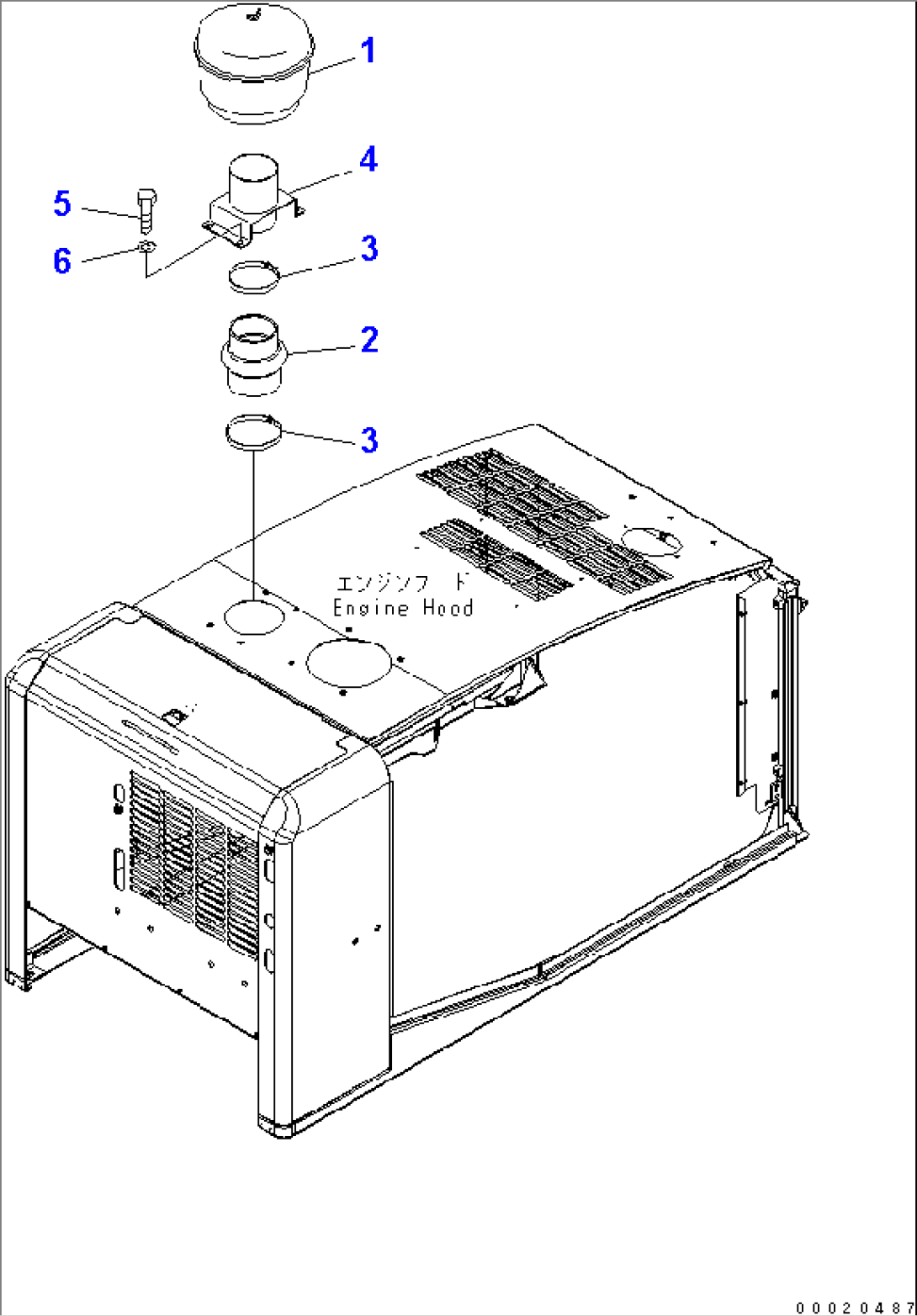

HOOD (PRE-CLEANER) (WITH EXTENSION)
