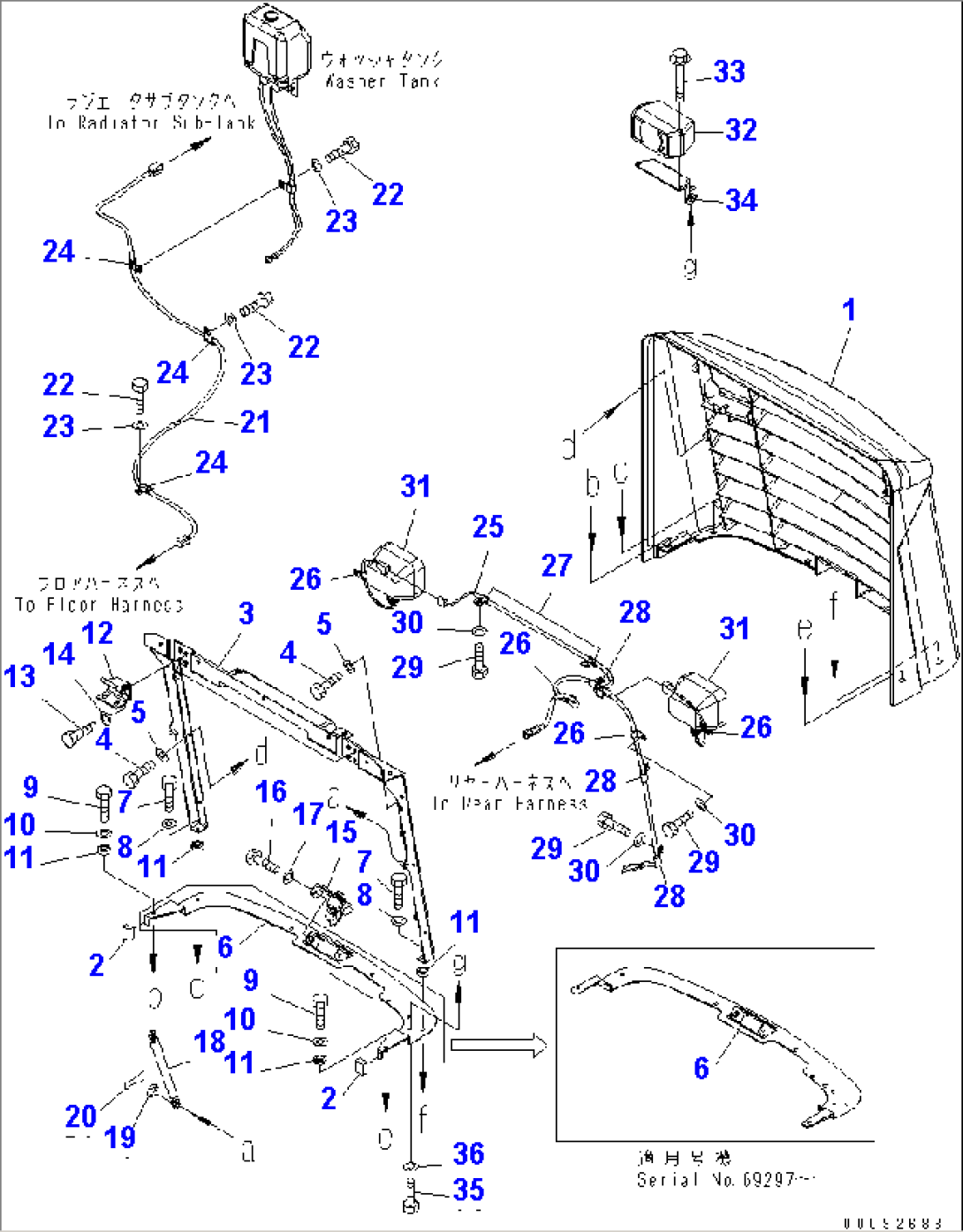

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-54-31142 | GRILLE | 65001- | |
| 2 | 418-54-35410 | CUSHION | 65001-69296 | |
| 3 | 418-54-31155 | BRACKET | 65001- | |
| 4 | 01010-80820 | BOLT | 65001- | |
| 5 | 01643-30823 | WASHER | 65001- | |
| 6 | 417-54-41160 | BRACKET | 69297- | |
| 6 | 418-54-31164 | BRACKET | 68108-69296 | |
| 6 | 418-54-31163 | BRACKET | 65001-68107 | |
| 7 | 01010-D0820 | BOLT | 65001- | |
| 8 | 01643-70823 | WASHER | 65001- | |
| 9 | 01010-D0820 | BOLT | 65001- | |
| 10 | 418-54-35450 | WASHER | 65001- | |
| 11 | 418-54-31970 | SPACER | 65001- | |
| 12 | 418-54-31172 | HINGE | 65001- | |
| 13 | 01010-81020 | BOLT | 65001- | |
| 14 | 01643-31032 | WASHER | 65001- | |
| 15 | 416-54-33170 | LOCK ASS'Y | 69297- | |
| 15 | 417-54-21562 | LOCK ASS'Y | 65278-69296 | |
| 15 | 417-54-21561 | LOCK ASS'Y | 65001-65277 | |
| 16 | 01010-80816 | BOLT | 65001- | |
| 17 | 01643-30823 | WASHER | 65001- | |
| 18 | 419-54-31140 | GAS SPRING | 65001- | |
| 19 | 01640-20816 | WASHER | 65001- | |
| 20 | 04050-12015 | PIN | 65001- | |
| 21 | 417-06-32660 | WIRING HARNESS | 65001- | |
| 22 | 01010-81020 | BOLT | 65001- | |
| 23 | 01643-31032 | WASHER | 65001- | |
| 24 | 04434-51012 | CLIP | 65001- | |
| 25 | 418-06-32312 | WIRING HARNESS | 65001- | |
| 26 | 04434-51010 | CLIP | 65001- | |
| 27 | 04434-50810 | CLIP | 65001- | |
| 28 | 417-06-32610 | CLIP | 65001- | |
| 29 | 01010-80816 | BOLT | 65001- | |
| 30 | 01643-30823 | WASHER | 65001- | |
| 31 | 421-06-23350 | LAMP ASS'Y | 65001- | |
| 31 | 421-06-23320 | LENS | 65001- | |
| 31 | 421-06-23330 | BULB, 70W | 65001- | |
| 32 | 416-06-31410 | BUZZER | 69039- | |
| 32 | 08164-C0000 | BUZZER | 65117-69038 | |
| 32 | 14X-06-31520 | ALARM | 65001-65116 | |
| 33 | 01435-00895 | BOLT | 65001- | |
| 34 | 418-54-31980 | BRACKET | 65001- | |
| 35 | 01010-80816 | BOLT | 65001- | |
| 36 | 01643-30823 | WASHER | 65001- |
