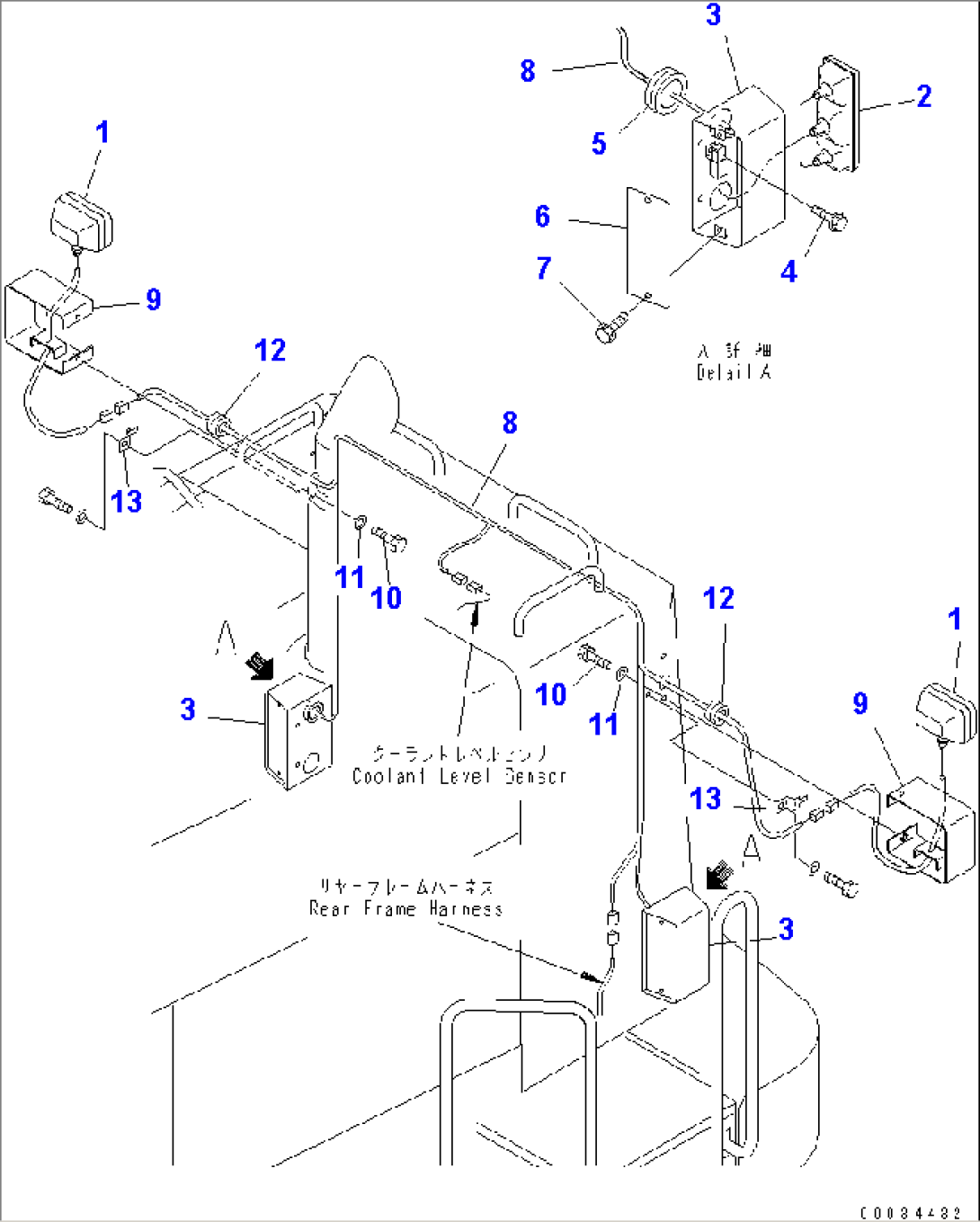

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-23310 | LAMP ASS'Y,WORK | 52001- | |
| 1 | 421-06-23340 | LENS | 52001- | |
| 1 | 421-06-23330 | BULB, 70W | 52001- | |
| 1 | 01582-11411 | NUT | 52001- | |
| 1 | 01602-21442 | WASHER,SPRING | 52001- | |
| 1 | 01643-31445 | WASHER | 52001- | |
| 2 | 421-06-23210 | LAMP ASS'Y,COMBINATION | 52001- | |
| 2 | 421-06-23220 | LENS | 52001- | |
| 2 | 08104-12420 | BULB, 25/10W | 52001- | |
| 2 | 08105-12420 | BULB, 25W | 52001- | |
| 2 | 01220-40535 | SCREW | 52001- | |
| 2 | 42A-06-13160 | NUT | 52001- | |
| 3 | 426-06-23130 | BRACKET | 52001- | |
| 4 | 01435-01020 | BOLT | 52001- | |
| 5 | 08037-03614 | GROMMET | 52001- | |
| 6 | 428-06-22250 | PLATE | 52001- | |
| 7 | 01435-01016 | BOLT | 52001- | |
| 8 | 426-06-22650 | WIRING HARNESS | 52001- | |
| 9 | 427-06-13170 | BRACKET | 52001- | |
| 10 | 01010-81225 | BOLT | 52001- | |
| 11 | 01643-31232 | WASHER | 52001- | |
| 12 | 08037-03614 | GROMMET | 52001- | |
| 13 | 08053-01512 | CLIP | 52001- |
