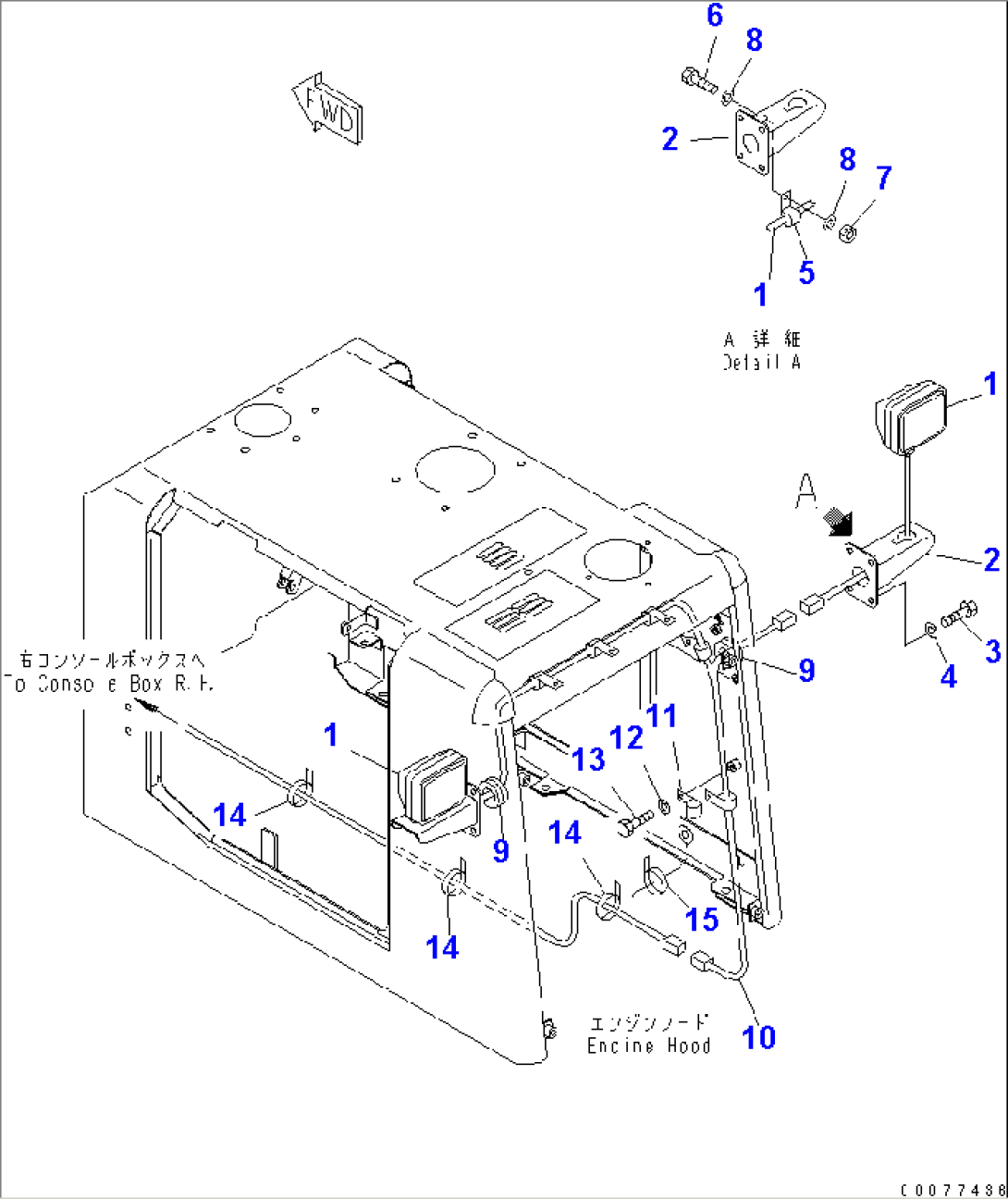

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-23350 | LAMP ASS'Y | 12001- | |
| 1 | 421-06-23320 | LENS | 12001- | |
| 1 | 421-06-23330 | BULB, 70W | 12001- | |
| 2 | 415-06-23161 | BRACKET | 12001- | |
| 3 | 01010-81025 | BOLT | 12001- | |
| 4 | 01643-31032 | WASHER | 12001- | |
| 5 | 04434-50610 | CLIP | 12001- | |
| 6 | 01010-81025 | BOLT | 12001- | |
| 7 | 01580-01008 | NUT | 12001- | |
| 8 | 01643-31032 | WASHER | 12001- | |
| 9 | 08037-03614 | GROMMET | 12001- | |
| 10 | 415-06-22320 | WIRING HARNESS | 12001- | |
| 11 | 04434-51010 | CLIP | 12001- | |
| 12 | 01010-81016 | BOLT | 12001- | |
| 13 | 01643-31032 | WASHER | 12001- | |
| 14 | 08034-00834 | BAND | 12001- | |
| 15 | 08034-20519 | BAND | 12001- |
