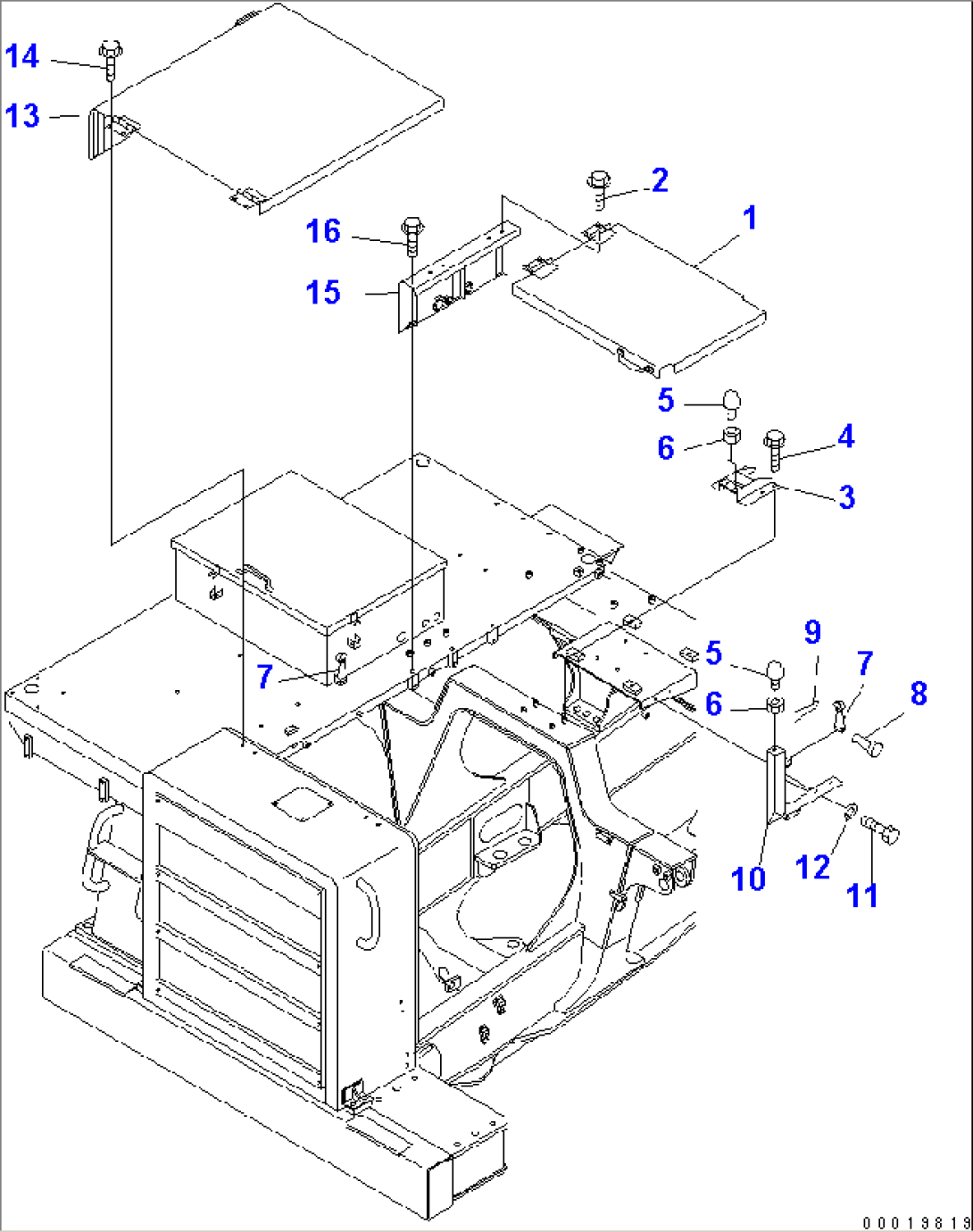

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-54-71222 | HOOD,REAR | 1601- | |
| 2 | 01435-01020 | BOLT | 1001- | |
| 3 | 567-54-71240 | BRACKET | 1001- | |
| 4 | 01435-01020 | BOLT | 1001- | |
| 5 | 09453-00002 | STOPPER | 1001- | |
| 6 | 01580-11210 | NUT | 1001- | |
| 7 | 09450-00000 | CATCH | 1001- | |
| 8 | 09450-00002 | PIN | 1001- | |
| 9 | 04050-11610 | PIN,COTTER | 1001- | |
| 10 | 567-54-71251 | BRACKET | 1601- | |
| 11 | 01010-81230 | BOLT | 1601- | |
| 12 | 01643-31232 | WASHER | 1601- | |
| 13 | 567-54-71211 | HOOD,FRONT | 1601- | |
| 14 | 01435-01020 | BOLT | 1001- | |
| 15 | 567-54-71231 | BRACKET | 1001- | |
| 16 | 01435-01220 | BOLT | 1001- |
