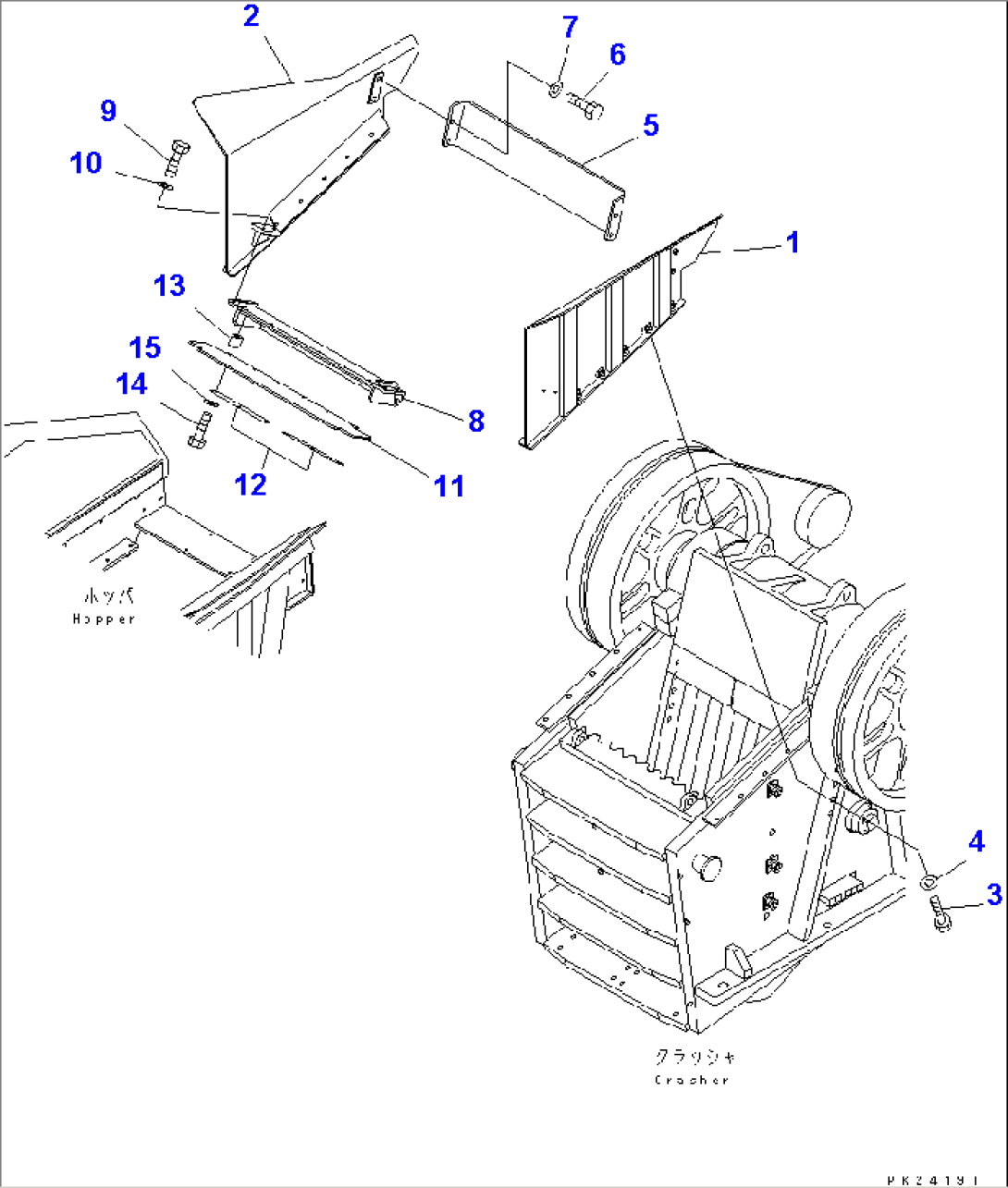

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8248-70-1511 | GUARD | 1002-1200 | |
| 2 | 8248-70-1521 | GUARD | 1002-1200 | |
| 3 | 01010-52260 | BOLT | 1002-1200 | |
| 4 | 01643-32260 | WASHER | 1002-1200 | |
| 5 | 8248-70-1560 | PLATE | 1002-@ | |
| 6 | 01010-52060 | BOLT | 1002-@ | |
| 7 | 01643-32060 | WASHER | 1002-@ | |
| 8 | 8248-70-1530 | GUARD | 1002-1200 | |
| 9 | 01010-52050 | BOLT | 1002-@ | |
| 10 | 01643-32060 | WASHER | 1002-@ | |
| 11 | 8248-70-1541 | PLATE | 1002-1200 | |
| 12 | 8242-70-1550 | PLATE | 1002-1200 | |
| 13 | 567-54-11610 | SPACER | 1002-1200 | |
| 14 | 01010-51030 | BOLT | 1002-1200 | |
| 15 | 01643-31032 | WASHER | 1002-1200 |
