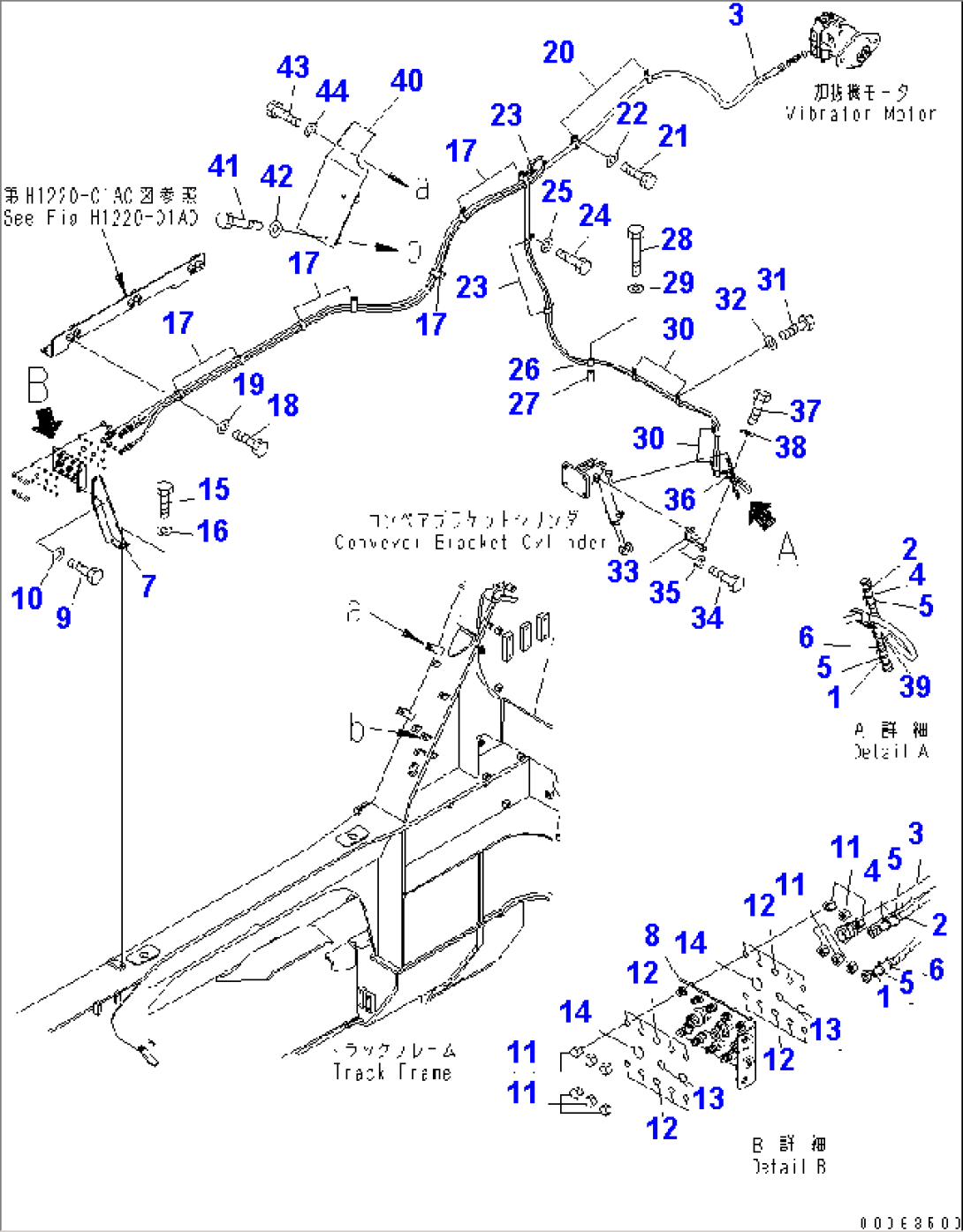

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02765-00259 | HOSE | 1001- | |
| 2 | 02765-00262 | HOSE | 1001- | |
| 3 | 02765-00548 | HOSE | 1001- | |
| 4 | 20Y-62-22790 | BAND, RED | 1001- | |
| 5 | 20Y-62-22810 | BAND, YELLOW | 1001- | |
| 6 | 20Y-62-22840 | BAND, BLACK | 1001- | |
| 7 | 8234-62-1621 | BRACKET | 1001- | |
| 8 | 8234-62-1630 | JOINT | 1001- | |
| 9 | 01010-81225 | BOLT | 1001- | |
| 10 | 01643-31232 | WASHER | 1001- | |
| 11 | 02789-00210 | PLUG | 1001- | |
| 12 | 02896-11008 | O-RING | 1001- | |
| 13 | 02896-11012 | O-RING | 1001- | |
| 14 | 02896-11015 | O-RING | 1001- | |
| 15 | 01010-81225 | BOLT | 1001- | |
| 16 | 01643-31232 | WASHER | 1001- | |
| 17 | 208-06-19170 | CLIP | 1001- | |
| 18 | 01010-81225 | BOLT | 1001- | |
| 19 | 01643-31232 | WASHER | 1001- | |
| 20 | 04434-52712 | CLIP | 1001- | |
| 21 | 01010-81225 | BOLT | 1001- | |
| 22 | 01643-31232 | WASHER | 1001- | |
| 23 | 04435-51512 | CLIP | 1001- | |
| 24 | 01010-81225 | BOLT | 1001- | |
| 25 | 01643-31232 | WASHER | 1001- | |
| 26 | 04435-51512 | CLIP | 1001- | |
| 27 | 175-61-17240 | COLLAR | 1001- | |
| 28 | 01010-81285 | BOLT | 1001- | |
| 29 | 01643-31232 | WASHER | 1001- | |
| 30 | 04435-51512 | CLIP | 1001- | |
| 31 | 01010-81225 | BOLT | 1001- | |
| 32 | 01643-31232 | WASHER | 1001- | |
| 33 | 198-61-44320 | BRACKET | 1001- | |
| 34 | 01010-81230 | BOLT | 1001- | |
| 35 | 01643-31232 | WASHER | 1001- | |
| 36 | 04435-51512 | CLIP | 1001- | |
| 37 | 01010-81230 | BOLT | 1001- | |
| 38 | 01643-31232 | WASHER | 1001- | |
| 39 | 08034-20519 | BAND | 1001- | |
| 40 | 8234-62-1761 | COVER | 1001- | |
| 41 | 01011-81225 | BOLT | 1001- | |
| 42 | 01643-31232 | WASHER | 1001- | |
| 43 | 01010-81230 | BOLT | 1001- | |
| 44 | 01643-31232 | WASHER | 1001- |
