| Item | Part No. | Part Name | Qty | Serial No. |

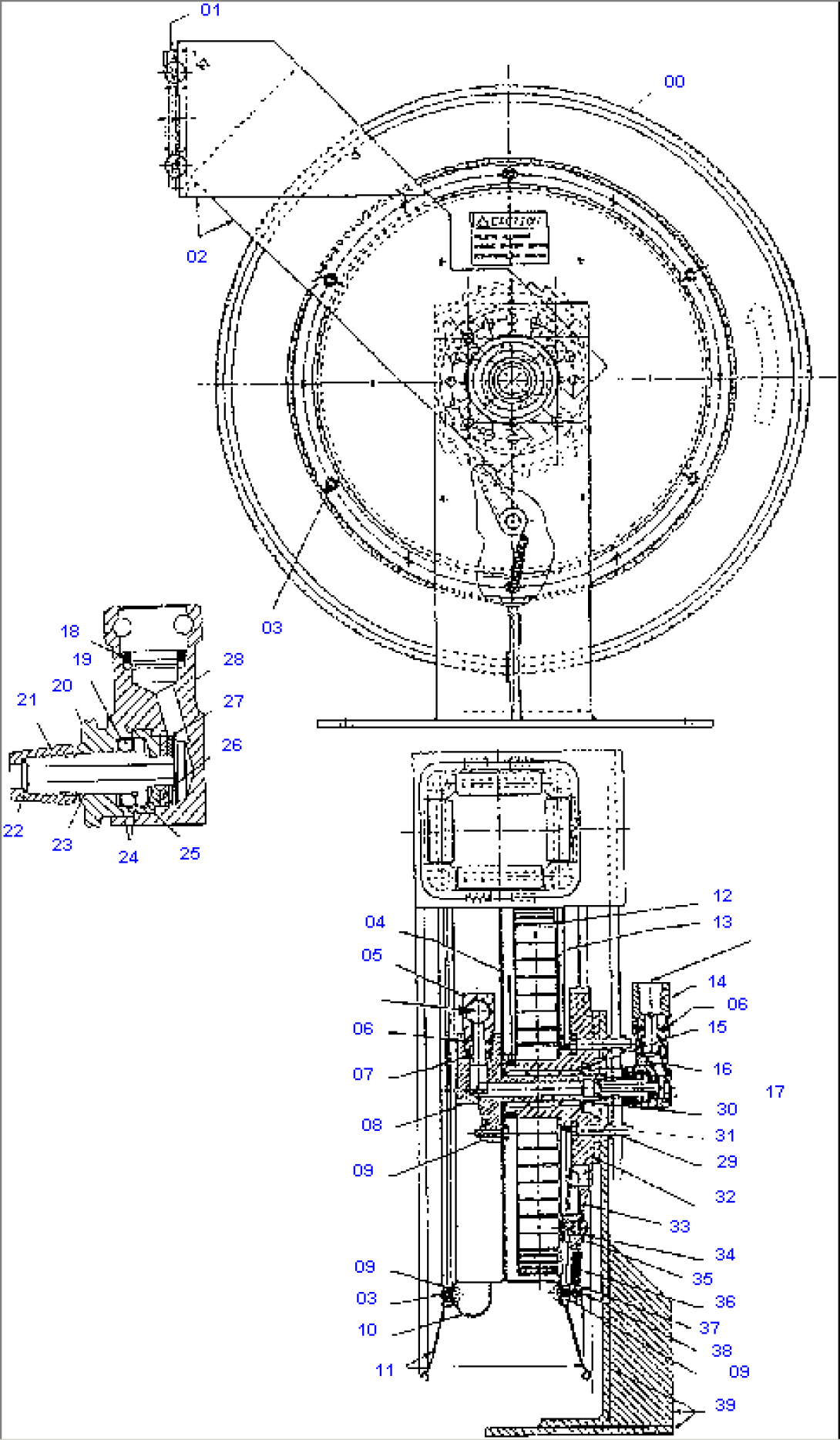

| 00 | 694 568 | Hose reel fig-nos. 01-39 | ||
| 01 | 765 656 73 | Hose guide | ||
| 02 | 765 657 73 | Hose guiding arm | ||
| 03 | 765 658 73 | Bolt | ||
| 04 | 765 659 73 | Packing | ||
| 05 | 765 660 73 | Adapter | ||
| 06 | 698 097 73 | Lock | ||
| 07 | 765 661 73 | V-seal | ||
| 08 | 765 662 73 | Axle | ||
| 09 | 698 104 73 | Nut | ||
| 10 | 765 663 73 | Clamp | ||
| 11 | 765 664 73 | Drum | ||
| 12 | 765 665 73 | Spring package | ||
| 13 | 765 666 73 | Packing | ||
| 14 | 765 667 73 | Adapter | ||
| 15 | 695 192 73 | Washer | ||
| 16 | 695 197 73 | Washer | ||
| 17 | 765 556 73 | Knuckle fig-nos. 18-28 | ||
| 18 | 765 661 73 | V-seal | ||
| 19 | 695 436 73 | Ball | ||
| 20 | 765 668 73 | Nut | ||
| 21 | 765 669 73 | Adapter | ||
| 22 | 765 670 73 | Seal | ||
| 23 | 765 671 73 | Socket | ||
| 24 | 765 672 73 | Bushing | ||
| 25 | 765 673 73 | Sealing support | ||
| 26 | 765 674 73 | Seal | ||
| 27 | 695 176 73 | Washer | ||
| 28 | 765 675 73 | Body | ||
| 29 | 695 201 73 | Nut | ||
| 30 | 695 193 73 | Circlip | ||
| 31 | 765 676 73 | Pin | ||
| 32 | 765 677 73 | Shaft head | ||
| 33 | 765 678 73 | Safety catch | ||
| 34 | 765 679 73 | Circlip | ||
| 35 | 765 680 73 | Washer | ||
| 36 | 765 681 73 | Spring | ||
| 37 | 697 625 73 | Nut | ||
| 38 | 765 682 73 | Pin | ||
| 39 | 765 683 73 | Console |
