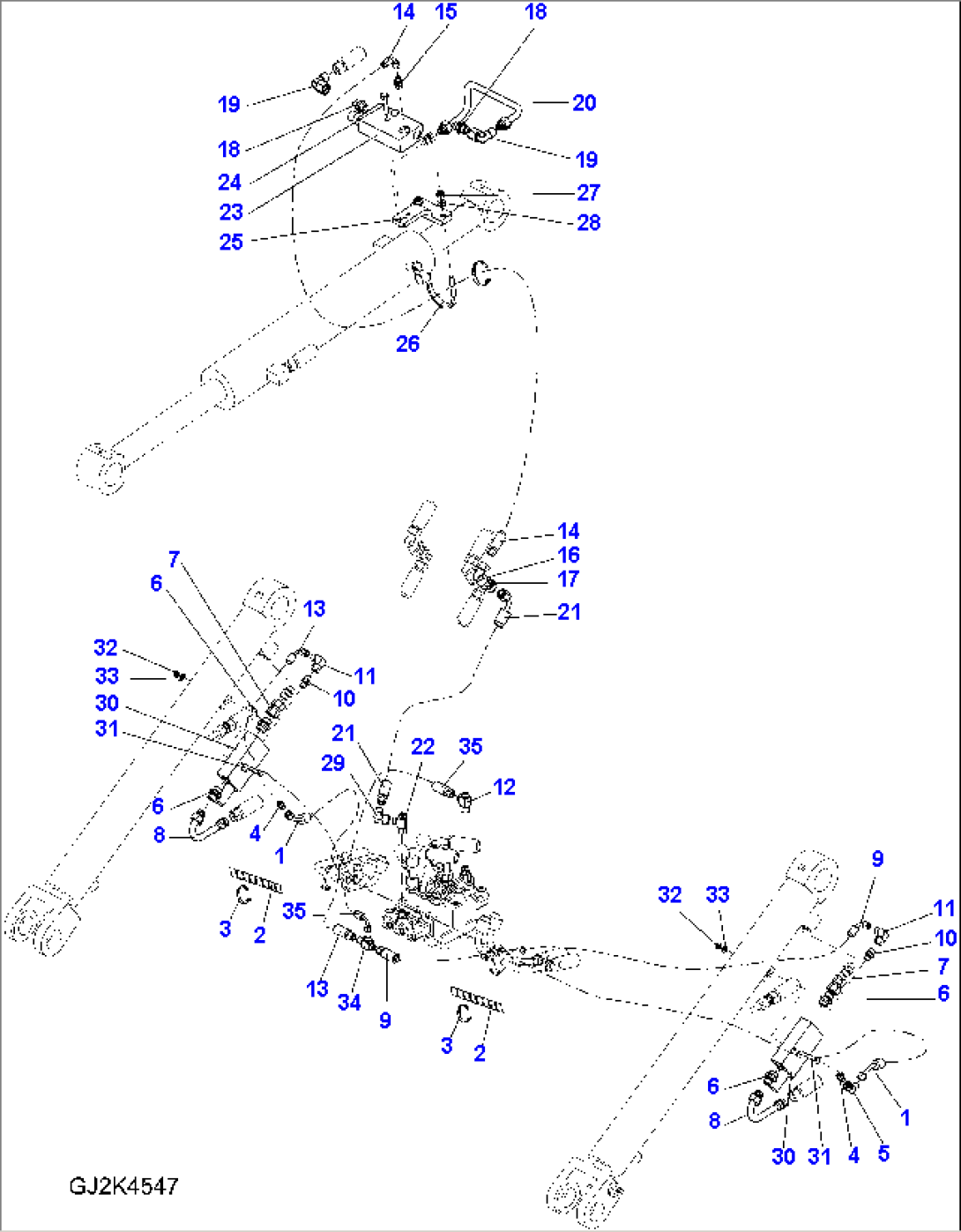

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42W-09-H1980 | HOSE ASSEMBLY | ||
| 2 | 08210-01204 | HOSE PROTECTOR | ||
| 3 | 08034-20519 | BAND | ||
| 4 | 42U-62-23610 | NOZZLE | ||
| 5 | 424-00-H0410 | ELBOW NIPPLE | ||
| 6 | 42Y-00-H1460 | STUD | ||
| 7 | 42Y-09-H4010 | UNION | ||
| 8 | 42W-63-22160 | TUBE | ||
| 9 | 42U-09-H4040 | HOSE ASSEMBLY | ||
| 10 | 42Y-00-H1530 | STUD | ||
| 11 | 421-00-H0230 | ELBOW | ||
| 12 | 421-00-H0480 | UNION | ||
| 13 | 42U-09-H4040 | HOSE ASSEMBLY | ||
| 14 | 42U-09-H4050 | HOSE ASSEMBLY | ||
| 15 | 424-00-H0400 | STUD | ||
| 16 | 42U-09-H4110 | ELBOW NIPPLE | ||
| 17 | 42U-09-H4200 | NUT | ||
| 18 | 42Y-00-H1460 | STUD | ||
| 19 | 424-00-H0420 | ELBOW | ||
| 20 | 42U-62-23640 | TUBE | ||
| 21 | 42U-09-H4090 | HOSE ASSEMBLY | ||
| 22 | 421-00-H0480 | UNION | ||
| 23 | 42U-62-12040 | VALVE | ||
| 24 | 01010-81050 | SCREW | ||
| 25 | 42U-62-28110 | BRACKET | ||
| 26 | 07283-37663 | CLIP | ||
| 27 | 01599-01011 | NUT | ||
| 28 | 01643-31032 | PLAIN WASHER | ||
| 29 | 421-00-H0230 | ELBOW | ||
| 30 | 42W-63-12070 | VALVE | ||
| 31 | 01010-80855 | SCREW | ||
| 32 | 01580-10806 | NUT | ||
| 33 | 01641-20812 | PLAIN WASHER | ||
| 34 | 42T-09-H3140 | TEEPIECE | ||
| 35 | 42U-09-H4080 | HOSE ASSEMBLY |
