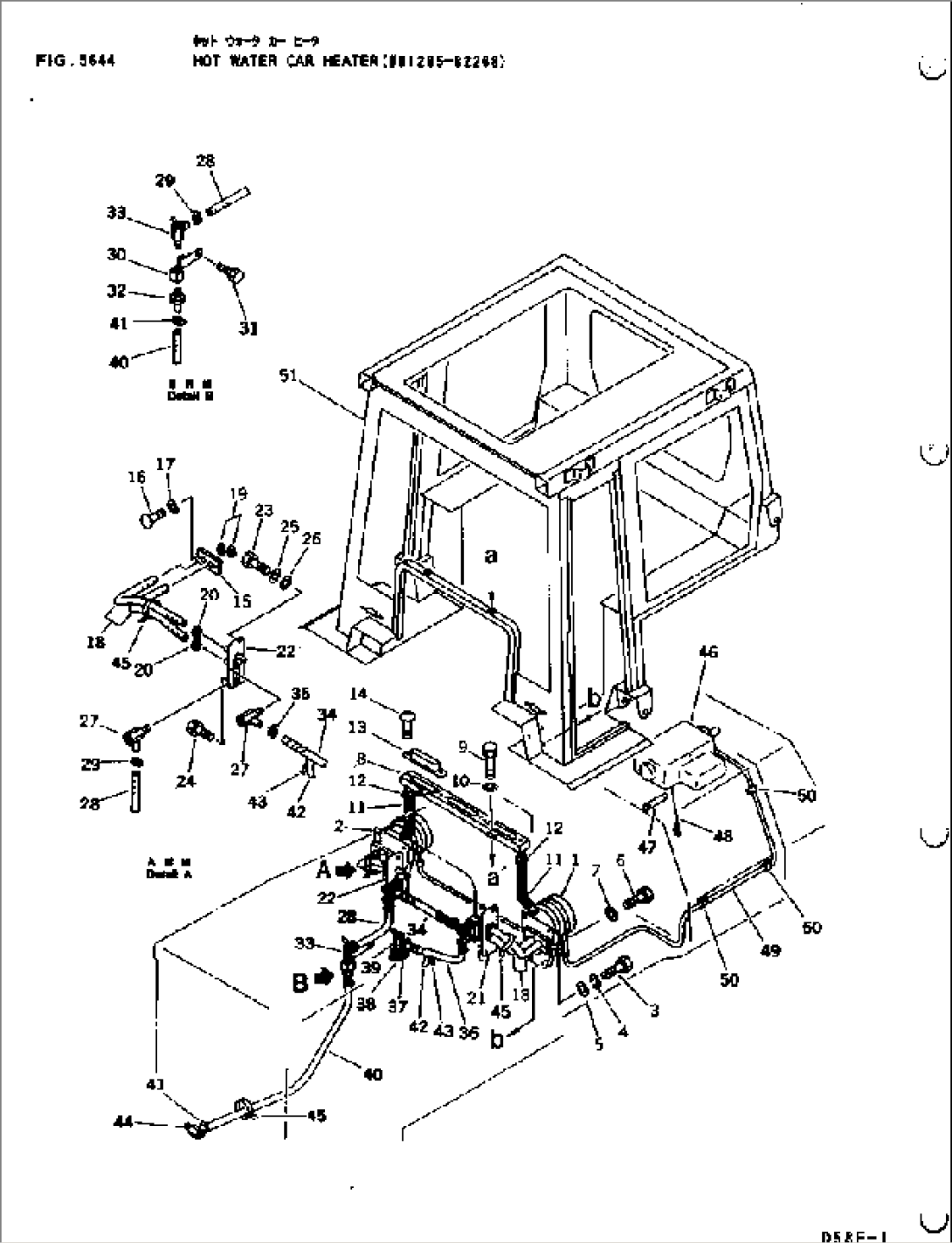

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09480-30000 | HEATER | 81285-82268 | |
| 2 | 120-Y79-5810 | BRACKET | 81285-82268 | |
| 3 | 01010-51225 | BOLT | 81285-82268 | |
| 4 | 01602-21236 | WASHER | 81285-82268 | |
| 5 | 01643-31232 | WASHER | 81285-82268 | |
| 6 | 01010-51665 | BOLT | 81285-82268 | |
| 7 | 01643-31645 | WASHER | 81285-82268 | |
| 8 | 120-Y79-5830 | DUCT | 81285-82268 | |
| 9 | 01010-51020 | BOLT | 81285-82268 | |
| 10 | 01602-21030 | WASHER | 81285-82268 | |
| 11 | 09485-03703 | HOSE | 81285-82268 | |
| 12 | 07281-00419 | CLAMP | 81285-82268 | |
| 13 | 09487-20220 | NOZZLE | 81285-82268 | |
| 14 | 01220-40410 | SCREW | 81285-82268 | |
| 15 | 120-Y79-5820 | SEAL | 81285-82268 | |
| 16 | 01220-40625 | SCREW | 81285-82268 | |
| 17 | 01611-06063 | WASHER | 81285-82268 | |
| 18 | 09483-00504 | HOSE | 81285-82268 | |
| 19 | 09480-10100 | CLAMP | 81285-82268 | |
| 20 | 07281-00259 | CLAMP | 81285-82268 | |
| 21 | 130-Z79-1970 | COVER,L.H. | 81285-82268 | |
| 22 | 130-Z79-1980 | COVER,R.H. | 81285-82268 | |
| 23 | 01010-51240 | BOLT | 81285-82268 | |
| 24 | 01010-51225 | BOLT | 81285-82268 | |
| 25 | 01602-21236 | WASHER | 81285-82268 | |
| 26 | 01643-31232 | WASHER | 81285-82268 | |
| 27 | 567-07-15221 | JOINT | 81285-82268 | |
| 28 | 09483-00504 | HOSE | 81285-82268 | |
| 29 | 07281-00259 | CLAMP | 81285-82268 | |
| 30 | 130-Z79-1960 | BRACKET | 81285-82268 | |
| 31 | 01010-51025 | BOLT | 81285-82268 | |
| 32 | 145-Z79-5610 | JOINT | 81285-82268 | |
| 33 | 09482-10000 | VALVE | 81285-82268 | |
| 34 | 09483-00508 | HOSE | 81285-82268 | |
| 35 | 07281-00259 | CLAMP | 81285-82268 | |
| 36 | 09483-00507 | HOSE | 81285-82268 | |
| 37 | 07281-00259 | CLAMP | 81285-82268 | |
| 38 | 565-44-15380 | ELBOW | 81285-82268 | |
| 39 | 09482-10000 | VALVE | 81285-82268 | |
| 40 | 09483-00524 | HOSE | 81285-82268 | |
| 41 | 07281-00259 | CLAMP | 81285-82268 | |
| 42 | 09489-01030 | INSULATOR | 81285-82268 | |
| 43 | 08024-01910 | TAPE | 81285-82268 | |
| 44 | 130-Z79-1790 | CONNECTOR | 81285-82268 | |
| 45 | 08034-00834 | BAND | 81285-82268 | |
| 46 | 09481-02400 | SWITCH | 81285-82268 | |
| 47 | 08040-01000 | FUSE, 10A | 81285-82268 | |
| 48 | 120-Y79-5840 | WIRE ASS'Y | 81285-82268 | |
| 49 | 120-Y79-5850 | WIRE | 81285-82268 | |
| 50 | 08036-40810 | CLIP | 81285-82268 | |
| 51 | 120-Y79-5860 | CAB,(MODIFIED PARTS) | 81285-82268 |
