| Item | Part No. | Part Name | Qty | Serial No. |

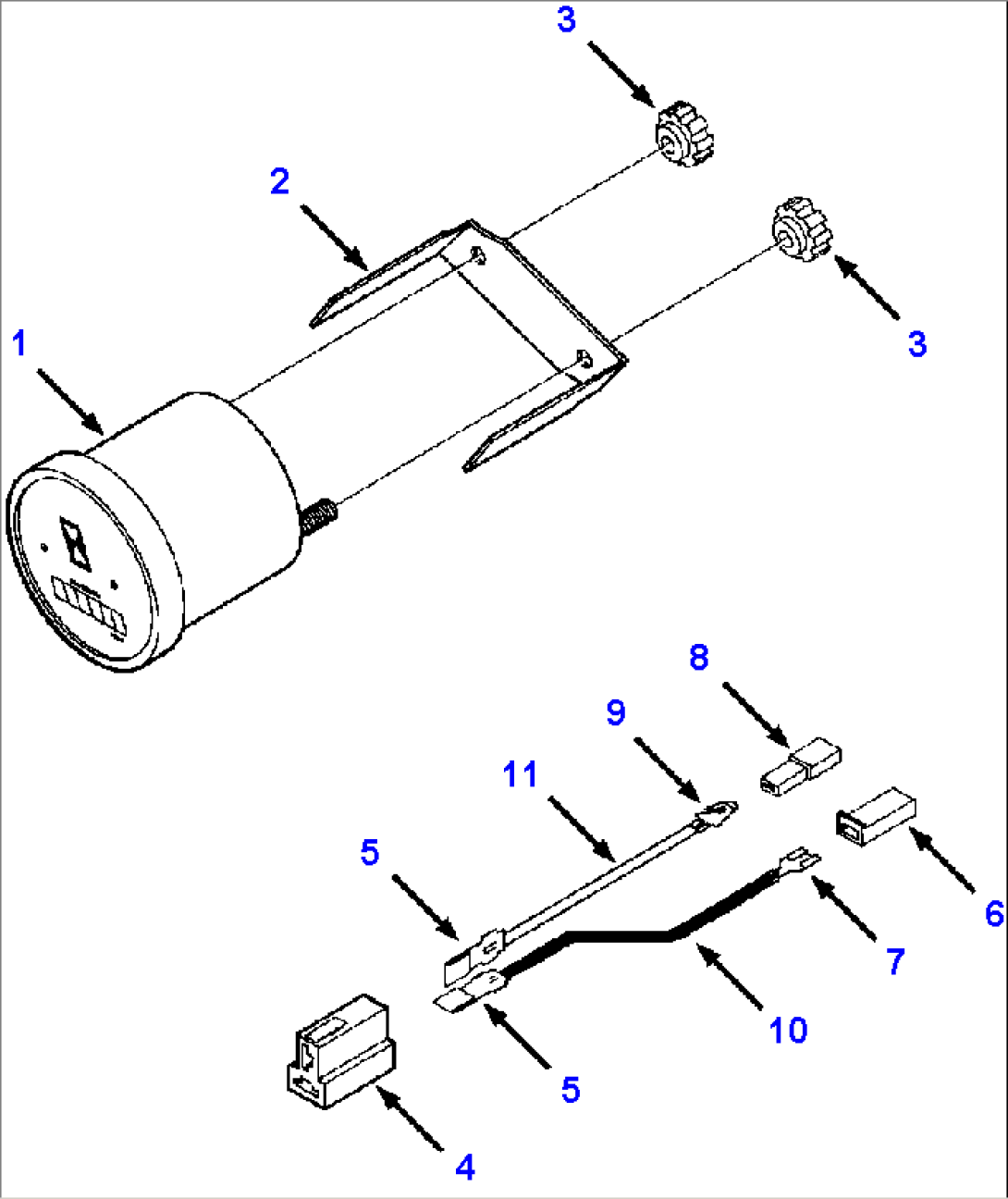

| 1277 789 H91 | HOURMETER | |||
| 1220 651 H2 | HOURMETER ASSY | |||
| 1 | (NSS) | HOURMETER | ||
| 2 | (NSS) | BRACKET, MOUNTING | ||
| 3 | (NSS) | NUT, PLASTIC - M6 | ||
| 1277 828 H91 | CABLE ASSY, HOURMETER | |||
| 4 | 1280 037 H1 | CONNECTOR, TWO TERMINAL | ||
| 5 | 1280 038 H1 | TERMINAL, CONNECTOR | ||
| 6 | 631 801 C1 | CONNECTOR, BLACK WIRE | ||
| 7 | 631 019 C1 | TERMINAL, CONNECTOR | ||
| 8 | 739 070 C1 | CONNECTOR, RED WIRE | ||
| 9 | 1120 922 C1 | TERMINAL, CONNECTOR | ||
| 10 | (NSS) | WIRE, BLACK - #14 CABLE 5 IN LONG | ||
| 11 | (NSS) | WIRE, RED - #14 CABLE 5 IN LONG |
