| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (154-22-21002) | STEERING ASS'Y | (101790)- | ||
| (154-22-21001) | STEERING ASS'Y | 10307-(101789) | ||
| (154-22-21000) | STEERING ASS'Y | 10001-10306 | ||
| THESE ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2300-51A0 TO F2300-58A0, | ||||
| (154-22-21021) | STEERING ASS'Y,HEATER | 10307- | ||
| (154-22-21020) | STEERING ASS'Y,HEATER | 10001-10306 | ||
| THESE ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2300-51A0 TO F2300-58A0, | ||||

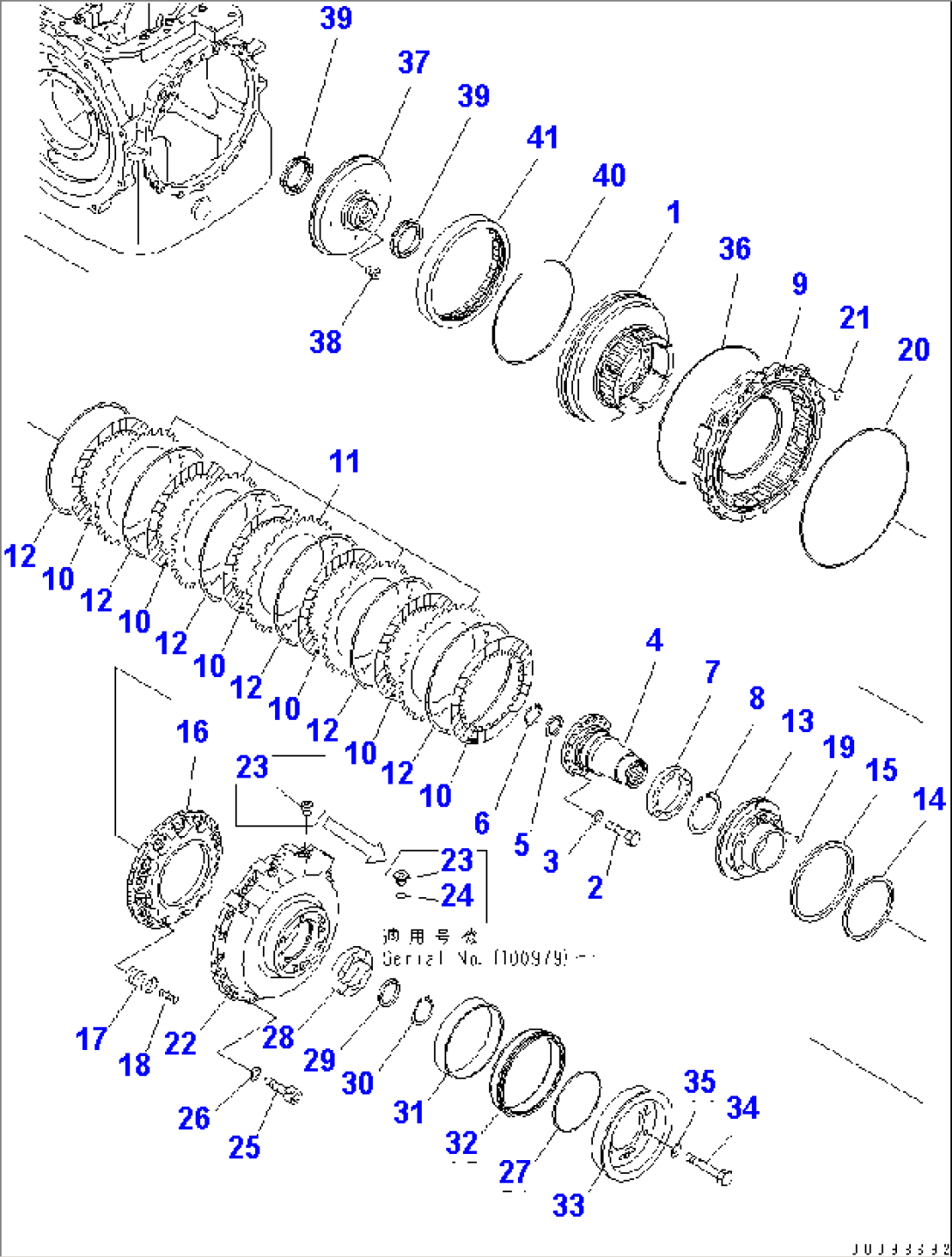

| 154-22-00020 | BRAKE ASS'Y | 10001- | ||
| 1 | 14Y-22-23121 | HUB | (100494)- | |
| 1 | 14Y-22-23120 | HUB | 10001-(100493) | |
| 2 | 01010-81030 | BOLT | (100464)- | |
| 2 | 01010-81030 | BOLT | 10001-(100493) | |
| 3 | 01643-31032 | WASHER | (100494)- | |
| 3 | 01643-31032 | WASHER | 10001-(100493) | |
| 4 | 14Y-22-24111 | HUB | (100494)- | |
| 4 | 14Y-22-24110 | HUB | 10001-(100493) | |
| 5 | 14Y-22-24190 | SPACER | 10001- | |
| 6 | 04065-05820 | RING,SNAP | 10001- | |
| 7 | 06030-06921 | BEARING | 10001- | |
| 8 | 04070-00105 | RING,SNAP | 10001- | |
| 9 | 14Y-22-23110 | DRUM | 10001- | |
| 10 | 14Y-22-23140 | DISC | 10001- | |
| 11 | 154-22-23150 | PLATE | 10001- | |
| 12 | 14Y-22-23160 | SPRING | 10001- | |
| 13 | 14Y-22-24130 | CAGE | 10001- | |
| 14 | 232-15-19270 | RING | 10001- | |
| 15 | 14Y-22-23310 | SEAL RING | 10001- | |
| 16 | 14Y-22-23130 | PISTON | 10001- | |
| 17 | 14Y-22-23170 | SPRING | 10001- | |
| 18 | 14Y-22-23180 | SPRING | 10001- | |
| 19 | 07000-72018 | O-RING | 10001- | |
| 20 | 07000-75365 | O-RING | (100286)- | |
| 20 | 07000-05370 | O-RING | 10001-(100285) | |
| 21 | 07000-73022 | O-RING | 10001- | |
| 22 | 14Y-22-55120 | COVER | (100988)- | |
| 22 | 14Y-22-25120 | COVER | 10001-(100987) | |
| 23 | 723-11-15110 | PLUG | (100988)- | |
| 23 | 07043-70312 | PLUG | 10001-(100987) | |
| 24 | 07002-61623 | O-RING | (100988)- | |
| 25 | 01252-71250 | BOLT | 10001- | |
| 26 | 01643-31232 | WASHER | 10001- | |
| 27 | 07000-75180 | O-RING | 10001- | |
| 28 | 06030-06215 | BEARING | 10001- | |
| 29 | 17A-15-22191 | SPACER | (101380)- | |
| 29 | 17A-15-22190 | SPACER | 10001-(101379) | |
| 30 | 04064-07525 | RING,SNAP | 10001- | |
| 31 | 14X-21-13130 | BUSHING | 10001- | |
| 32 | 14X-21-13240 | COLLAR | 10001- | |
| 33 | 154-22-22130 | FLANGE | 10001- | |
| 34 | 01011-81205 | BOLT | 10001- | |
| 35 | 01643-31232 | WASHER | 10001- | |
| 36 | 07000-75365 | O-RING | (100286)- | |
| 36 | 07000-05370 | O-RING | 10001-(100285) | |
| 37 | 14Y-22-22290 | GEAR | 10001- | |
| 38 | 02720-40104 | PLUG | 10001- | |
| 39 | 14Y-22-22370 | BUSHING | 10001- | |
| 40 | 14Y-22-22340 | SNAP RING | 10001- | |
| 41 | 14Y-22-22161 | GEAR | (100494)- | |
| 41 | 14Y-22-22160 | GEAR | 10001-(100493) |
