| Item | Part No. | Part Name | Qty | Serial No. |

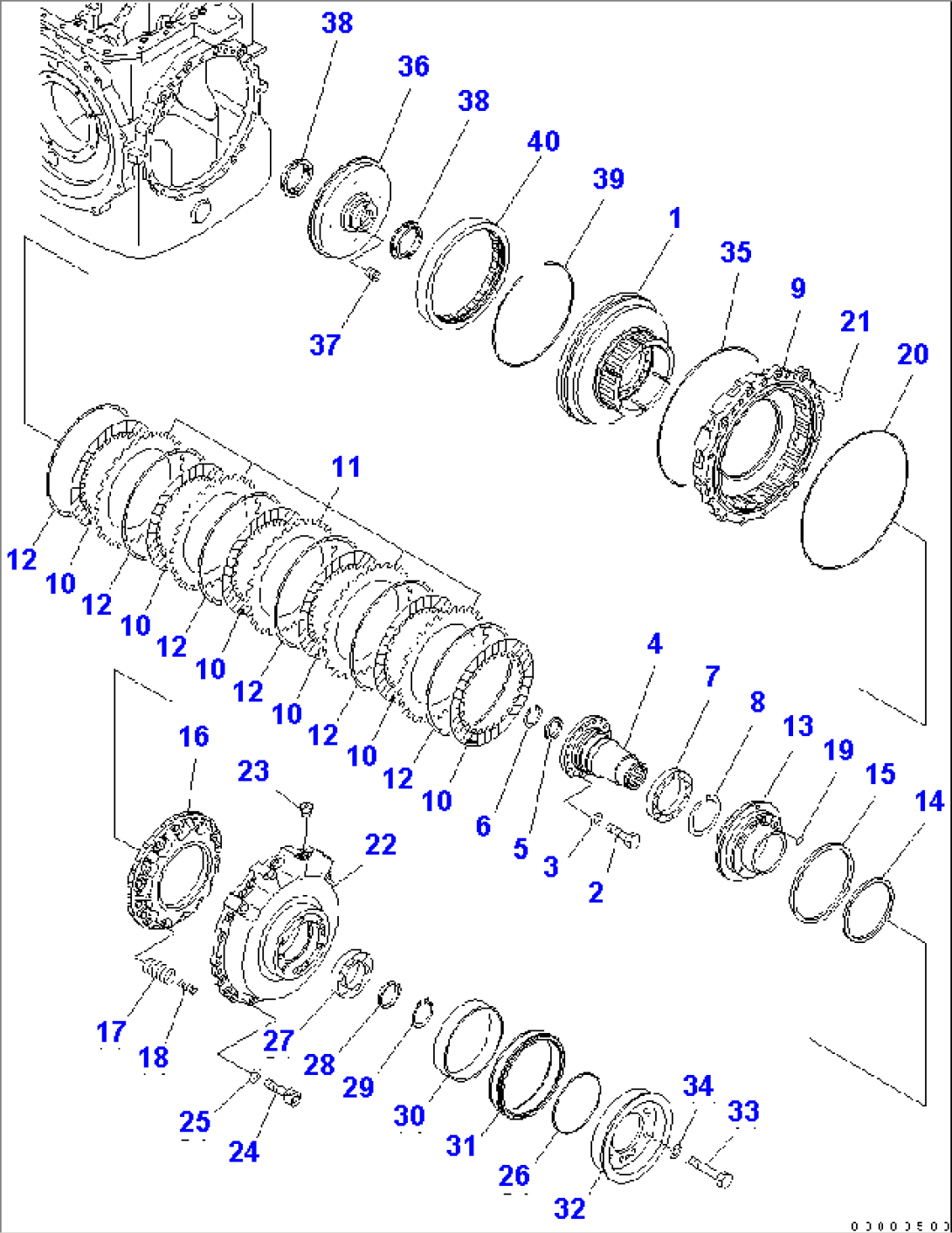

| 154-22-00020 | BRAKE ASS'Y | 1001- | ||
| 1 | 14Y-22-23120 | HUB | 1001- | |
| 2 | 01010-81030 | BOLT | 1001- | |
| 3 | 01643-31032 | WASHER | 1001- | |
| 4 | 14Y-22-24110 | HUB | 1001- | |
| 5 | 14Y-22-24190 | SPACER | 1001- | |
| 6 | 04065-05820 | RING | 1001- | |
| 7 | 06030-06921 | BEARING | 1001- | |
| 8 | 04070-00105 | RING | 1001- | |
| 9 | 14Y-22-23110 | DRUM | 1001- | |
| 10 | 14Y-22-23140 | DISC | 1001- | |
| 11 | 154-22-23150 | PLATE | 1001- | |
| 12 | 14Y-22-23160 | SPRING | 1001- | |
| 13 | 14Y-22-24130 | CAGE | 1001- | |
| 14 | 232-15-19270 | RING | 1001- | |
| 15 | 14Y-22-23310 | SEAL RING | 1001- | |
| 16 | 14Y-22-23130 | PISTON | 1001- | |
| 17 | 14Y-22-23170 | SPRING | 1001- | |
| 18 | 14Y-22-23180 | SPRING | 1001- | |
| 19 | 07000-72018 | O-RING | 1001- | |
| 20 | 07000-05370 | O-RING | 1001- | |
| 21 | 07000-73022 | O-RING | 1001- | |
| 22 | 14Y-22-25120 | COVER | 1001- | |
| 23 | 07043-70312 | PLUG | 1001- | |
| 24 | 01252-71250 | BOLT | 1001- | |
| 25 | 01643-31232 | WASHER | 1001- | |
| 26 | 07000-75180 | O-RING | 1001- | |
| 27 | 06030-06215 | BEARING | 1001- | |
| 28 | 17A-15-22190 | SPACER | 1001- | |
| 29 | 04064-07525 | RING | 1001- | |
| 30 | 14X-21-13130 | BUSHING | 1001- | |
| 31 | 14X-21-13240 | COLLAR | 1001- | |
| 32 | 154-22-22130 | FLANGE | 1001- | |
| 33 | 01011-81205 | BOLT | 1001- | |
| 34 | 01643-31232 | WASHER | 1001- | |
| 35 | 07000-05370 | O-RING | 1001- | |
| 36 | 14Y-22-22290 | GEAR | 1001- | |
| 37 | 02720-40104 | PLUG | 1001- | |
| 38 | 14Y-22-22370 | BUSHING | 1001- | |
| 39 | 14Y-22-22340 | SNAP RING | 1001- | |
| 40 | 14Y-22-22160 | GEAR | 1001- |
