| Item | Part No. | Part Name | Qty | Serial No. |
| 708-7F-00040 | MOTOR ASS'Y | 11001- | ||

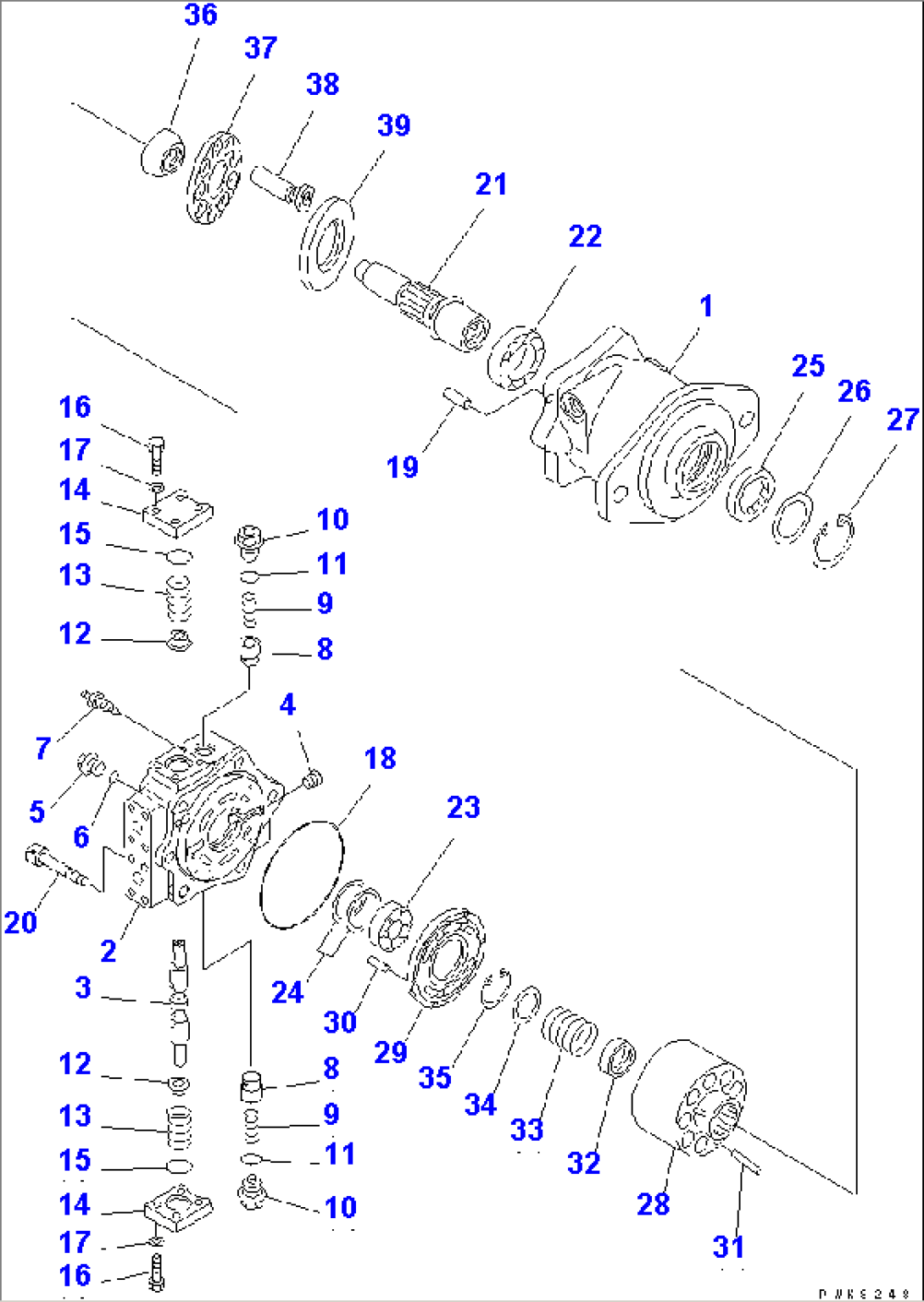

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1642-01A0 AND Y1642-02A0. | ||||
| 1 | (\7\708-7F-11130) | CASE | 11001- | |
| (\7\708-7L-04170) | COVER SUB ASS'Y,END | 11001- | ||
| 2 | \6\ | COVER,END | 11001- | |
| 3 | \6\ | SPOOL | 11001- | |
| 4 | \6\ | PLUG | 11001- | |
| 5 | (\7\708-8K-16280) | PLUG | 11001- | |
| 6 | (\7\07002-11623) | O-RING | 11001- | |
| 7 | 20B-27-11210 | BLEEDER | 11001- | |
| 8 | (\7\708-7L-16520) | VALVE | 11001- | |
| 9 | (\7\708-7L-16510) | SPRING | 11001- | |
| 10 | (\7\708-8F-16170) | PLUG | 11001- | |
| 11 | (\7\07002-12434) | O-RING | 11001- | |
| 12 | 708-7L-16211 | RETAINER | 11001- | |
| 13 | 708-7L-16220 | SPRING | 11001- | |
| 14 | 708-7L-16311 | COVER | 11001- | |
| 15 | 07000-13035 | O-RING | 11001- | |
| 16 | 01010-81035 | BOLT | 11001- | |
| 17 | 01643-51032 | WASHER | 11001- | |
| 18 | (\7\07000-12145) | O-RING | 11001- | |
| 19 | (\7\04020-01228) | PIN | 11001- | |
| 20 | (\7\01252-61480) | BOLT | 11001- | |
| 21 | (\7\708-7L-12111) | SHAFT | 11001- | |
| 22 | (\7\708-8F-12151) | BEARING | 11001- | |
| 23 | (\7\708-7L-12140) | BEARING | 11001- | |
| 24 | (\7\708-7L-05010) | SPACER KIT | 11001- | |
| 24 | \6\ | SPACER, 1.5MM | 11001- | |
| 24 | \6\ | SPACER, 1.6MM | 11001- | |
| 24 | \6\ | SPACER, 1.7MM | 11001- | |
| 24 | \6\ | SPACER, 1.8MM | 11001- | |
| 24 | \6\ | SPACER, 1.9MM | 11001- | |
| 24 | \6\ | SPACER, 2.0MM | 11001- | |
| 25 | (\7\706-7G-11291) | SEAL,OIL | 11001- | |
| 26 | (\7\708-8F-12230) | SPACER, 3.2MM | 11001- | |
| 27 | (\7\04065-07225) | RING | 11001- | |
| 28 | (\7\708-7L-13111) | BLOCK,CYLINDER | 11001- | |
| 29 | (\7\708-7L-13220) | PLATE,VALVE | 11001- | |
| 30 | (\7\720-68-19610) | PIN | 11001- | |
| 31 | (\7\708-2L-23360) | PIN | 11001- | |
| 32 | (\7\708-2L-23131) | SEAT | 11001- | |
| 33 | (\7\708-7L-13160) | SPRING | 11001- | |
| 34 | (\7\708-7L-13140) | SEAT | 11001- | |
| 35 | (\7\04065-04818) | RING | 11001- | |
| 36 | (\7\708-2L-23351) | GUIDE,RETAINER | 11001- | |
| 37 | (\7\708-2L-33350) | RETAINER,SHOE | 11001- | |
| 38 | (\7\708-8F-33310) | PISTON SUB ASS'Y | 11001- | |
| 39 | (\7\708-7F-13420) | PLATE,THRUST | 11001- |
