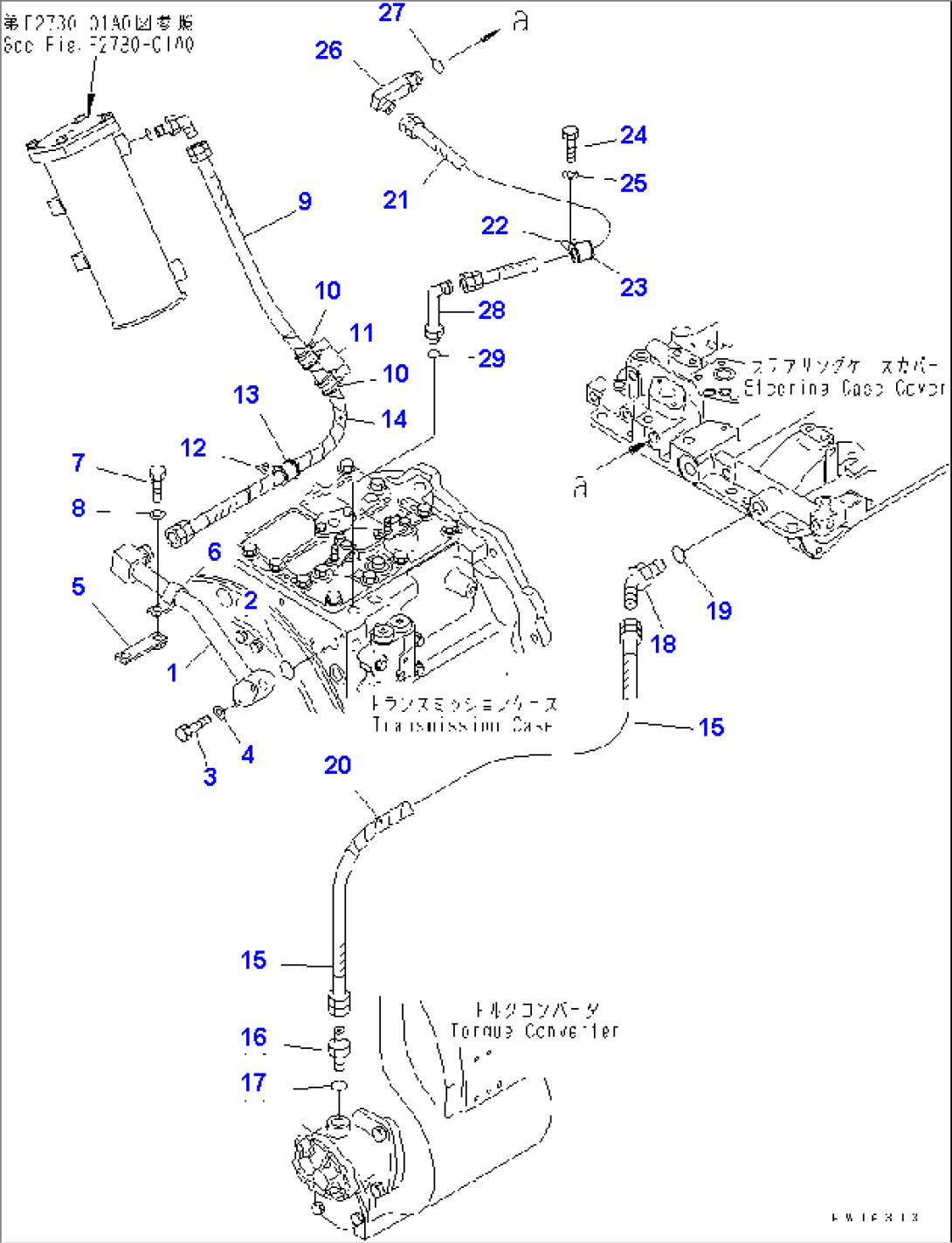

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-49-61711 | TUBE | B3001- | |
| 2 | 07000-73028 | O-RING | B3001- | |
| 3 | 01010-81060 | BOLT | B3001- | |
| 4 | 01643-31032 | WASHER | B3001- | |
| 5 | 14X-49-11430 | PLATE | B3001- | |
| 6 | 112-62-32150 | CLAMP | B3001- | |
| 7 | 01010-81025 | BOLT | B3001- | |
| 8 | 01643-31032 | WASHER | B3001- | |
| 9 | 07102-20610 | HOSE | B3001- | |
| 10 | 07095-20627 | CUSHION | B3001- | |
| 11 | 08034-20536 | BAND | B3001- | |
| 12 | 04434-53412 | CLIP | B3001- | |
| 13 | 07095-20627 | CUSHION | B3001- | |
| 14 | 08210-02902 | SPIRAL TUBE | B3001- | |
| 15 | 07102-20611 | HOSE | B3001- | |
| 16 | 07230-20628 | UNION | B3001- | |
| 17 | 07002-22434 | O-RING | B3001- | |
| 18 | 07236-10628 | ELBOW | B3001- | |
| 19 | 07002-32434 | O-RING | B3001- | |
| 20 | 08210-02908 | SPIRAL TUBE | B3001- | |
| 21 | 07102-20405 | HOSE | B3001- | |
| 22 | 04434-52712 | CLIP | B3001- | |
| 23 | 07095-20420 | CUSHION | B3001- | |
| 24 | 01010-81225 | BOLT | B3001- | |
| 25 | 01643-31232 | WASHER | B3001- | |
| 26 | 20R-62-21510 | ELBOW | B3001- | |
| 27 | 07002-22034 | O-RING | B3001- | |
| 28 | 20U-62-11460 | ELBOW | B3001- | |
| 29 | 07002-22034 | O-RING | B3001- |
