| Item | Part No. | Part Name | Qty | Serial No. |
| 708-1L-00120 | PUMP ASS'Y | 1001- | ||

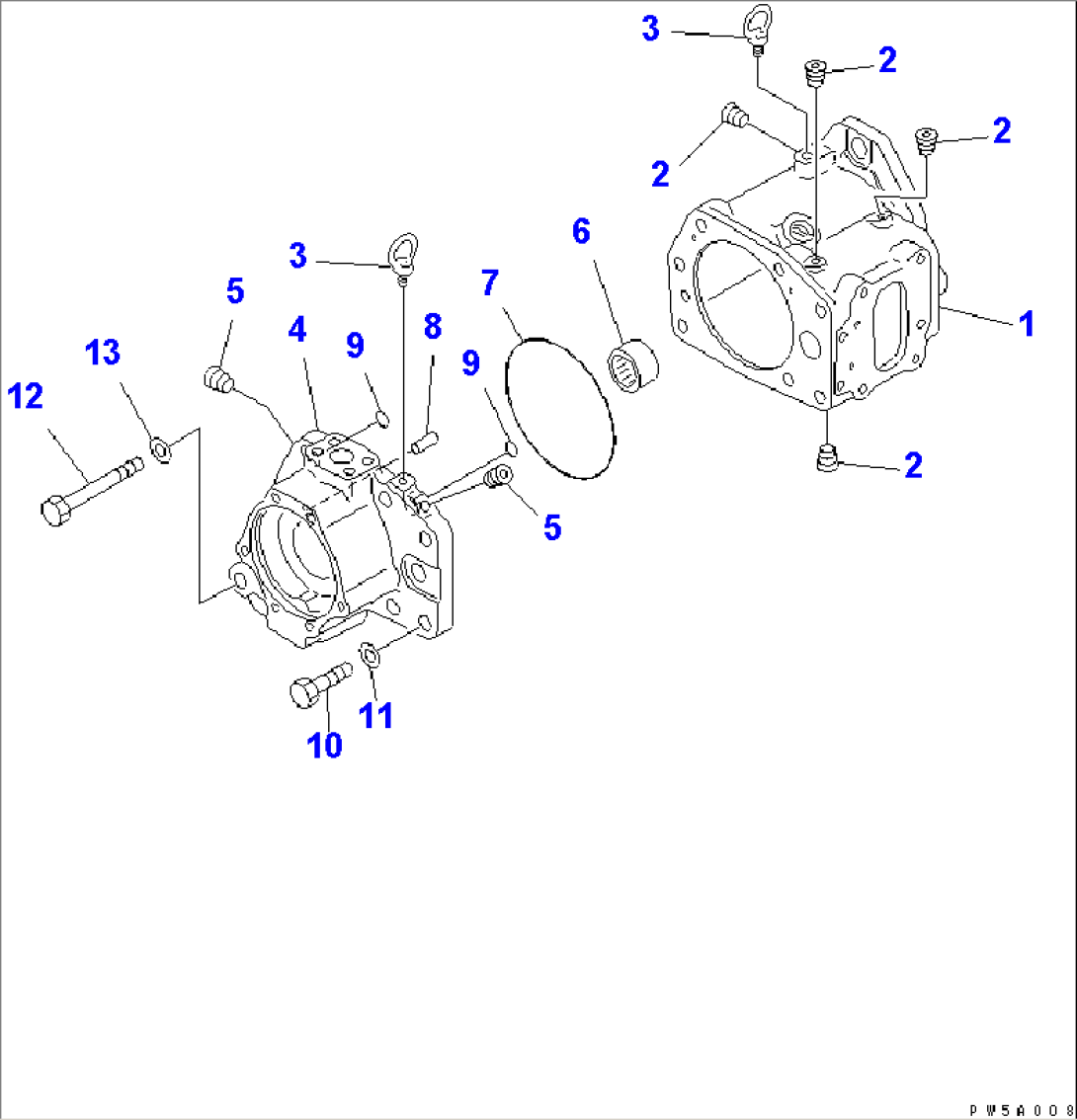

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-05A0. | ||||
| \6\ | PUMP SUB ASS'Y | 1001- | ||
| 708-1L-04010 | CASE ASS'Y | 1001- | ||
| 1 | \6\ | CASE,PUMP | 1001- | |
| 2 | \6\ | PLUG | 1001- | |
| 3 | 04530-11018 | BOLT,EYE | 1001- | |
| (\7\708-1L-04020) | END CAP ASS'Y | 1001- | ||
| 4 | \6\ | CAP,END | 1001- | |
| 5 | \6\ | PLUG | 1001- | |
| 6 | (\7\708-2L-32260) | BEARING | 1001- | |
| 7 | (\7\07000-15155) | O-RING | 1001- | |
| 8 | (\7\04020-01228) | PIN | 1001- | |
| 9 | (\7\07000-B2012) | O-RING | 1001- | |
| 10 | (\7\01010-61450) | BOLT | 1001- | |
| 11 | (\7\01643-31445) | WASHER | 1001- | |
| 12 | (\7\01011-61425) | BOLT | 1001- | |
| 13 | (\7\01643-31445) | WASHER | 1001- |
