| Item | Part No. | Part Name | Qty | Serial No. |
| 708-1H-00231 | PUMP ASS'Y | 1201- | ||

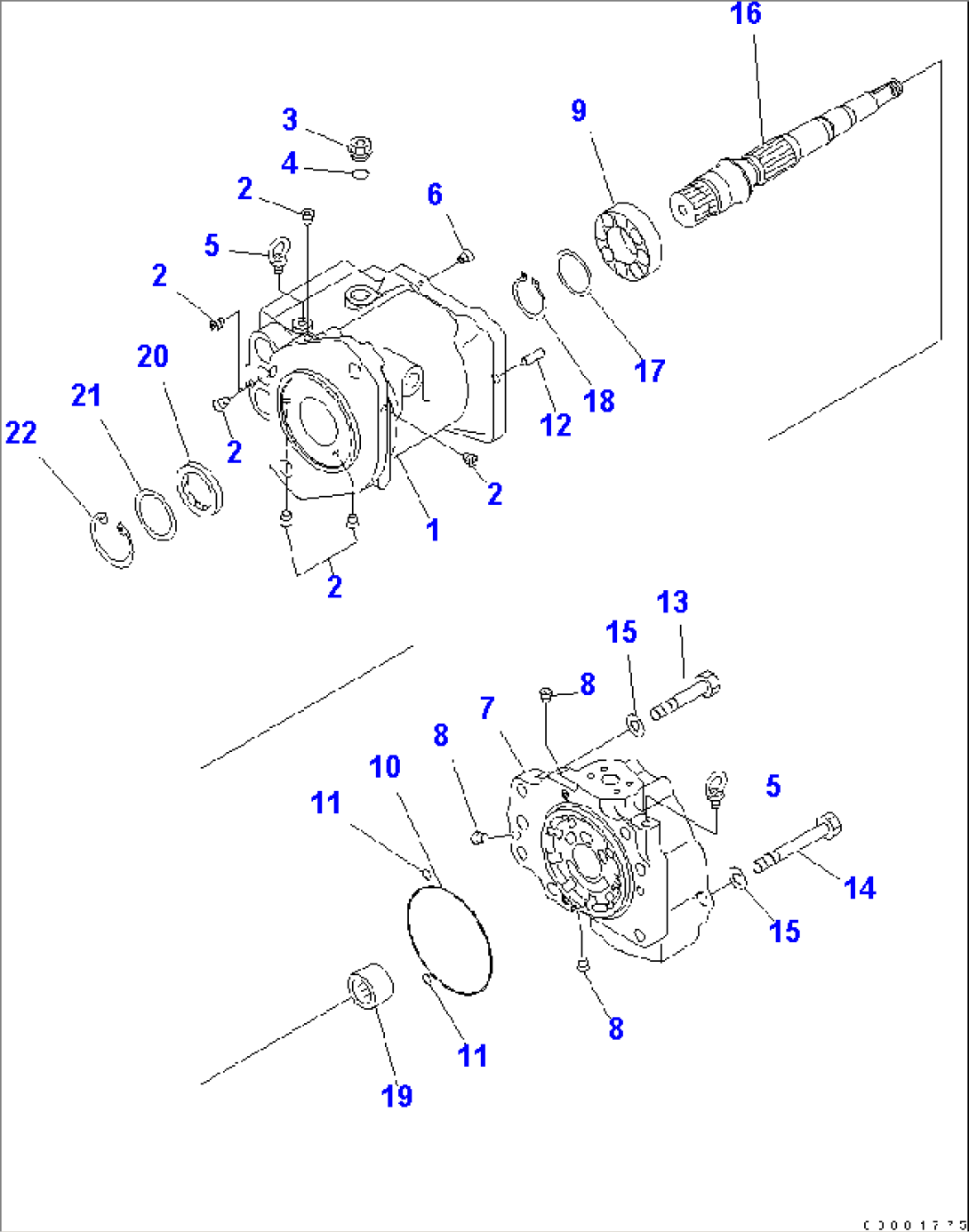

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-06A0. | ||||
| 708-1H-01234 | PUMP SUB ASS'Y | 1201- | ||
| (\7\708-1H-04412) | CASE ASS'Y | 1201- | ||
| 1 | \6\ | CASE | 1201- | |
| 2 | \6\ | PLUG | 1201- | |
| 3 | 07044-12412 | PLUG | 1201- | |
| 4 | 07002-62434 | O-RING | 1201- | |
| 5 | 04530-11222 | BOLT,EYE | 1201- | |
| 6 | \6\ | ORIFICE | 1201- | |
| (\7\708-1H-04321) | END CAP ASS'Y | 1201- | ||
| 7 | \6\ | CAP,END | 1201- | |
| 8 | \6\ | PLUG | 1201- | |
| 9 | (\7\708-1H-22150) | BEARING | 1201- | |
| 10 | (\7\07000-A5175) | O-RING | 1201- | |
| 11 | (\7\07000-B2012) | O-RING | 1201- | |
| 12 | (\7\04020-01434) | PIN,DOWEL | 1201- | |
| 13 | (\7\01010-61865) | BOLT | 1201- | |
| 14 | (\7\01011-61860) | BOLT | 1201- | |
| 15 | (\7\01643-31845) | WASHER | 1201- | |
| 16 | (\7\708-1H-32110) | SHAFT | 1201- | |
| 17 | (\7\708-17-05010) | WASHER KIT | 1201- | |
| 17 | \6\ | WASHER, 3.0MM | 1201- | |
| 17 | \6\ | WASHER, 3.1MM | 1201- | |
| 17 | \6\ | WASHER, 3.2MM | 1201- | |
| 18 | (\7\708-17-12780) | RING,SNAP | 1201- | |
| 19 | (\7\708-1H-12262) | BEARING | 1201- | |
| 20 | 708-27-22811 | SEAL,OIL | 1201- | |
| 21 | 708-2H-22160 | SPACER | 1201- | |
| 22 | 04065-08225 | RING,SNAP | 1201- |
