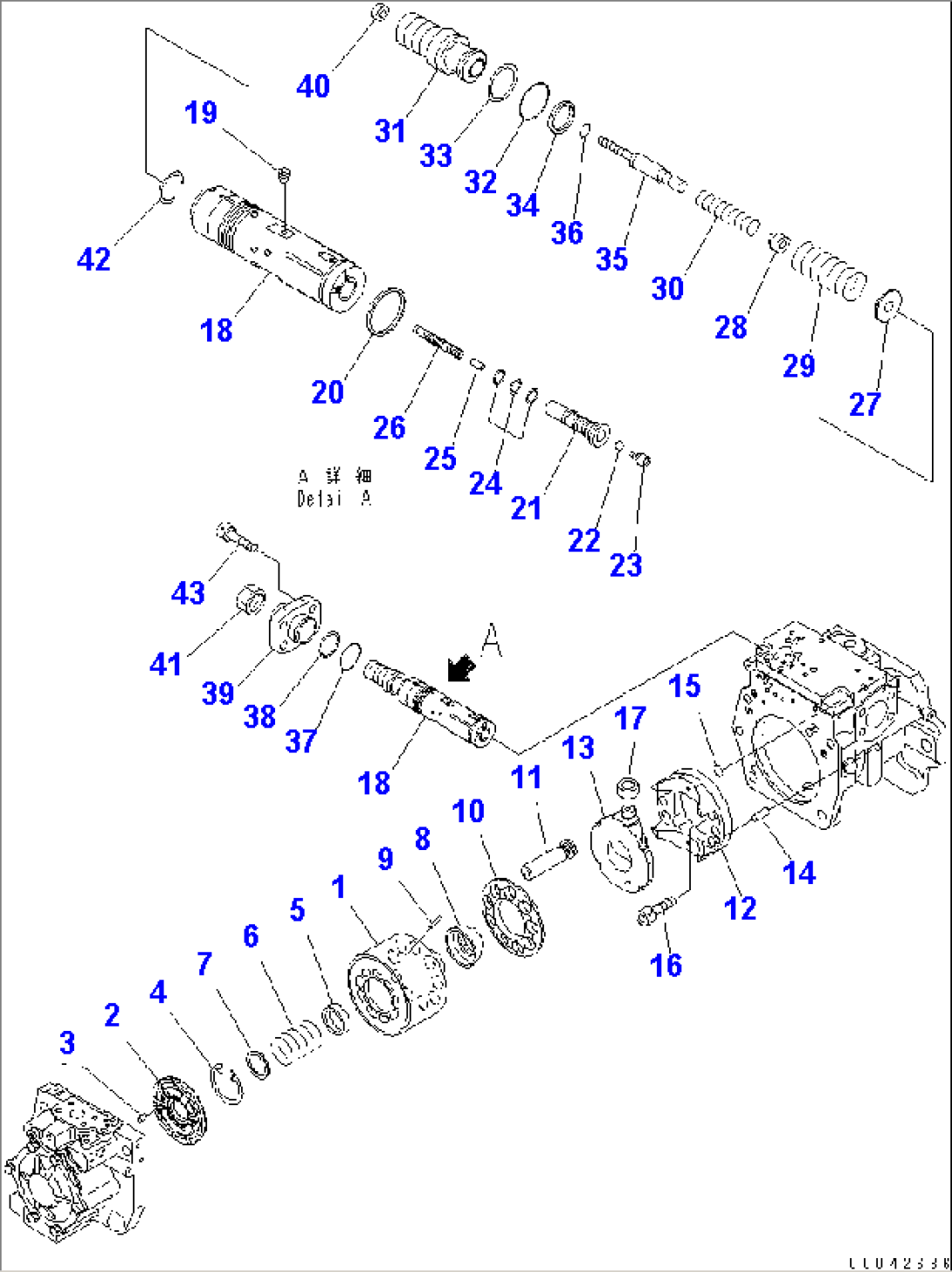

| Item | Part No. | Part Name | Qty | Serial No. |
| (708-1H-00250) | PUMP ASS'Y | 80001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-21A0 T0 Y1600-25A0. | ||||
| (708-1H-01250) | PUMP SUB ASS'Y | 80001- | ||
| (\7\708-2H-04650) | BLOCK ASS'Y | 80001- | ||
| 1 | \6\ | BLOCK,CYLINDER | 80001- | |
| 2 | \6\ | PLATE,VALVE | 80001- | |
| 3 | (\7\708-18-13230) | PIN | 80001- | |
| 4 | (\7\04065-05820) | RING | 80001- | |
| 5 | (\7\708-2H-33140) | SEAT | 80001- | |
| 6 | (\7\708-2H-33150) | SPRING | 80001- | |
| 7 | (\7\708-2H-23141) | SEAT | 80001- | |
| 8 | (\7\708-2H-23350) | GUIDE,RETAINER | 80001- | |
| 9 | (\7\708-2H-23360) | PIN | 80001- | |
| 10 | (\7\708-2H-33343) | RETAINER,SHOE | 80001- | |
| 11 | (\7\708-2H-33311) | PISTON SUB ASS'Y | 80001- | |
| (\7\708-2H-04690) | CRADLE SUB ASS'Y | 80001- | ||
| 12 | \6\ | CRADLE | 80001- | |
| 13 | \6\ | CAM,ROCKER | 80001- | |
| 14 | (\7\04020-01434) | PIN | 80001- | |
| 15 | (\7\07000-B1009) | O-RING | 80001- | |
| 16 | (\7\01252-61235) | BOLT | 80001- | |
| 17 | (\7\708-2H-34150) | SLIDER | 80001- | |
| 708-1H-03260 | VALVE ASS'Y,PC | 80001- | ||
| (\7\708-1H-03240) | PISTON ASS'Y,SERVO | 80001- | ||
| 18 | \6\ | PISTON,SERVO | 80001- | |
| 19 | \6\ | PLUG | 80001- | |
| 20 | (\7\708-2G-15320) | SEAL | 80001- | |
| 21 | (\7\708-2H-15310) | PLUG | 80001- | |
| 22 | (\7\708-2L-35760) | BALL | 80001- | |
| 23 | (\7\708-2L-35770) | PLUG | 80001- | |
| 24 | (\7\708-2L-35690) | SEAL | 80001- | |
| 25 | (\7\708-2L-35170) | PIN | 80001- | |
| 26 | (\7\708-2H-15210) | SPOOL | 80001- | |
| 27 | (\7\708-2G-15290) | RETAINER | 80001- | |
| 28 | (\7\708-2G-15140) | SEAT | 80001- | |
| 29 | (\7\708-2H-15330) | SPRING | 80001- | |
| 30 | (\7\708-2H-15350) | SPRING | 80001- | |
| 31 | (\7\708-2G-14340) | SCREW | 80001- | |
| 32 | (\7\07000-B3038) | O-RING | 80001- | |
| 33 | (\7\708-2G-15230) | RING,BACK-UP | 80001- | |
| 34 | (\7\708-2G-15260) | SEAL | 80001- | |
| 35 | (\7\708-2G-15390) | PLUG | 80001- | |
| 36 | (\7\07000-B2012) | O-RING | 80001- | |
| 37 | (\7\07000-B2050) | O-RING | 80001- | |
| 38 | (\7\708-2G-15310) | RING | 80001- | |
| 39 | (\7\708-2L-44161) | COVER | 80001- | |
| 40 | (\7\01580-10806) | NUT | 80001- | |
| 41 | (\7\708-2L-35290) | NUT | 80001- | |
| 42 | (\7\708-2G-15330) | RING,WIRE | 80001- | |
| 43 | 01252-61645 | BOLT | 80001- |
