| Item | Part No. | Part Name | Qty | Serial No. |
| (708-1L-00380) | PUMP ASS'Y | B45001- | ||

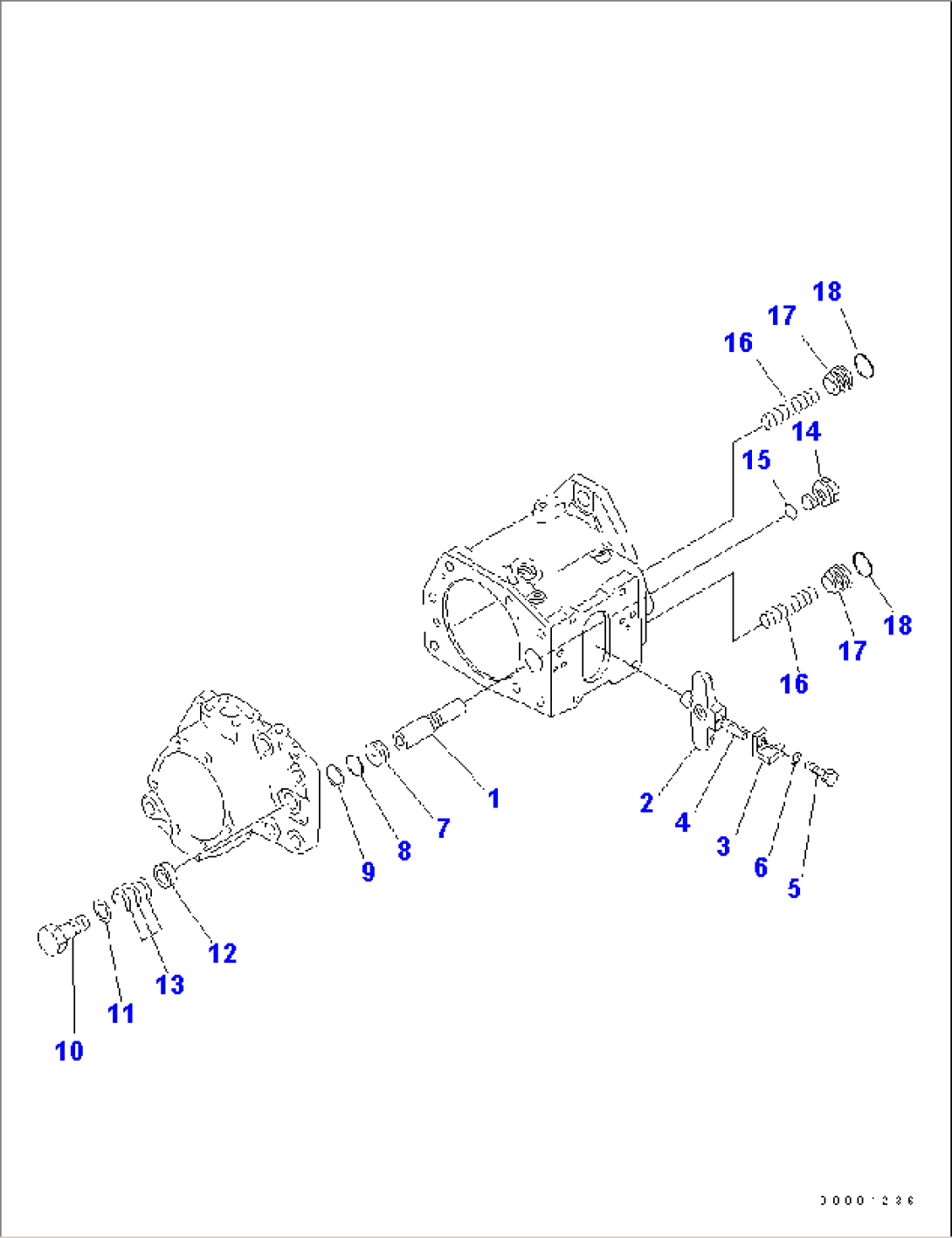

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-06A0. | ||||
| \6\ | PUMP SUB ASS'Y | B45001- | ||
| 1 | (\7\708-1L-24130) | PISTON | B45001- | |
| 2 | (\7\708-2L-24122) | ROD | B45001- | |
| 3 | 708-2L-25883 | CAM | B45001- | |
| 4 | 04020-00514 | PIN | B45001- | |
| 5 | 01010-80620 | BOLT | B45001- | |
| 6 | 01643-30623 | WASHER | B45001- | |
| 7 | (\7\708-2L-24161) | STOPPER | B45001- | |
| 8 | (\7\708-2L-24920) | O-RING | B45001- | |
| 9 | (\7\07001-03025) | RING,BACK-UP | B45001- | |
| 10 | (\7\708-2L-24220) | BOLT | B45001- | |
| 11 | (\7\708-2L-24230) | WASHER | B45001- | |
| 12 | (\7\708-1L-24120) | SEAT | B45001- | |
| 13 | (\7\708-2L-05010) | SHIM KIT | B45001- | |
| \6\ | SHIM¤ 0.1MM | B45001- | ||
| \6\ | SHIM¤ 0.2MM | B45001- | ||
| \6\ | SHIM¤ 0.5MM | B45001- | ||
| 14 | (\7\708-1L-24220) | SCREW | B45001- | |
| 15 | (\7\07002-62034) | O-RING | B45001- | |
| 16 | 708-2L-24141 | SPRING | B45001- | |
| 17 | 708-2L-24131 | PLUG | B45001- | |
| 18 | 07000-13030 | O-RING | B45001- |
