| Item | Part No. | Part Name | Qty | Serial No. |
| (708-1H-00231) | PUMP ASS'Y | 11001- | ||

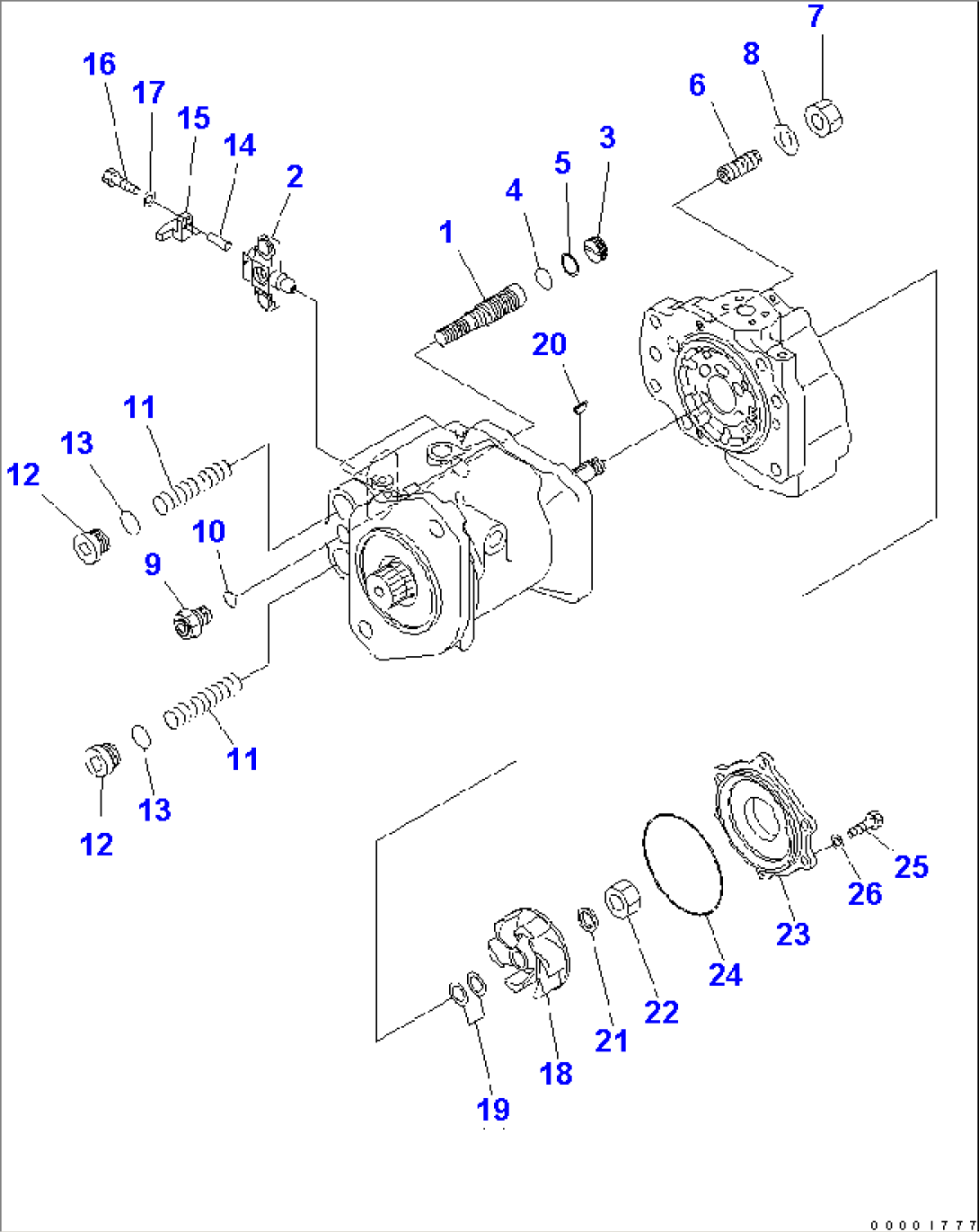

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-06A0. | ||||
| (708-1H-01234) | PUMP SUB ASS'Y | 11001- | ||
| 1 | (\7\708-1H-34110) | PISTON | 11001- | |
| 2 | (\7\708-2H-24220) | ROD | 11001- | |
| 3 | (\7\708-2H-24160) | STOPPER | 11001- | |
| 4 | (\7\07000-B3028) | O-RING | 11001- | |
| 5 | (\7\07001-03028) | RING | 11001- | |
| 6 | (\7\708-2H-24320) | SCREW | 11001- | |
| 7 | (\7\01583-12414) | NUT | 11001- | |
| 8 | (\7\01643-32460) | WASHER | 11001- | |
| 9 | (\7\708-1H-24210) | SCREW | 11001- | |
| 10 | (\7\07002-62434) | O-RING | 11001- | |
| 11 | (\7\708-2H-24140) | SPRING | 11001- | |
| 12 | (\7\708-2H-24130) | PLUG | 11001- | |
| 13 | (\7\07002-63634) | O-RING | 11001- | |
| 14 | (\7\04020-00514) | PIN | 11001- | |
| 15 | (\7\708-2H-25870) | CAM | 11001- | |
| 16 | (\7\01010-80825) | BOLT | 11001- | |
| 17 | (\7\01643-30823) | WASHER | 11001- | |
| 18 | (\7\708-1H-21660) | IMPELLER | 11001- | |
| 19 | (\7\708-1E-05010) | WASHER KIT | 11001- | |
| 19 | \6\ | WASHER, 2.7MM | 11001- | |
| 19 | \6\ | WASHER, 3.0MM | 11001- | |
| 19 | \6\ | WASHER, 3.3MM | 11001- | |
| 19 | \6\ | WASHER, 3.6MM | 11001- | |
| 20 | (\7\04010-00522) | KEY | 11001- | |
| 21 | (\7\708-1E-11640) | WASHER | 11001- | |
| 22 | (\7\01583-12414) | NUT | 11001- | |
| 23 | (\7\708-1H-31620) | COVER | 11001- | |
| 24 | (\7\708-1H-32530) | O-RING | 11001- | |
| 25 | 01010-81230 | BOLT | 11001- | |
| 26 | 01643-31232 | WASHER | 11001- |
