| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (14Y-22-00212) | POWER LINE ASS'Y | 65715- | ||
| (14Y-22-00210) | POWER LINE ASS'Y | 65001-65714 | ||
| (14X-22-00113) | POWER LINE UNIT | 60884-65000 | ||
| (14Y-22-00242) | POWER LINE ASS'Y,(FOR TOWING WINCH) | 65715- | ||
| (14Y-22-00240) | POWER LINE ASS'Y,(FOR TOWING WINCH) | 65001-65714 | ||

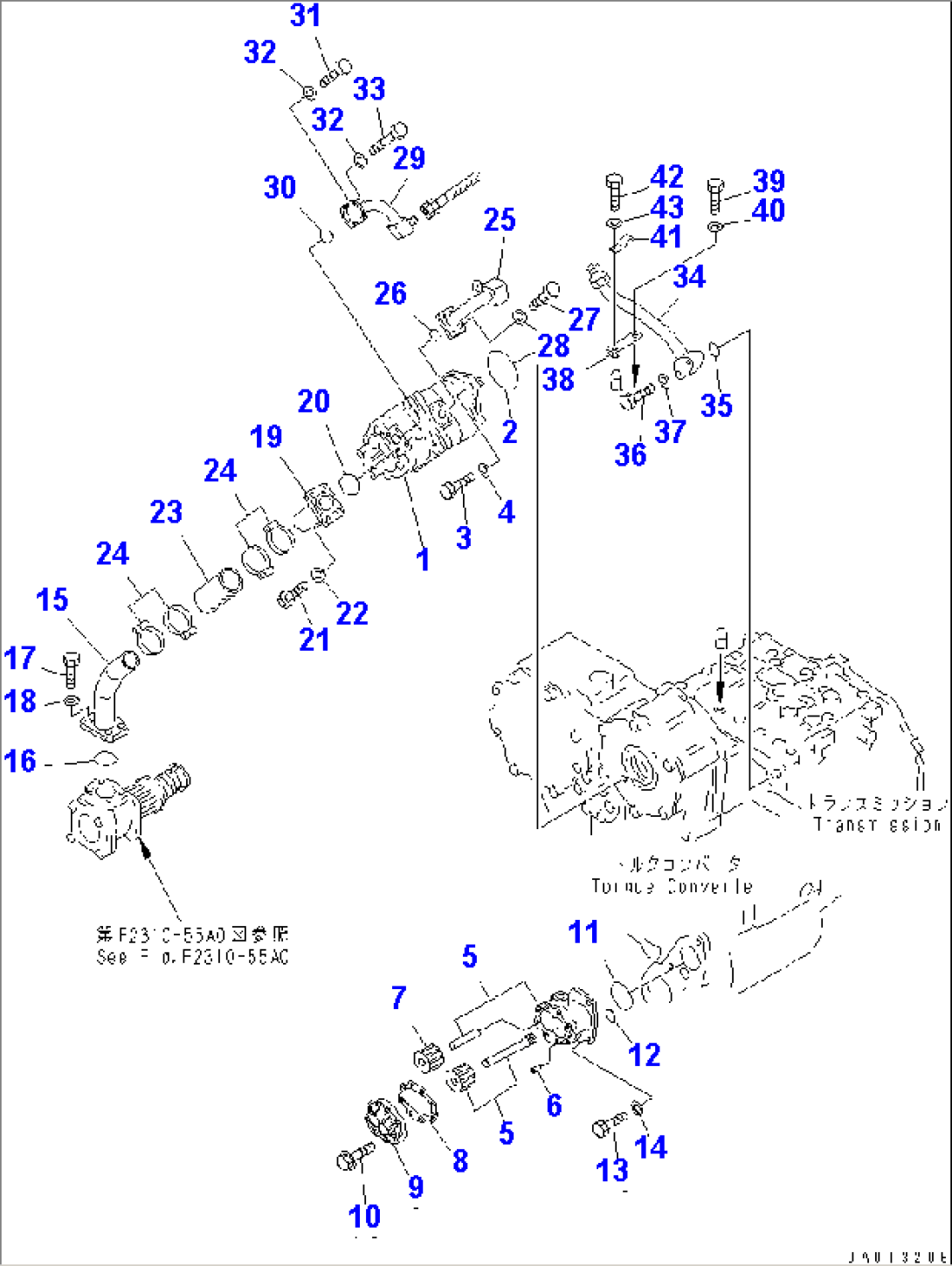

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2300-51A0A TO F2300-77A0. | ||||
| 1 | (705-51-20370) | PUMP ASS'Y,(SEE FIG. F2300-68A0) | 60884- | |
| 2 | 07000-72105 | O-RING | 60884- | |
| 3 | 01010-81235 | BOLT | 60884- | |
| 4 | 01643-31232 | WASHER | 60884- | |
| 14X-49-11600 | PUMP ASS'Y | 60884- | ||
| 5 | \6\ | SHAFT ASS'Y | 60884- | |
| 6 | TP15-2206124 | PIN | 60884- | |
| 7 | \6\ | GEAR ASS'Y | 60884- | |
| 8 | TPA50164010A | PACKING | 60884- | |
| 9 | \6\ | COVER ASS'Y | 60884- | |
| 10 | TP0812082562 | BOLT | 60884- | |
| 11 | 07000-72080 | O-RING | 60884- | |
| 12 | 07000-73038 | O-RING | 60884- | |
| 13 | 01010-81235 | BOLT | 60884- | |
| 14 | 01643-31232 | WASHER | 60884- | |
| 15 | 14X-49-11211 | TUBE | 63219- | |
| 15 | 14X-49-11210 | TUBE | 60884-63218 | |
| 16 | 07000-72060 | O-RING | 60884- | |
| 17 | 01010-81245 | BOLT | 63219- | |
| 17 | 01010-81235 | BOLT | 60884-63218 | |
| 18 | 01643-51232 | WASHER | 60884- | |
| 19 | 14X-49-11221 | TUBE | 63219- | |
| 19 | 14X-49-11220 | TUBE | 60884-63218 | |
| 20 | 07000-73048 | O-RING | 60884- | |
| 21 | 01010-81245 | BOLT | (00003)- | |
| 21 | 01010-81240 | BOLT | 63219-(00002) | |
| 21 | 01010-81235 | BOLT | 60884-63218 | |
| 22 | 01643-51232 | WASHER | 60884- | |
| 23 | 07260-24713 | HOSE | 60884- | |
| 24 | 07289-00055 | CLAMP | (00003)- | |
| 24 | 07289-00055 | CLAMP | 63219-(00002) | |
| 24 | 07281-00709 | CLAMP | 60884-63218 | |
| 25 | 14X-49-11312 | TUBE | 63219- | |
| 25 | 14X-49-11311 | TUBE | 60884-63218 | |
| 26 | 07000-73025 | O-RING | 60884- | |
| 27 | 01010-80840 | BOLT | 63219- | |
| 27 | 01010-80835 | BOLT | 60884-63218 | |
| 28 | 01643-50823 | WASHER | 60884- | |
| 29 | 14X-49-11320 | TUBE | 60884- | |
| 30 | 07000-73030 | O-RING | 60884- | |
| 31 | 01010-80840 | BOLT | 60884- | |
| 32 | 01643-50823 | WASHER | 60884- | |
| 33 | 01010-80850 | BOLT | 60884- | |
| 34 | 14X-49-21410 | TUBE | 65001- | |
| 34 | 14X-49-11411 | TUBE | 60884-65000 | |
| 35 | 07000-73028 | O-RING | 60884- | |
| 36 | 01010-81090 | BOLT | 65001- | |
| 36 | 01010-81060 | BOLT | 60884-65000 | |
| 37 | 01643-31032 | WASHER | 60884- | |
| 38 | 14X-49-21430 | PLATE | 65001- | |
| 38 | 14X-49-11430 | PLATE | 60884-65000 | |
| 39 | 01010-81270 | BOLT | 65001- | |
| 40 | 01643-31232 | WASHER | 65001- | |
| 41 | 112-62-32150 | CLAMP | 60884- | |
| 42 | 01010-81025 | BOLT | 60884- | |
| 43 | 01643-31032 | WASHER | 60884- |
