| Item | Part No. | Part Name | Qty | Serial No. |
| (708-1L-00012) | PUMP ASS'Y | 61676- | ||
| (708-1L-00011) | PUMP ASS'Y | 60942-61675 | ||

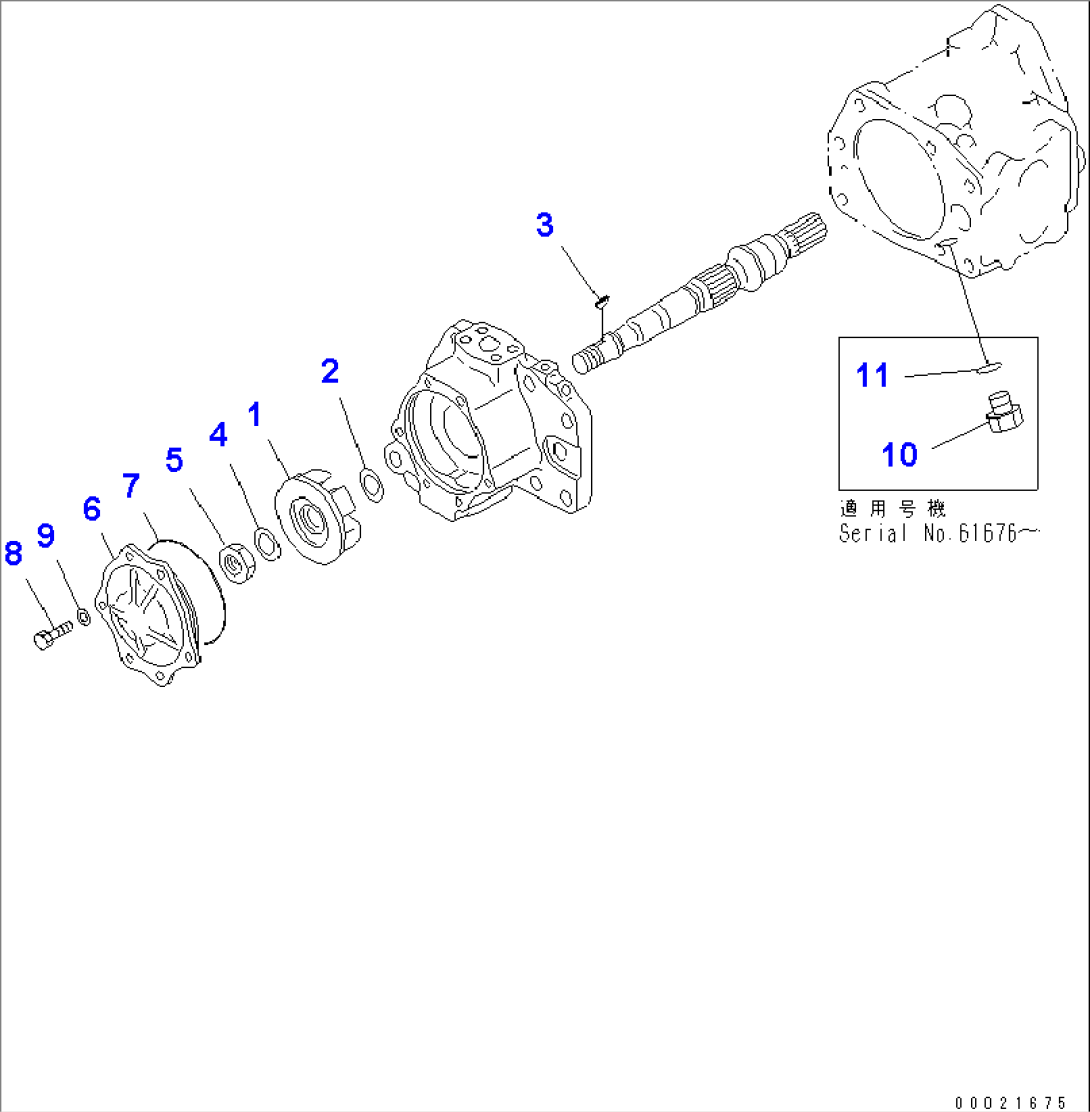

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-05A0. | ||||
| \6\ | PUMP SUB ASS'Y | 61676- | ||
| \6\ | PUMP SUB ASS'Y | 60942-61675 | ||
| 1 | (\7\708-1L-21630) | IMPELLER | 60942- | |
| 2 | (\7\708-1E-05010) | WASHER KIT | 60942- | |
| 2 | \6\ | WASHER, 2.7MM | 60942- | |
| 2 | \6\ | WASHER, 3.0MM | 60942- | |
| 2 | \6\ | WASHER, 3.3MM | 60942- | |
| 2 | \6\ | WASHER, 3.6MM | 60942- | |
| 3 | (\7\04010-00516) | KEY | 60942- | |
| 4 | (\7\708-1E-11640) | WASHER | 60942- | |
| 5 | (\7\01583-12414) | NUT | 60942- | |
| 6 | 708-1L-21621 | COVER | 60942- | |
| 7 | 07000-12130 | O-RING | 60942- | |
| 8 | 01010-81025 | BOLT | 60942- | |
| 9 | 01643-31032 | WASHER | 60942- | |
| 10 | 07040-12412 | PLUG | 61676- | |
| 11 | 07002-62434 | O-RING | 61676- |
