| Item | Part No. | Part Name | Qty | Serial No. |
| (708-1H-00231) | PUMP ASS'Y | 10001- | ||

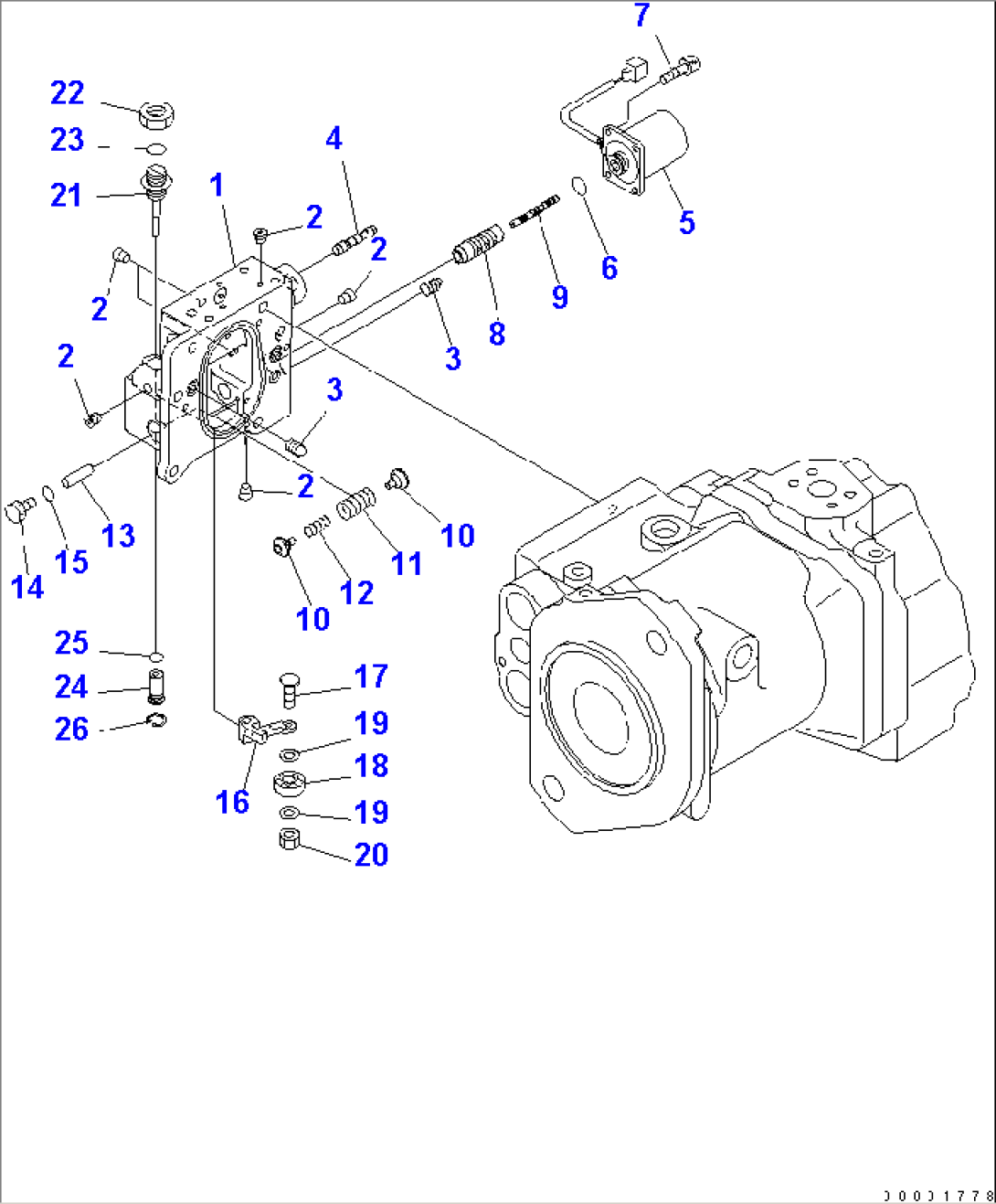

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-06A0. | ||||
| 708-1H-03222 | VALVE ASS'Y | 10001- | ||
| (\7\708-1L-03841) | BODY ASS'Y | 10001- | ||
| 1 | \6\ | BODY | 10001- | |
| 2 | \6\ | PLUG | 10001- | |
| 3 | \6\ | EXPANDER | 10001- | |
| 4 | \6\ | SPOOL | 10001- | |
| 5 | (\7\708-2L-25190) | SOLENOID ASS'Y | 10001- | |
| 6 | (\7\07000-B2016) | O-RING | 10001- | |
| 7 | (\7\01252-60612) | BOLT | 10001- | |
| 8 | (\7\708-1L-25910) | SLEEVE | 10001- | |
| 9 | (\7\708-2L-25232) | SPOOL | 10001- | |
| 10 | (\7\708-2L-25291) | SEAT | 10001- | |
| 11 | (\7\708-2H-25250) | SPRING | 10001- | |
| 12 | (\7\708-2L-25261) | SPRING | 10001- | |
| 13 | (\7\708-2L-25281) | PISTON | 10001- | |
| 14 | (\7\07040-11007) | PLUG | 10001- | |
| 15 | (\7\07002-61023) | O-RING | 10001- | |
| 16 | (\7\708-2H-25370) | LEVER | 10001- | |
| 17 | (\7\708-2L-25311) | PIN | 10001- | |
| 18 | (\7\708-2L-25330) | BEARING | 10001- | |
| 19 | (\7\708-2L-25321) | WASHER | 10001- | |
| 20 | (\7\01580-00605) | NUT | 10001- | |
| 21 | (\7\708-2L-25340) | PLUG | 10001- | |
| 22 | (\7\01583-11811) | NUT | 10001- | |
| 23 | (\7\07002-61823) | O-RING | 10001- | |
| 24 | (\7\708-2L-25382) | PLUG | 10001- | |
| 25 | (\7\07000-B2010) | O-RING | 10001- | |
| 26 | (\7\04065-01610) | RING,SNAP | 10001- |
