| Item | Part No. | Part Name | Qty | Serial No. |
| (708-1H-00231) | PUMP ASS'Y | 10001- | ||

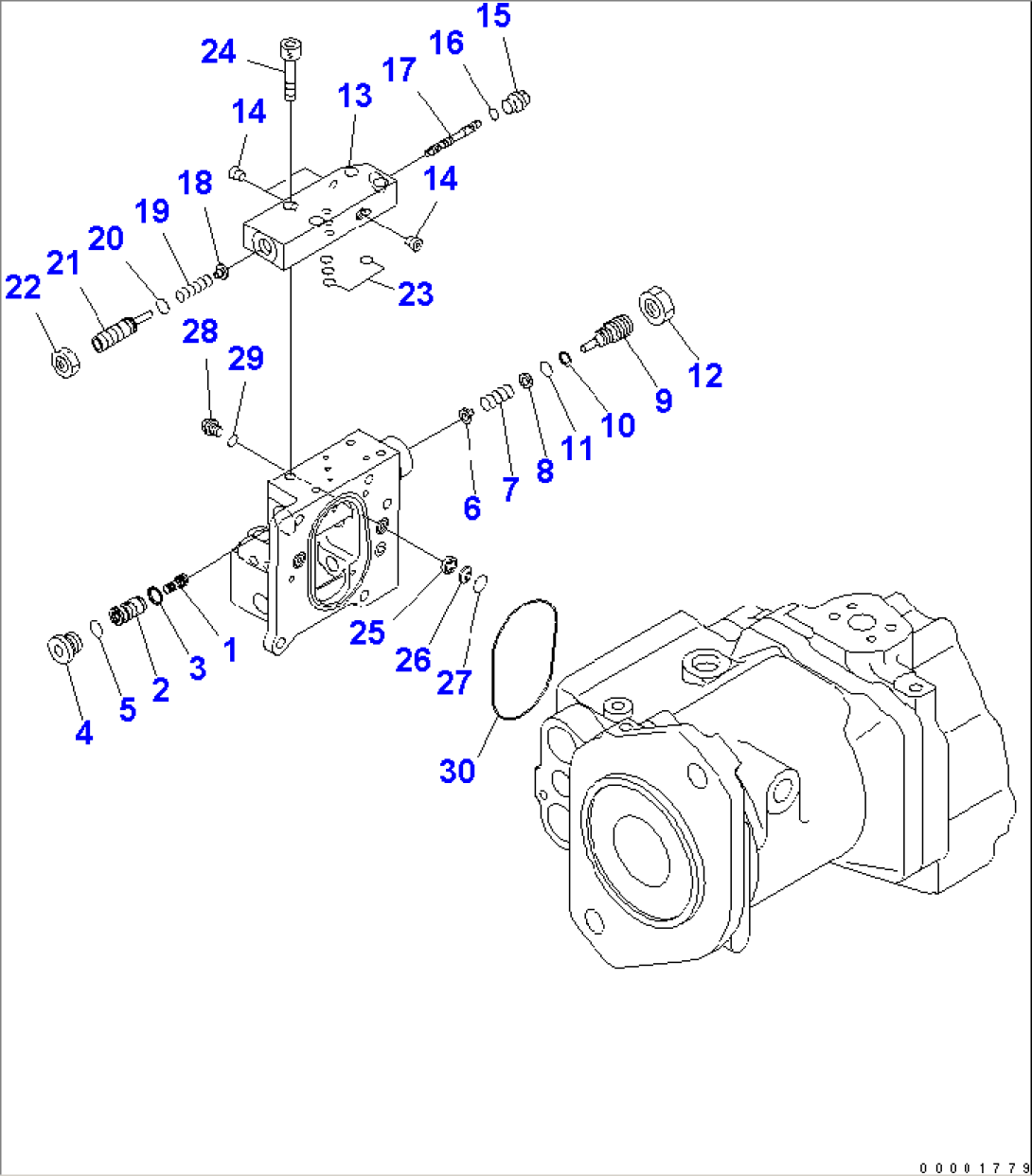

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-06A0. | ||||
| (708-1H-03222) | VALVE ASS'Y | 10001- | ||
| (\7\708-1L-03930) | SLEEVE ASS'Y | 10001- | ||
| 1 | \6\ | PISTON | 10001- | |
| 2 | \6\ | SLEEVE | 10001- | |
| 3 | \6\ | SEAL | 10001- | |
| 4 | (\7\708-2L-25531) | PLUG | 10001- | |
| 5 | (\7\07002-62034) | O-RING | 10001- | |
| 6 | (\7\708-2L-25542) | SEAT | 10001- | |
| 7 | (\7\708-2L-25551) | SPRING | 10001- | |
| 8 | (\7\708-2L-25640) | SEAT | 10001- | |
| 9 | (\7\708-2L-25621) | PLUG | 10001- | |
| 10 | (\7\07001-02012) | RING,BACK-UP | 10001- | |
| 11 | (\7\07000-B2012) | O-RING | 10001- | |
| 12 | (\7\01583-12012) | NUT | 10001- | |
| (\7\708-1L-03920) | BLOCK ASS'Y | 10001- | ||
| 13 | \6\ | BLOCK | 10001- | |
| 14 | \6\ | PLUG | 10001- | |
| 15 | (\7\708-1L-25210) | PLUG | 10001- | |
| 16 | (\7\07002-61423) | O-RING | 10001- | |
| 17 | (\7\708-1L-25610) | SPOOL | 10001- | |
| 18 | (\7\708-2L-25542) | SEAT | 10001- | |
| 19 | (\7\708-1L-25640) | SPRING | 10001- | |
| 20 | (\7\07000-B2012) | O-RING | 10001- | |
| 21 | (\7\708-1L-25630) | PLUG | 10001- | |
| 22 | (\7\01583-11811) | NUT | 10001- | |
| 23 | 07000-B2010 | O-RING | 10001- | |
| 24 | 01252-60835 | BOLT | 10001- | |
| 25 | (\7\708-2L-25631) | SPACER | 10001- | |
| 26 | 708-2L-25480 | FILTER | 10001- | |
| 27 | 708-2L-25490 | O-RING | 10001- | |
| 28 | 708-8E-16150 | PLUG | 10001- | |
| 29 | 07002-61023 | O-RING | 10001- | |
| 30 | 07000-B2110 | O-RING | 10001- |
