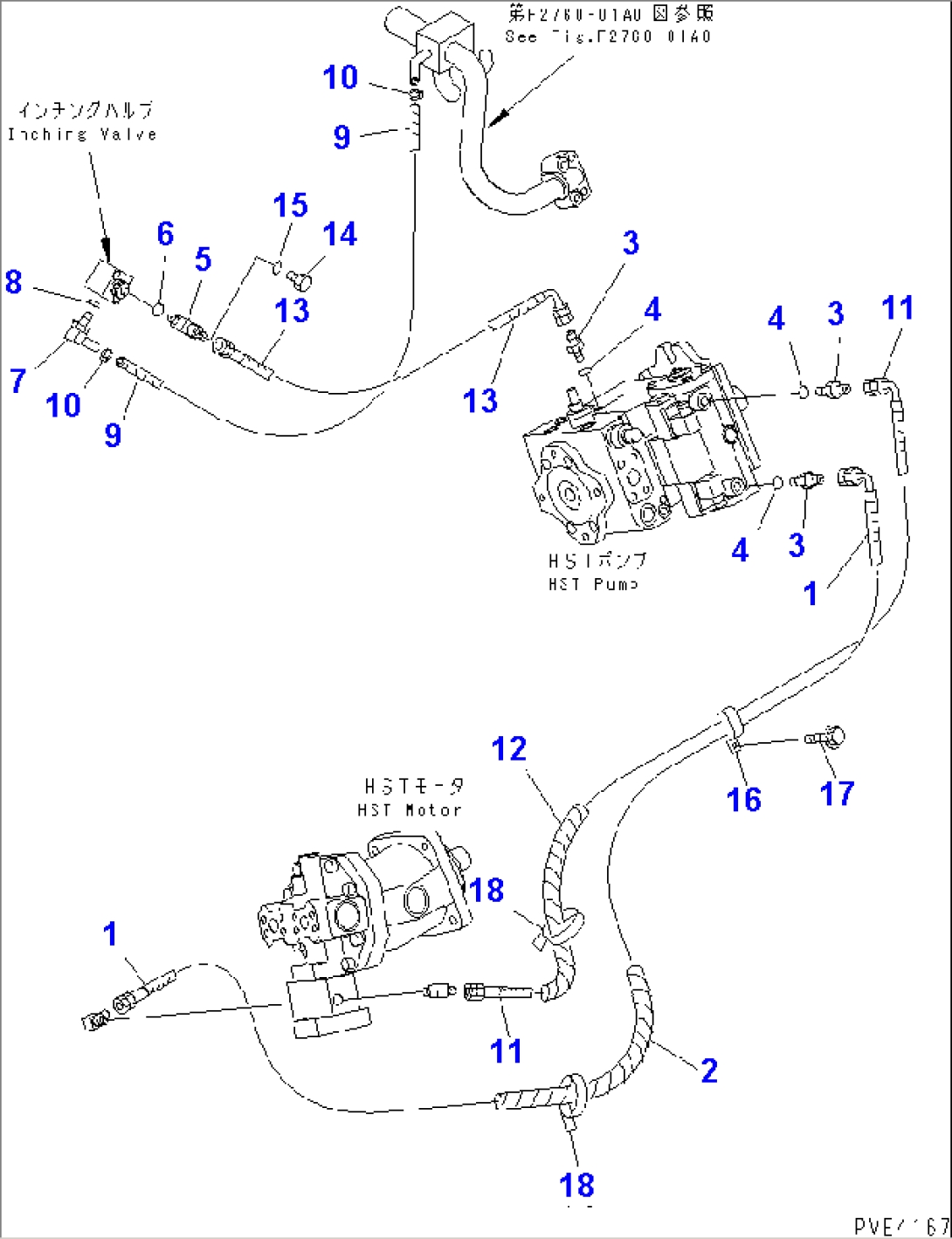

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-18-22112 | HOSE | 10001-12000 | |
| 2 | 363-04-33110 | PROTECTOR | 10001-@ | |
| 3 | 23S-61-24120 | UNION | 10001-12000 | |
| 4 | 07000-12011 | O-RING | 10001-12000 | |
| 5 | 415-18-22160 | ELBOW | 10001-11257 | |
| 6 | 416-62-11480 | O-RING | 10001-11257 | |
| 7 | 361-18-22120 | ELBOW | 10001-11257 | |
| 8 | 416-62-11480 | O-RING | 10001-11257 | |
| 9 | 415-18-22170 | HOSE | 10001-11465 | |
| 10 | 07281-00167 | CLAMP | 11466-12000 | |
| 10 | 07281-00167 | CLAMP | 10001-11465 | |
| 11 | 415-18-22140 | HOSE | 10001-12000 | |
| 12 | 363-04-33110 | PROTECTOR | 10001-@ | |
| 13 | 415-18-22150 | HOSE | 10001-11465 | |
| 14 | 07040-11007 | PLUG | 10001-11257 | |
| 15 | 07002-11023 | O-RING | 10001-11257 | |
| 16 | 04435-51210 | CLIP | 10001-@ | |
| 17 | 01435-01016 | BOLT | 10001-@ | |
| 18 | 08034-20536 | BAND | 10001-@ |
