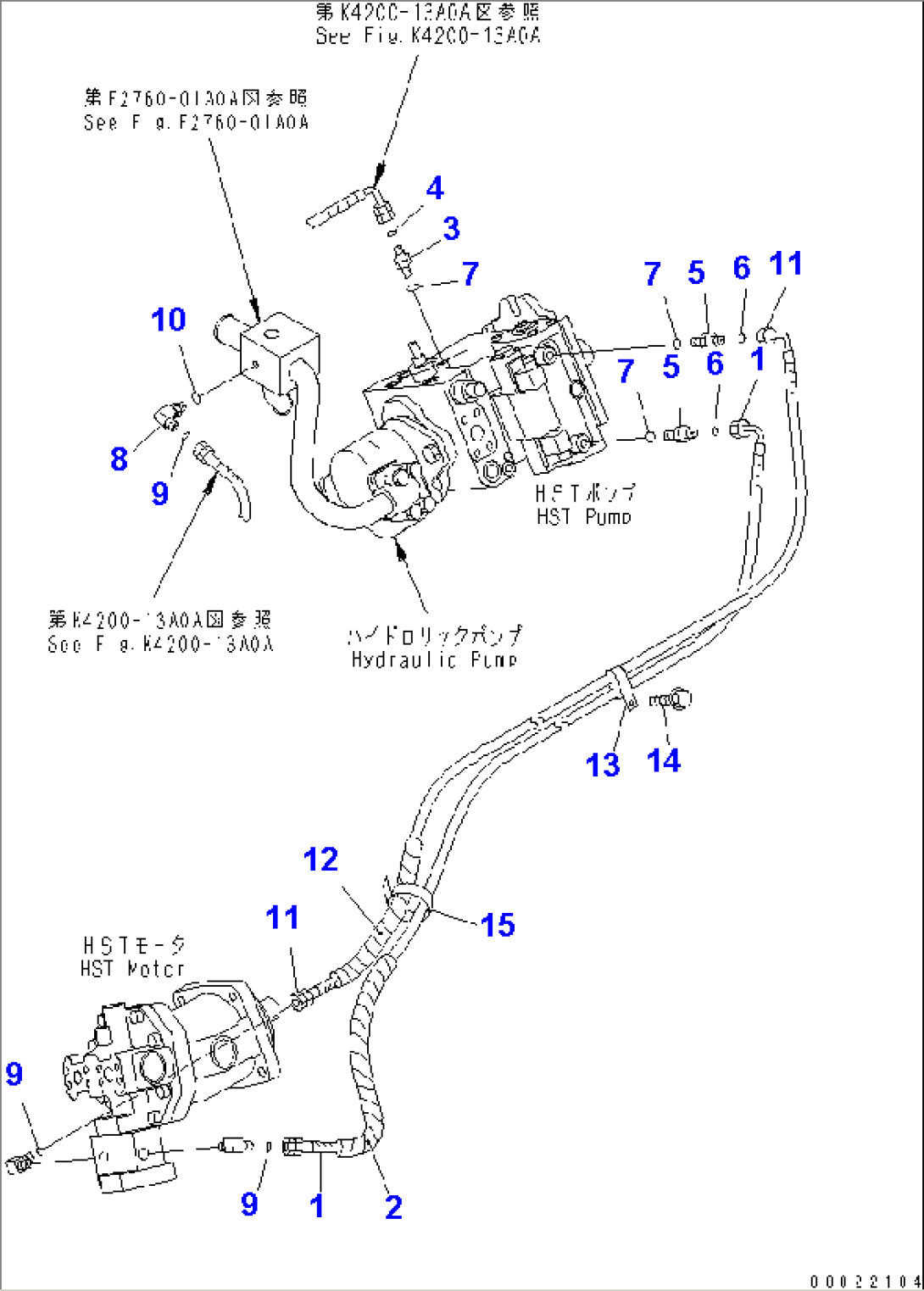

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02761-00207 | HOSE | 12001- | |
| 2 | 363-04-33110 | PROTECTOR | 10001- | |
| 3 | 11Y-62-12850 | UNION | 12001- | |
| 4 | 02896-11009 | O-RING | 12001- | |
| 5 | 11Y-62-12140 | NIPPLE | 12001- | |
| 6 | 02896-11008 | O-RING | 12001- | |
| 7 | 07000-12011 | O-RING | 12001- | |
| 8 | 418-62-32160 | ELBOW | 12001- | |
| 9 | 02896-11008 | O-RING | 12001- | |
| 10 | 416-62-11480 | O-RING | 12001- | |
| 11 | 02761-00211 | HOSE¤ 1100MM | 12001- | |
| 12 | 363-04-33110 | PROTECTOR | 10001- | |
| 13 | 04435-51210 | CLIP | 10001- | |
| 14 | 01435-01016 | BOLT | 10001- | |
| 15 | 08034-20536 | BAND | 10001- |
