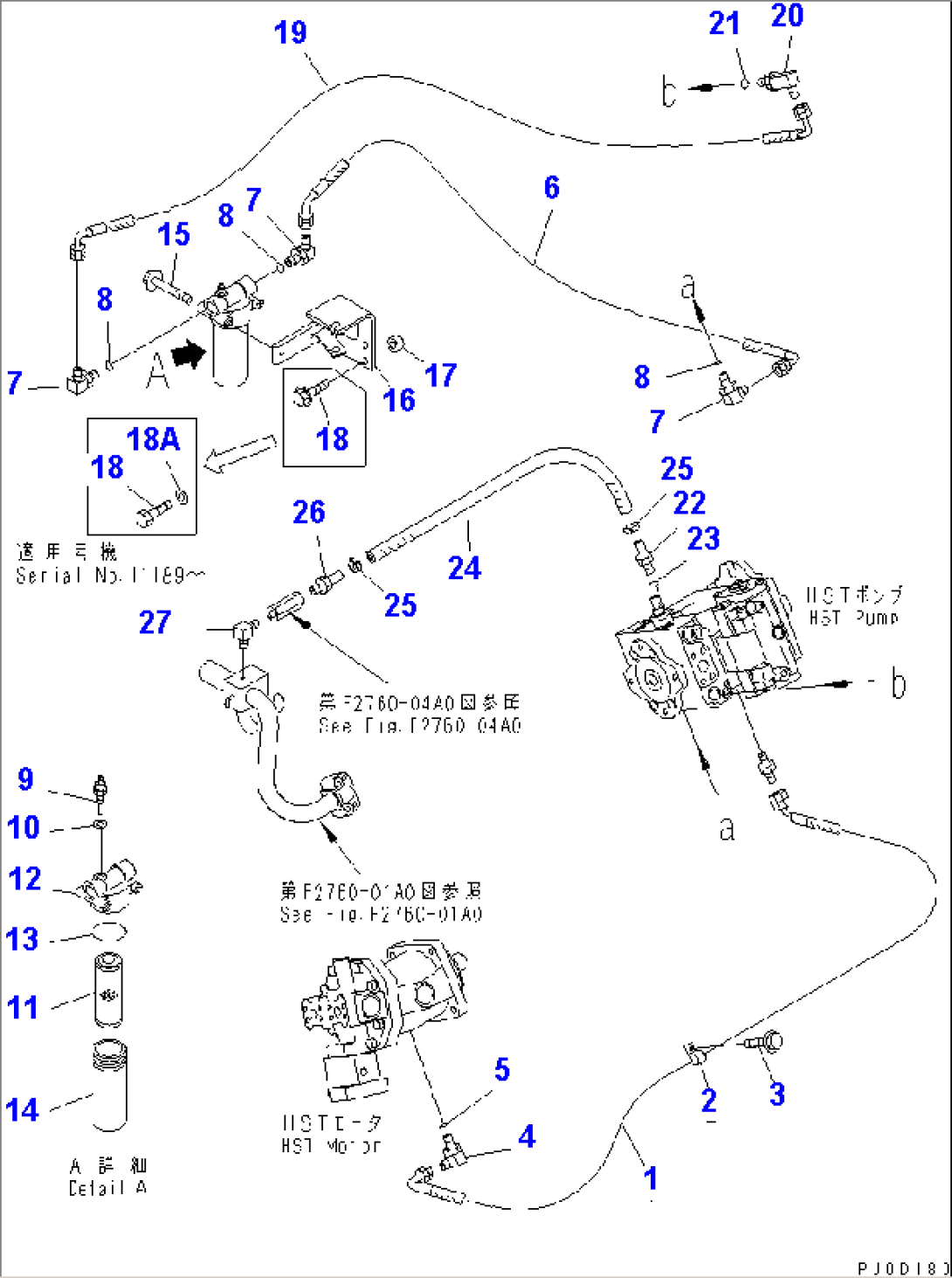

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-18-21172 | HOSE | 10001-12000 | |
| 2 | 04434-53212 | CLIP | .-@ | |
| 2 | \0\04434-53211 | CLIP | 10001-. | |
| 3 | 01435-01016 | BOLT | 10001-@ | |
| 4 | 23S-61-33240 | ELBOW | 10001-12000 | |
| 5 | 07000-12018 | O-RING | 10001-@ | |
| 6 | 415-18-21210 | HOSE | 10001-12000 | |
| 7 | 363-18-31260 | ELBOW | 10001-12000 | |
| 8 | 07000-12018 | O-RING | 10001-@ | |
| 363-18-31280 | FILTER ASS'Y | 10001-@ | ||
| 9 | 415-18-11150 | SENSOR,OIL PRESSURE | 10001-@ | |
| 10 | 415-18-11160 | WASHER,SEAL | 10001-@ | |
| 11 | 363-18-31470 | ELEMENT | 10001-@ | |
| 12 | 415-18-11130 | HEAD | 10001-@ | |
| 13 | 07000-12065 | O-RING | 10001-@ | |
| 14 | 363-18-31480 | CASE | 10001-@ | |
| 15 | 01435-01095 | BOLT | 10001-@ | |
| 16 | 415-18-21284 | BRACKET | 10001-12000 | |
| 16 | (\2\415-18-21283) | BRACKET | (10001-11188) | |
| 17 | 415-18-21380 | SPACER | 11189-12000 | |
| 17 | 424-54-11350 | SPACER | 10001-11188 | |
| 18 | 01010-81250 | BOLT | 11189-12000 | |
| 18 | 01435-01245 | BOLT | 10001-11188 | |
| 18A | 01643-31232 | WASHER | 11189-12000 | |
| 19 | 415-18-21220 | HOSE | 10001-12000 | |
| 20 | 415-18-21330 | ELBOW | 10001-12000 | |
| 21 | 07000-12018 | O-RING | 10001-12000 | |
| 22 | 415-18-21240 | JOINT | 10001-12000 | |
| 23 | 07000-13030 | O-RING | 10001-@ | |
| 24 | 415-18-21252 | HOSE | 10001-12000 | |
| 25 | 07281-00259 | CLAMP | 10001-12000 | |
| 26 | 363-18-31420 | TUBE | 10001-12000 | |
| 27 | 425-35-11471 | ELBOW | 10001-12000 |
