| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-18-21141 | HOSE | 10001- | |
| 2 | 415-18-21151 | HOSE | 10001- | |
| 3 | 415-18-11230 | FLANGE,SPLIT | 10001- | |
| 4 | 07372-21245 | BOLT | 10001- | |
| 5 | 01643-51232 | WASHER | 10001- | |
| 6 | 415-18-21310 | O-RING | 10001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa100m 3 cn s/n 10001 up
- Transmission
- Hst main line (main line)
Поиск по каталогу

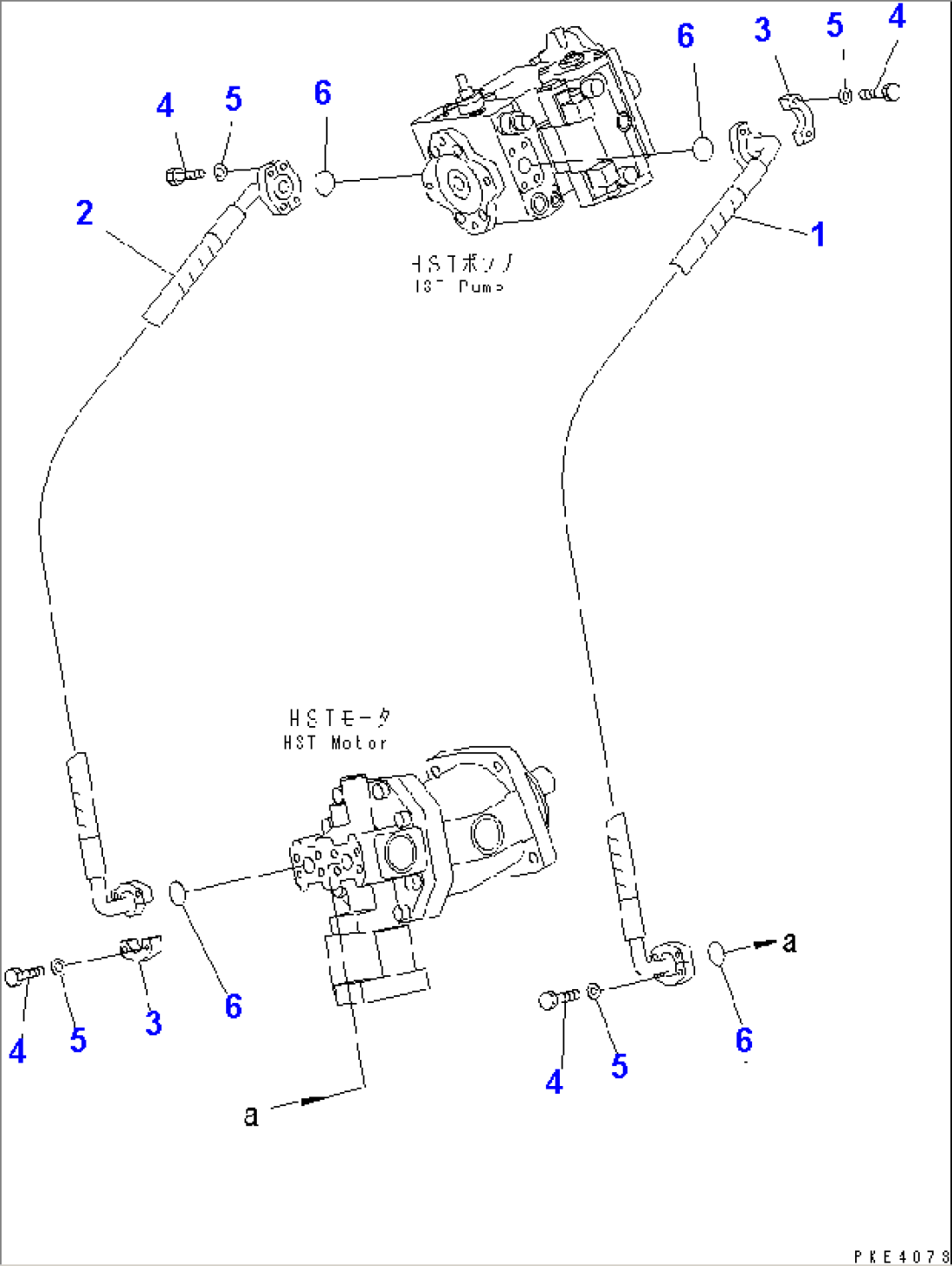

HST MAIN LINE (MAIN LINE)
