| Item | Part No. | Part Name | Qty | Serial No. |
| (415-17-22200) | MOTOR | 12001- | ||
| (415-17-22101) | MOTOR ASS'Y,VALIABLE | 10001-12000 | ||

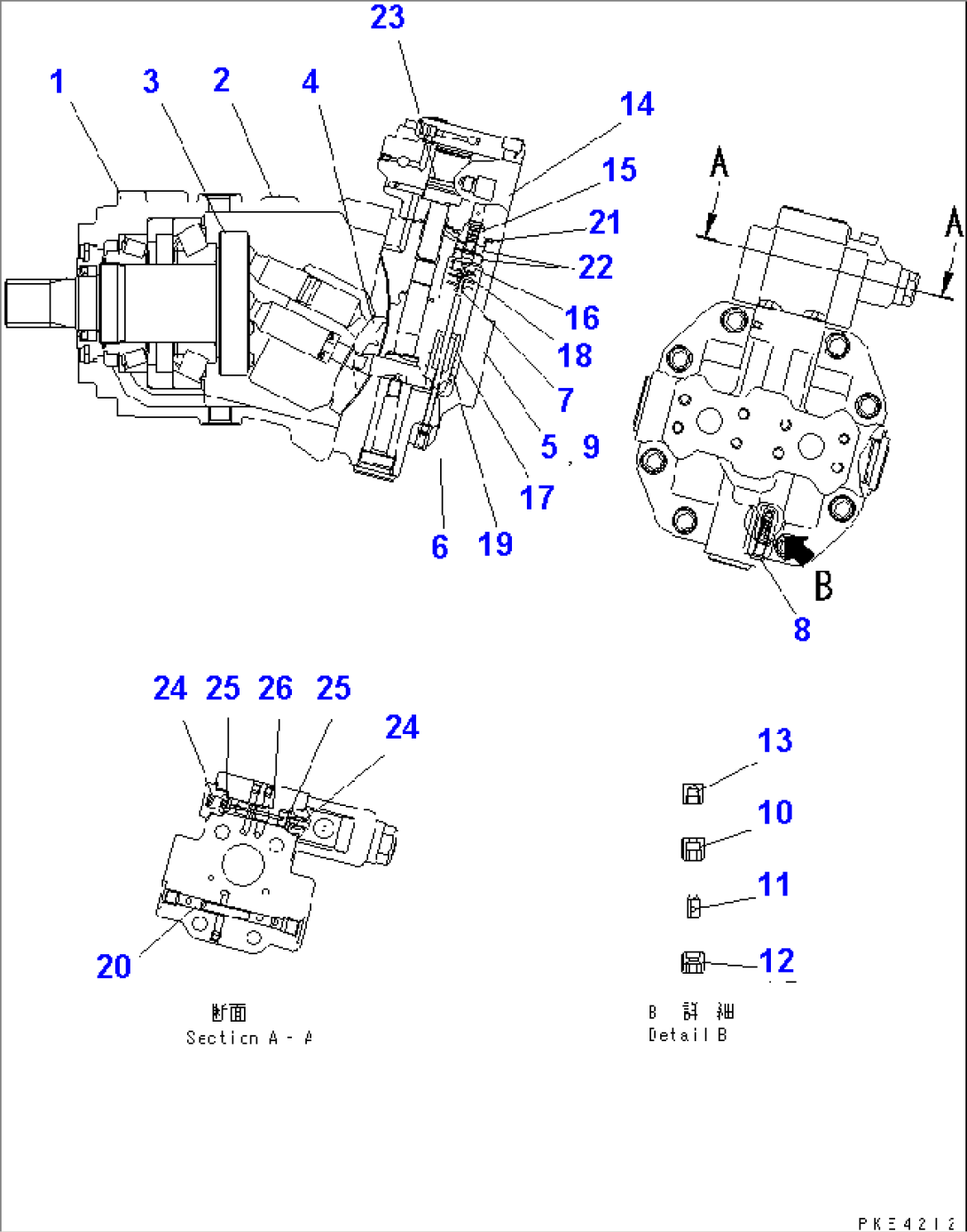

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2430-09A0 AND F2430-10A0. | ||||
| 1 | UC1100484091 | HOUSING | 10001- | |
| 2 | \6\ | PLATE¤ NAME | 10001- | |
| 3 | UC4100309502 | ROTARY ASS'Y | 10001- | |
| 4 | UC1100435815 | PLATE,CONTROL | 10001- | |
| 5 | UC4100536621 | BODY ASS'Y | 10001- | |
| 6 | UC1700799689 | SCREW,ADJUST | 10001- | |
| 7 | UC1700797573 | RETAINER | 10001- | |
| 8 | UC1701533646 | PLUG | 10001- | |
| 9 | UC1302182021 | PIN | 10001- | |
| 10 | UC1704002631 | GUIDE | 10001- | |
| 11 | UC1704171186 | ORIFICE | 10001- | |
| 12 | UC1704002649 | GUIDE | 10001- | |
| 13 | UC1100328991 | ORIFICE | 10001- | |
| 14 | UC4100536639 | COVER | 10001- | |
| 15 | UC4100536649 | SPOOL ASS'Y | 10001- | |
| 16 | UC1700707644 | RETAINER | 10001- | |
| 17 | UC1100176396 | RETAINER | 10001- | |
| 18 | UC1700690179 | SPRING | 10001- | |
| 19 | UC1100492102 | SPRING | 10001- | |
| 20 | UC1100411341 | SPOOL | 10001- | |
| 21 | UC1300700009 | O-RING | 10001- | |
| 22 | UC1700879547 | RING,PISTON | 10001- | |
| 23 | UC1100530552 | PISTON | 10001- | |
| 24 | UC1800111802 | SPRING | 10001- | |
| 25 | UC1801498063 | SPRING SEAT | 10001- | |
| 26 | UC1100483272 | SPOOL | 10001- |
