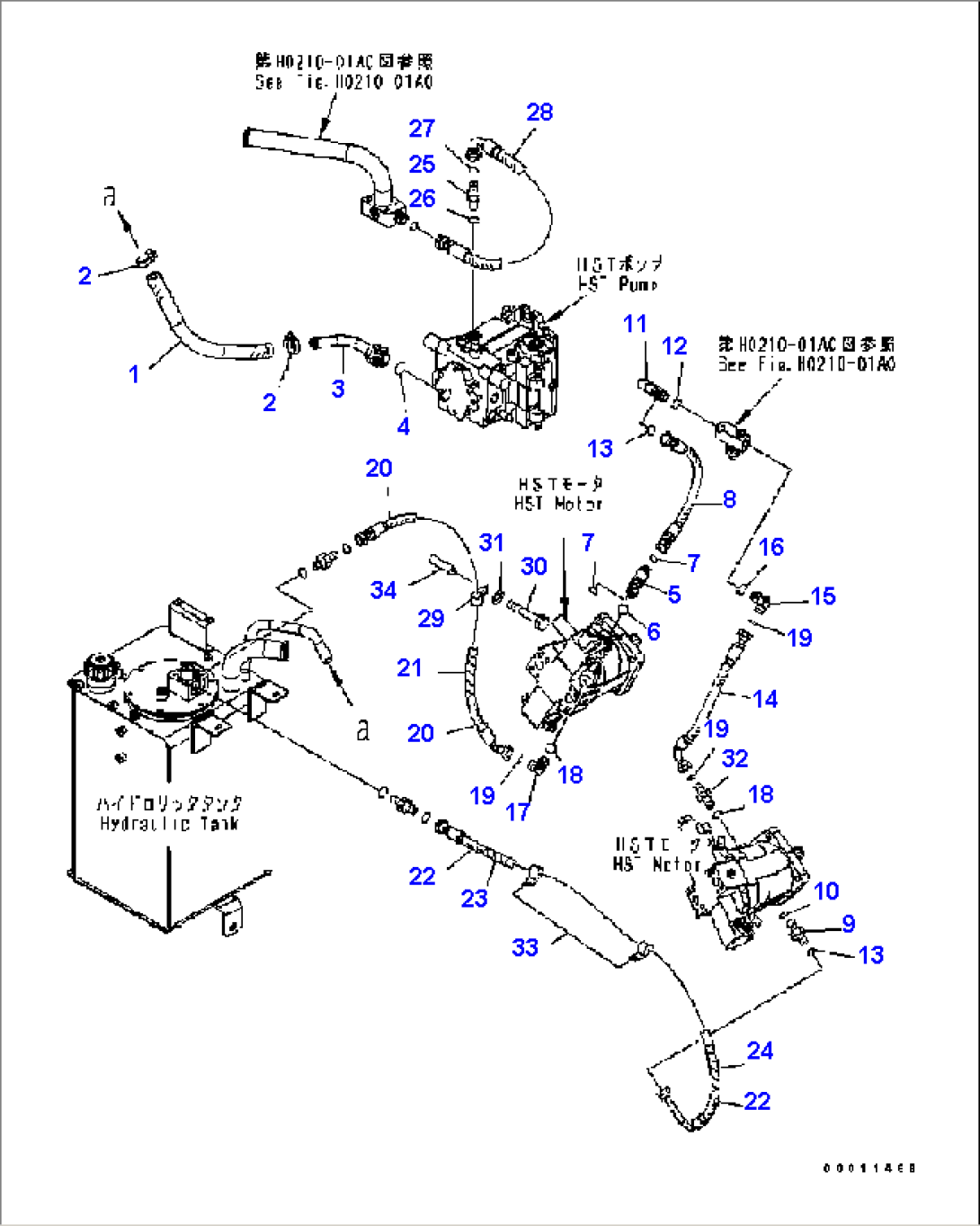

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07260-02650 | HOSE | B10001-@ | |
| 2 | 07289-00045 | CLAMP | B10001-@ | |
| 3 | 418-18-32311 | ELBOW | B10001-@ | |
| 4 | 07000-13038 | O-RING | B10001-@ | |
| 5 | 418-18-32321 | TEE | B10001-@ | |
| 6 | 07000-12018 | O-RING | B10001-@ | |
| 7 | 02896-11015 | O-RING | B10001-@ | |
| 8 | 418-18-32361 | HOSE | B10001-@ | |
| 9 | 417-18-32190 | NIPPLE | B10001-@ | |
| 10 | 07000-12018 | O-RING | B10001-@ | |
| 11 | 02782-10520 | ELBOW | B10001-@ | |
| 12 | 07002-12434 | O-RING | B10001-B10235 | |
| 13 | 02896-11015 | O-RING | B10001-@ | |
| 14 | 417-18-32220 | HOSE ASS'Y | B10001-@ | |
| 15 | 02782-10518 | ELBOW | B10001-@ | |
| 16 | 07002-12034 | O-RING | B10001-@ | |
| 17 | 418-18-32342 | ELBOW | B10001-@ | |
| 18 | 07000-12018 | O-RING | B10001-@ | |
| 19 | 02896-11015 | O-RING | B10001-@ | |
| 20 | 417-18-32270 | HOSE ASS'Y | B10001-@ | |
| 21 | 08210-01803 | SPIRAL TUBE | B10001-@ | |
| 22 | 418-18-32264 | HOSE ASS'Y | B10001-@ | |
| 23 | 08210-01802 | SPIRAL TUBE | B10001-@ | |
| 24 | 08210-01803 | SPIRAL TUBE | B10001-@ | |
| 25 | 418-18-32350 | ELBOW | B10001-B10235 | |
| 26 | 07000-13024 | O-RING | B10001-@ | |
| 27 | 02896-11018 | O-RING | B10001-B10235 | |
| 28 | 418-18-32381 | HOSE | B10001-B10235 | |
| 29 | 04434-52310 | CLIP | B10001-@ | |
| 30 | 01011-81005 | BOLT | B10001-@ | |
| 31 | 01643-31032 | WASHER | B10001-@ | |
| 32 | 417-18-32190 | NIPPLE | B10001-@ | |
| 33 | 04434-52310 | CLIP | B10001-@ | |
| 34 | 6150-71-7130 | COLLAR | B10001-@ |
