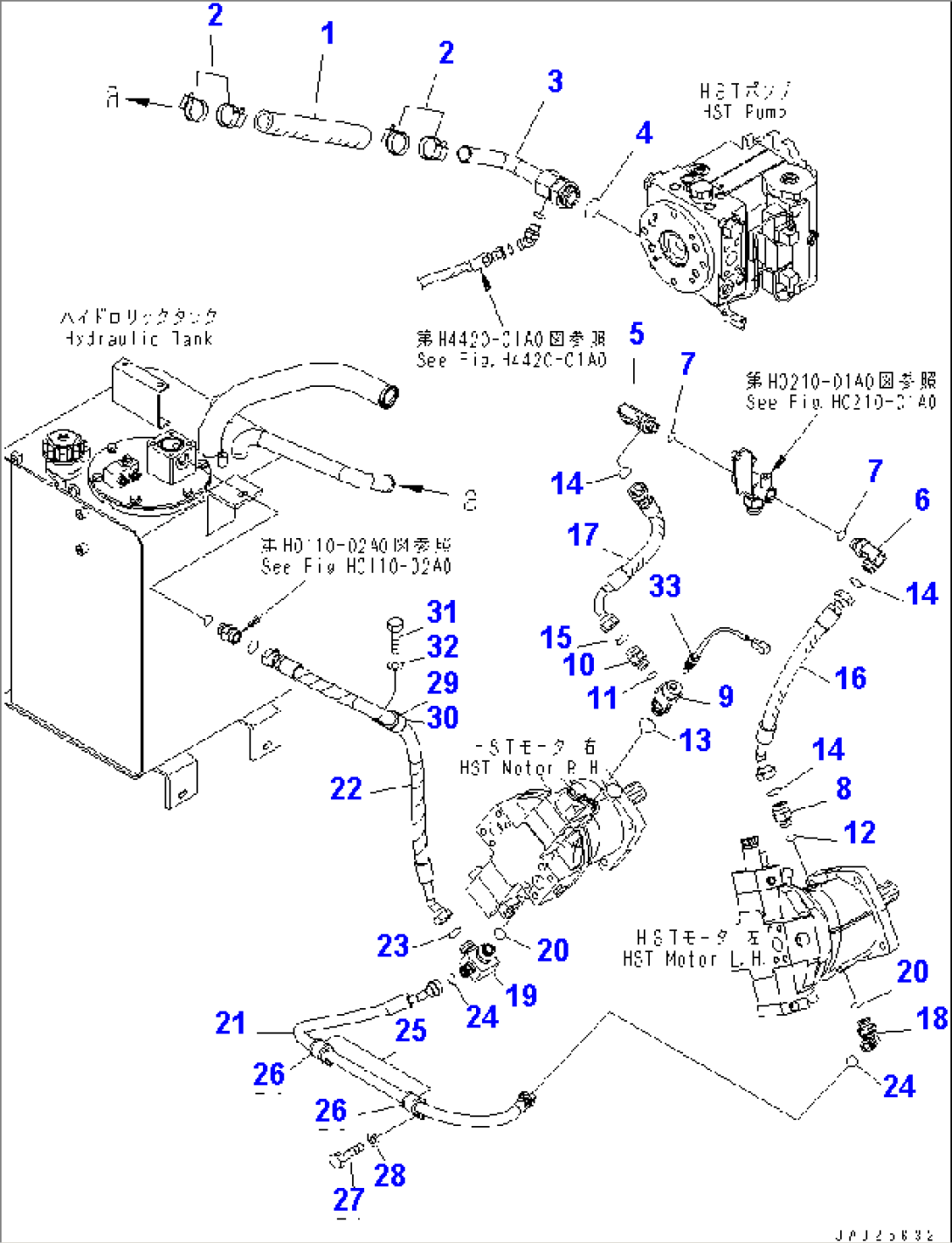

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07260-03236 | HOSE | 70001- | |
| 2 | 07289-00045 | CLAMP | 70001- | |
| 3 | 419-18-31292 | ELBOW | 70001- | |
| 4 | 07000-13044 | O-RING | 70001- | |
| 5 | 02782-10630 | ELBOW | 70001- | |
| 6 | 02782-1062A | ELBOW | 70001- | |
| 7 | 07002-12434 | O-RING | 70001- | |
| 8 | 418-18-32350 | UNION | 70001- | |
| 9 | 419-18-31282 | ELBOW | 70001- | |
| 10 | 02781-00628 | UNION | 70001- | |
| 11 | 07002-62434 | O-RING | 70001- | |
| 12 | 07000-13024 | O-RING | 70001- | |
| 13 | 07000-B3024 | O-RING | 70001- | |
| 14 | 02896-11018 | O-RING | 70001- | |
| 15 | 02896-61018 | O-RING | 70001- | |
| 16 | 419-18-32164 | HOSE, 520MM | 70001- | |
| 17 | 419-18-32262 | HOSE, 430MM | 70001- | |
| 18 | 56B-43-17360 | ELBOW | 70001- | |
| 19 | 419-18-31252 | TEE | 70001- | |
| 20 | 07000-13024 | O-RING | 70001- | |
| 21 | 419-18-32172 | HOSE, 1220MM | 70001- | |
| 22 | 419-18-32182 | HOSE, 950MM | 70001- | |
| 23 | 02896-11018 | O-RING | 70001- | |
| 24 | 02896-11015 | O-RING | 70001- | |
| 25 | 04434-53211 | CLIP | 70001- | |
| 26 | 07095-20523 | CUSHION | 70001- | |
| 27 | 01010-81020 | BOLT | 70001- | |
| 28 | 01643-31032 | WASHER | 70001- | |
| 29 | 04434-53412 | CLIP | 70001- | |
| 30 | 07095-20627 | CUSHION | 70001- | |
| 31 | 01010-81025 | BOLT | 70001- | |
| 32 | 01643-31032 | WASHER | 70001- | |
| 33 | 7861-93-3320 | SENSOR | 70001- |
