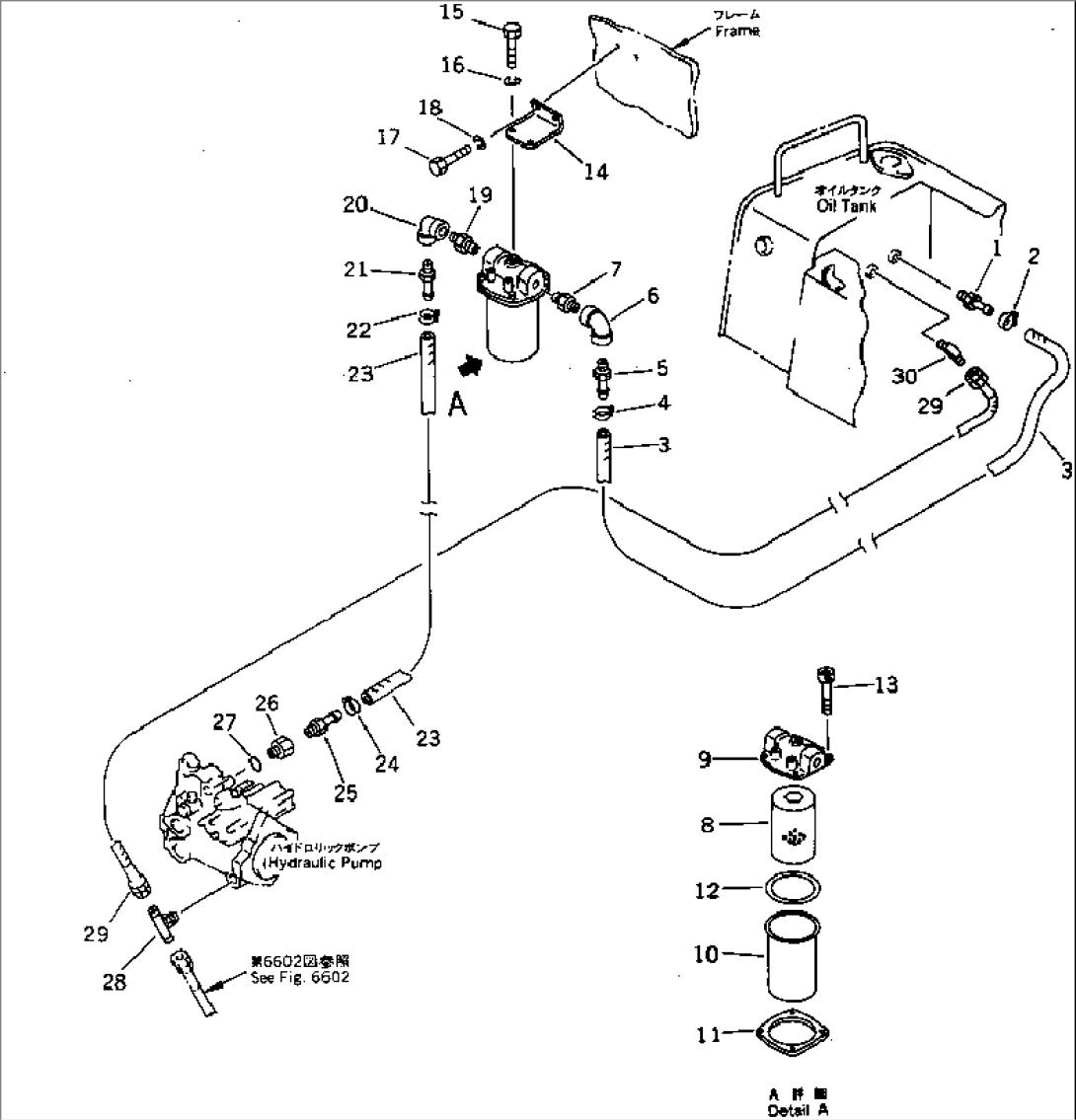

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 267-11-51025 | NIPPLE | 1001- | |
| 2 | 07280-04126 | CLAMP | 1001- | |
| 3 | 267-18-25255 | HOSE | 1001- | |
| 4 | 07280-04126 | CLAMP | 1001- | |
| 5 | 267-11-51025 | NIPPLE | 1001- | |
| 6 | 258-07-01008 | ELBOW | 1001- | |
| 7 | 267-11-12008 | NIPPLE | 1001- | |
| 257-80-17300 | FILTER ASS'Y | 1001- | ||
| 8 | 257-80-17310 | ELEMENT ASS'Y | 1001- | |
| 9 | 257-80-17320 | COVER,HEAD | 1001- | |
| 10 | 257-80-17330 | CASE | 1001- | |
| 11 | 257-80-17340 | FLANGE | 1001- | |
| 12 | 257-80-17350 | GASKET | 1001- | |
| 13 | 257-80-17360 | BOLT | 1001- | |
| 14 | 257-80-38150 | BRACKET | 1001- | |
| 15 | 01010-50816 | BOLT | 1001- | |
| 16 | 01602-20825 | WASHER,SPRING | 1001- | |
| 17 | 01010-51016 | BOLT | 1001- | |
| 18 | 01602-21030 | WASHER,SPRING | 1001- | |
| 19 | 267-11-12008 | NIPPLE | 1001- | |
| 20 | 258-07-01008 | ELBOW | 1001- | |
| 21 | 267-11-51025 | NIPPLE | 1001- | |
| 22 | 07280-04126 | CLAMP | 1001- | |
| 23 | 267-18-25060 | HOSE | 1001- | |
| 24 | 07280-04126 | CLAMP | 1001- | |
| 25 | 267-11-51025 | NIPPLE | 1001- | |
| 26 | 267-13-42108 | NIPPLE | 1001- | |
| 27 | 267-13-59160 | O-RING | 1001- | |
| 28 | 257-80-38120 | TEE | 1001- | |
| 29 | 257-80-38130 | HOSE | 1001- | |
| 30 | 267-11-31452 | ELBOW | 1001- |
