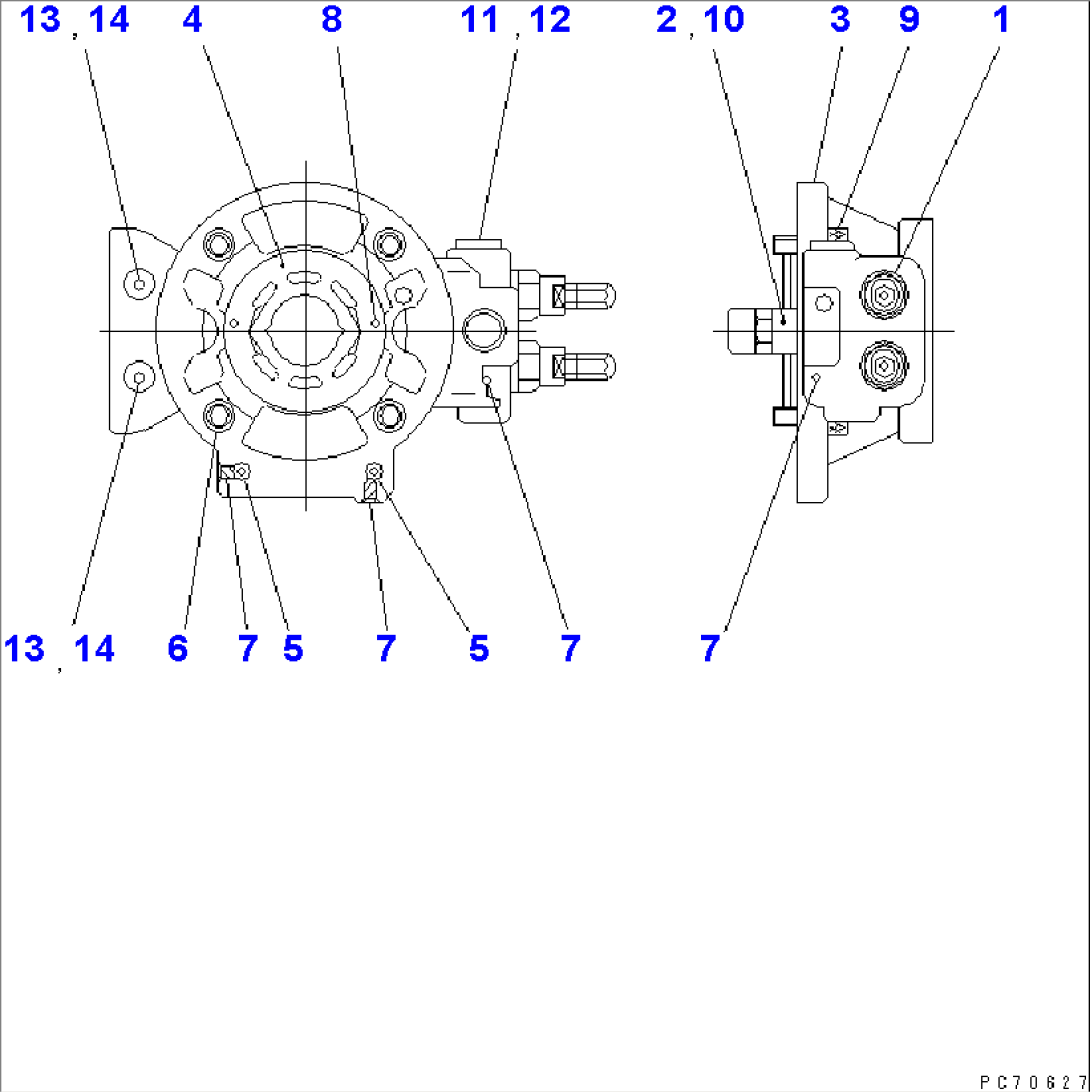

| Item | Part No. | Part Name | Qty | Serial No. |
| (2691-8-47100) | OIL PUMP ASS'Y | 1201- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6101 TO 6106. | ||||
| 266-81-71400 | COVER ASS'Y | 1201- | ||
| 1 | 266-81-71410 | VALVE | 1201- | |
| 2 | 266-81-71420 | VALVE | 1201- | |
| 3 | 266-81-71430 | COVER | 1201- | |
| 4 | 266-81-71440 | PLATE | 1201- | |
| 5 | 07000-11007 | O-RING | 1201- | |
| 6 | 266-81-71460 | O-RING | 1201- | |
| 7 | 266-81-71470 | PLUG | 1201- | |
| 8 | 266-81-71480 | PIN | 1201- | |
| 9 | 01252-31235 | BOLT | 1201- | |
| 10 | 266-81-71510 | O-RING | 1201- | |
| 11 | 266-81-71520 | PLUG | 1201- | |
| 12 | 07000-02018 | O-RING | 1201- | |
| 13 | 266-81-71540 | PLUG | 1201- | |
| 14 | 07000-12011 | O-RING | 1201- |
