| Item | Part No. | Part Name | Qty | Serial No. |
| (2691-8-47100) | OIL PUMP ASS'Y | 1001- | ||

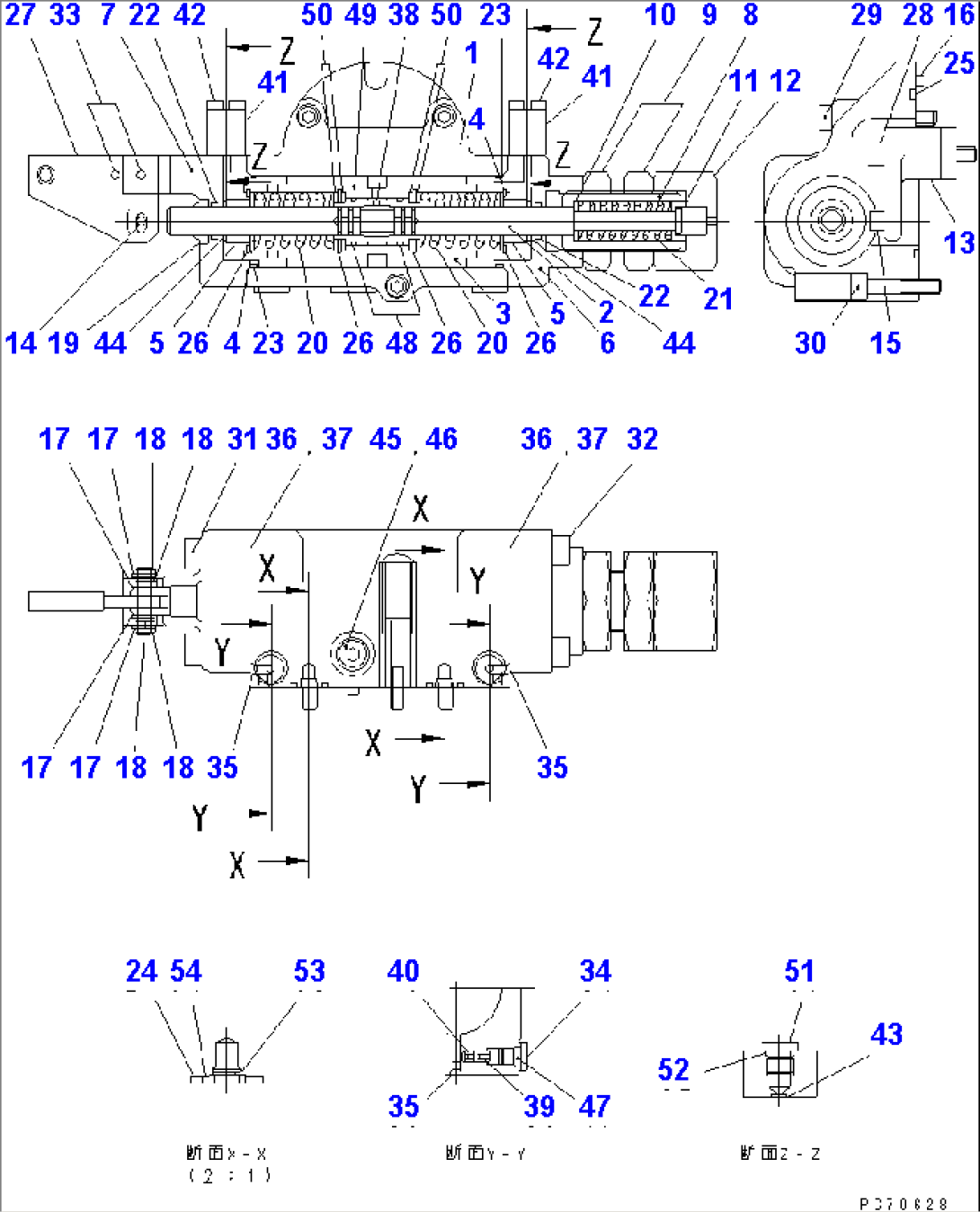

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6101 TO 6106. | ||||
| 266-81-71600 | CYLINDER ASS'Y | 1001- | ||
| 1 | 266-81-71610 | BODY | 1001- | |
| 2 | 266-81-71620 | SPOOL | 1001- | |
| 3 | 266-81-71630 | GUIDE | 1001- | |
| 4 | 266-81-71640 | PLATE | 1001- | |
| 5 | 266-81-71650 | SPACER | 1001- | |
| 6 | 266-81-71660 | COVER | 1001- | |
| 7 | 266-81-71670 | COVER | 1001- | |
| 8 | 266-81-71680 | SCREW | 1001- | |
| 9 | 266-81-71690 | NUT | 1001- | |
| 10 | 266-81-71710 | PLATE | 1001- | |
| 11 | 266-81-71720 | SPACER | 1001- | |
| 12 | 266-81-71730 | SCREW | 1001- | |
| 13 | 266-81-71740 | ARM | 1001- | |
| 14 | 266-81-71750 | PIN | 1001- | |
| 15 | 266-81-71760 | PIN | 1001- | |
| 16 | 266-81-71770 | PIN | 1001- | |
| 17 | 266-81-71780 | WASHER | 1001- | |
| 18 | 04050-01610 | PIN,COTTER | 1001- | |
| 19 | 266-81-71810 | SEAL,DUST | 1001- | |
| 20 | 266-81-71820 | SPRING | 1001- | |
| 21 | 266-81-71830 | SPRING | 1001- | |
| 22 | 07000-02015 | O-RING | 1001- | |
| 23 | 266-81-71850 | O-RING | 1001- | |
| 24 | 07000-02014 | O-RING | 1001- | |
| 25 | 266-81-71870 | O-RING | 1001- | |
| 26 | 04065-03212 | RING,SNAP | 1001- | |
| 27 | 266-81-71890 | ARM | 1001- | |
| 28 | 01252-30850 | BOLT | 1001- | |
| 29 | 01252-30855 | BOLT | 1001- | |
| 30 | 01252-30840 | BOLT | 1001- | |
| 31 | 01252-31035 | BOLT | 1001- | |
| 32 | 01252-31032 | BOLT | 1001- | |
| 33 | 266-81-71960 | PIN | 1001- | |
| 34 | 266-81-71970 | PLUG | 1001- | |
| 35 | 266-81-71980 | PLUG | 1001- | |
| 36 | 266-81-71990 | SHIM | 1001- | |
| 37 | 266-81-72110 | SHIM | 1001- | |
| 38 | 266-81-72120 | ORIFICE | 1001- | |
| 39 | 266-81-72130 | ORIFICE | 1001- | |
| 40 | 266-81-72140 | ORIFICE | 1001- | |
| 41 | 266-81-72150 | BLOCK | 1001- | |
| 42 | 01252-30532 | BOLT | 1001- | |
| 43 | 07000-01007 | O-RING | 1001- | |
| 44 | 266-81-72180 | SHIM | 1001- | |
| 45 | 266-81-72190 | PLUG | 1001- | |
| 46 | 07000-12011 | O-RING | 1001- | |
| 47 | 07000-11008 | O-RING | 1001- | |
| 48 | 266-09-13022 | O-RING | 1001- | |
| 49 | 266-81-72240 | BUSHING | 1001- | |
| 50 | 266-81-72250 | PLATE | 1001- | |
| 51 | 266-81-72260 | PLUG | 1001- | |
| 52 | 07000-12011 | O-RING | 1001- | |
| 53 | 266-81-72280 | FILTER | 1001- | |
| 54 | 266-81-72290 | SHIM | 1001- |
