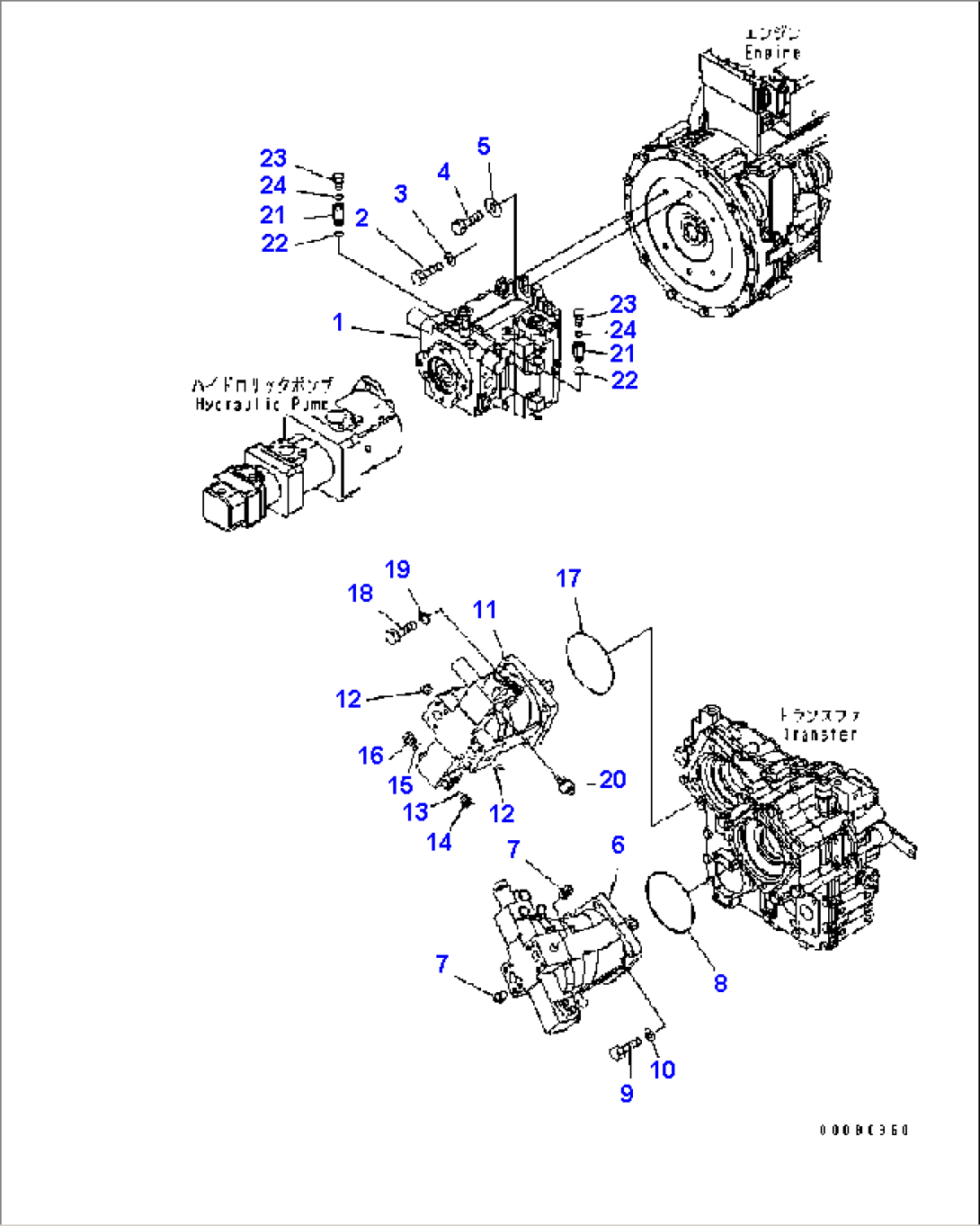

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (417-18-31102) | PUMP, VARIABLE | B12015- | |
| \0\(417-18-31101) | PUMP, VARIABLE | B10001-B12014 | ||
| 2 | 01010-81240 | BOLT | B10001- | |
| 3 | 175-54-34170 | WASHER | B10001- | |
| 4 | 01010-81645 | BOLT | B10001- | |
| 5 | 418-18-31160 | WASHER | B10001- | |
| 6 | (417-18-31203) | HST MOTOR 1, VARIABLE | B12015- | |
| \0\(417-18-31202) | HST MOTOR 1, VARIABLE | B11321-B12014 | ||
| 7 | 418-18-41440 | PLUG | B11321- | |
| 8 | 07000-A2145 | O-RING | B10001- | |
| 9 | 01010-81250 | BOLT | B10001- | |
| 10 | 01643-31232 | WASHER | B10001- | |
| 11 | (417-18-31303) | HST MOTOR 2, VARIABLE | B12015- | |
| \0\(417-18-31302) | HST MOTOR 2, VARIABLE | B11321-B12014 | ||
| 12 | 418-18-41440 | PLUG | B11321- | |
| 13 | 418-18-41450 | O-RING | B11321- | |
| 14 | 418-18-41460 | PLUG | B11321- | |
| 15 | 418-18-41470 | O-RING | B11321- | |
| 16 | 418-18-41480 | PLUG | B11321- | |
| 17 | 07000-A2145 | O-RING | B10001- | |
| 18 | 01010-81250 | BOLT | B10001- | |
| 19 | 01643-31232 | WASHER | B10001- | |
| 20 | 418-06-36210 | SENSOR | B10001- | |
| 07000-12011 | O-RING | B10001- | ||
| 21 | 419-62-31712 | JOINT | B11988- | |
| \0\419-62-31711 | JOINT | B11345-B11987 | ||
| 419-62-31710 | JOINT | B10001-B11344 | ||
| 22 | 07000-12011 | O-RING | B10001- | |
| 23 | 07040-11007 | PLUG | B10757- | |
| 24 | 07002-11023 | O-RING | B10001- |
