| Item | Part No. | Part Name | Qty | Serial No. |
| 415-17-21101 | PUMP ASS'Y,VALIABLE | 10001-12019 | ||

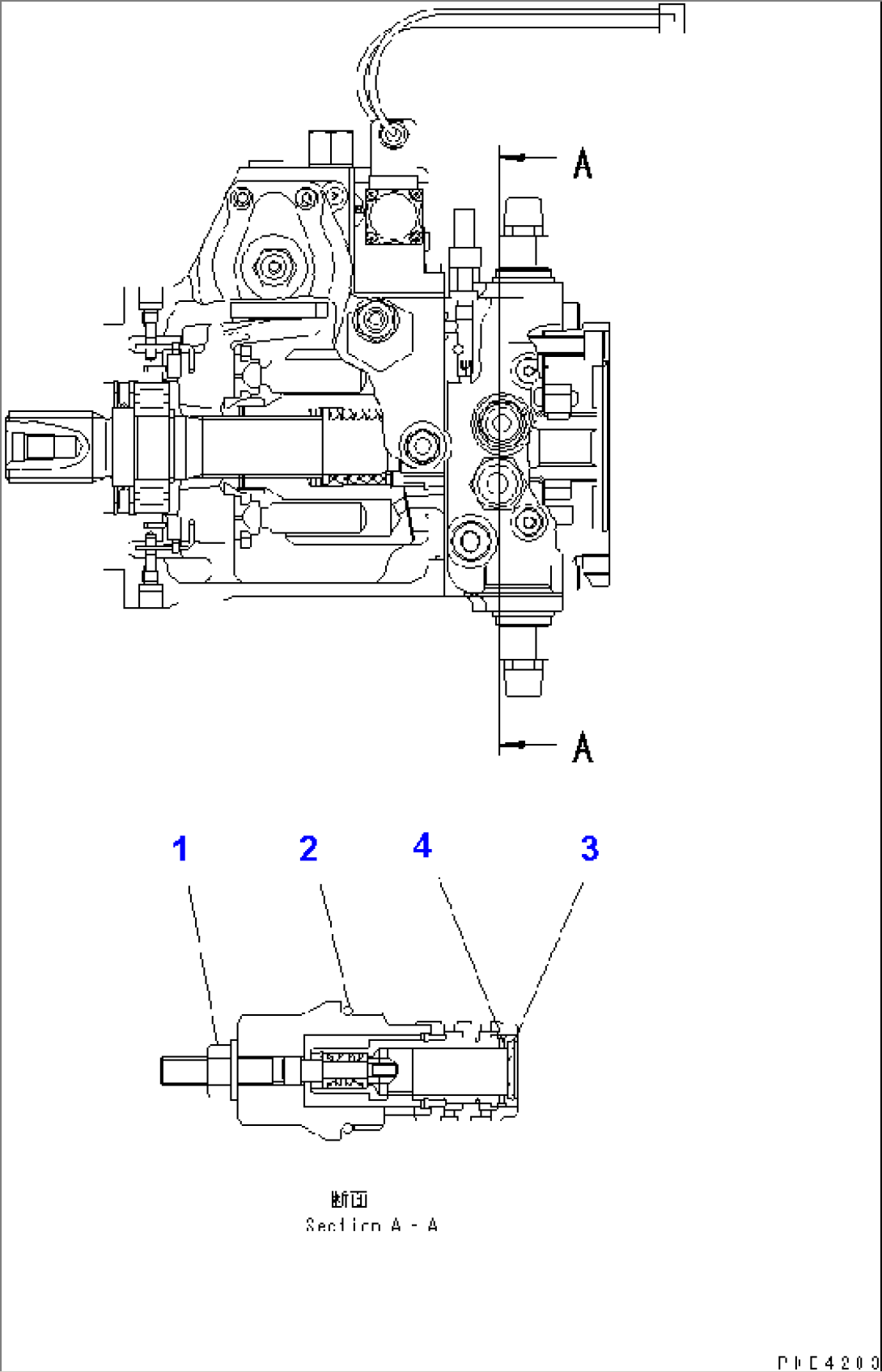

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2430-01A0 TO F2430-07A0. | ||||
| 415-17-21110 | VALVE ASS'Y,CARTRIDGE | 10001-12019 | ||
| 1 | 415-17-21330 | NUT | 10001-12019 | |
| 2 | 415-17-21420 | O-RING | 10001-12019 | |
| 3 | 04065-01610 | RING,SNAP | 10001-12019 | |
| 4 | \6\ | ORIFICE | 10001-12019 |
