| Item | Part No. | Part Name | Qty | Serial No. |
| (415-17-21101) | PUMP ASS'Y,VALIABLE | 10001-12019 | ||

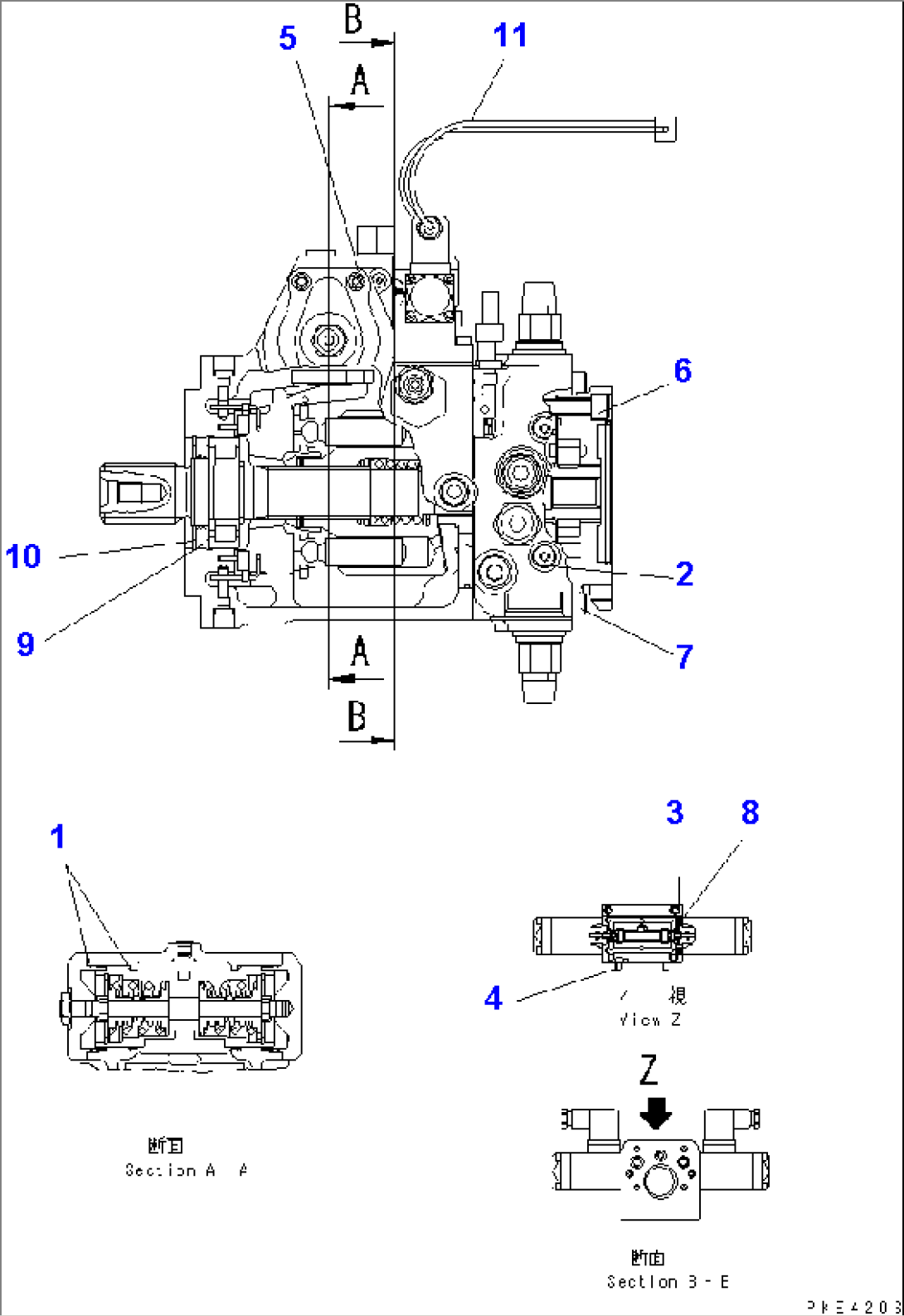

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2430-01A0 TO F2430-07A0. | ||||
| 1 | 02891-02075 | O-RING | 10001-12019 | |
| 2 | 23S-60-46260 | PLUG ASS'Y | 10001-12019 | |
| 3 | 01252-70620 | BOLT | 10001-12019 | |
| 4 | 01252-70650 | BOLT | 10001-12019 | |
| 5 | 01252-70820 | BOLT | 10001-12019 | |
| 6 | 01252-71240 | BOLT | 10001-12019 | |
| 7 | 01252-71690 | BOLT | 10001-12019 | |
| 8 | 01310-20606 | SCREW | 10001-12019 | |
| 9 | 415-17-21360 | RING,SNAP | 10001-12019 | |
| 10 | 415-17-21390 | RING,SNAP | 10001-12019 | |
| 11 | 415-17-21460 | CABLE | 10001-12019 |
