| Item | Part No. | Part Name | Qty | Serial No. |

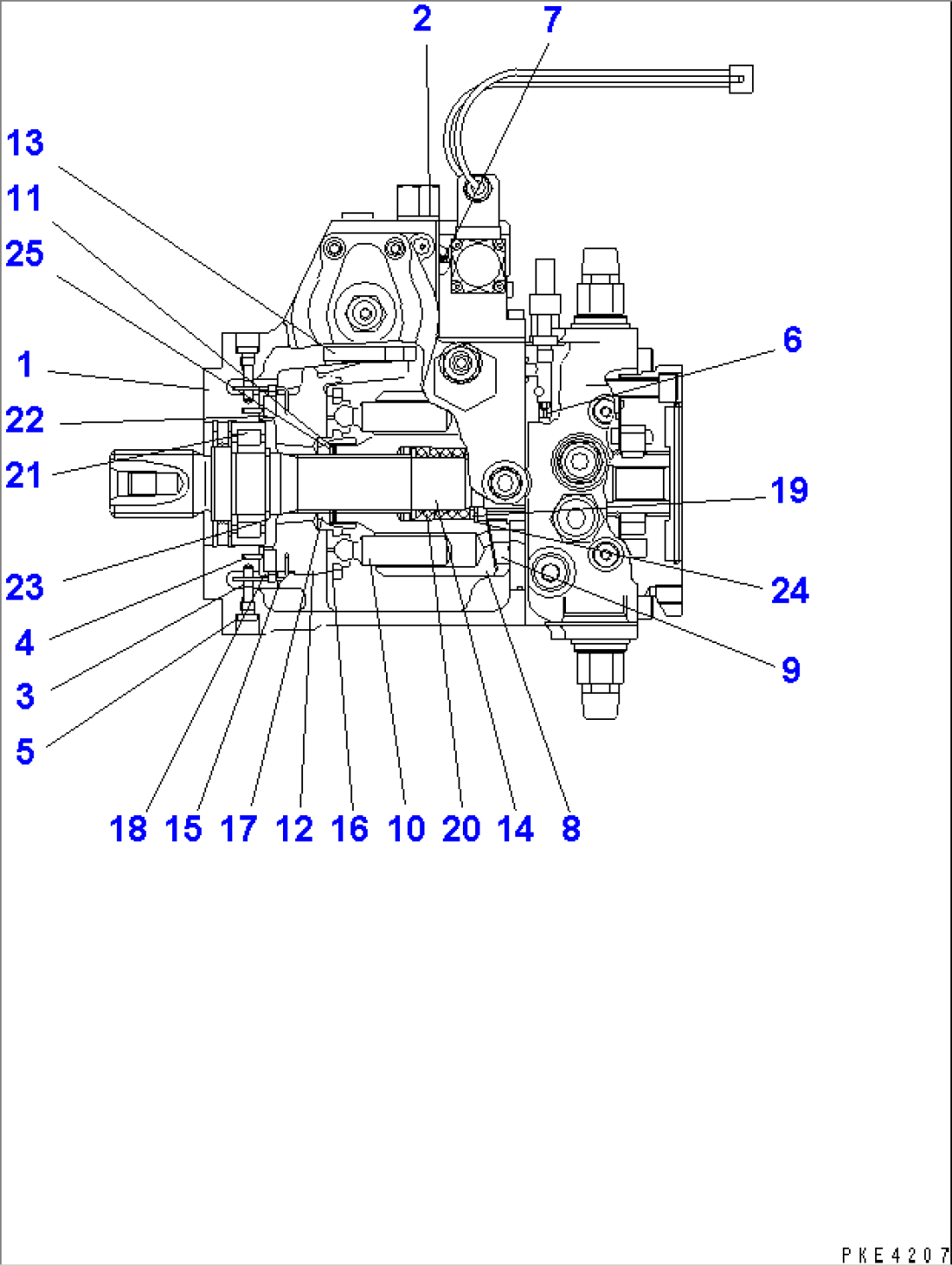

| (415-17-21101) | PUMP ASS'Y,VALIABLE | 10001-12019 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2430-01A0 TO F2430-07A0. | ||||
| 1 | 415-17-2110101 | HOUSING | 10001-12019 | |
| 2 | \6\ | PLATE, NAME | 10001-12019 | |
| 3 | \6\ | PIN | 10001-12019 | |
| 4 | \6\ | PIN | 10001-12019 | |
| 5 | \6\ | PLUG | 10001-12019 | |
| 6 | \6\ | ORIFICE | 10001-12019 | |
| 7 | \6\ | ORIFICE | 10001-12019 | |
| \6\ | CYLINDER ASS'Y,BLOCK | 10001-12019 | ||
| 8 | \6\ | CYLINDER,BLOCK | 10001-12019 | |
| 9 | \6\ | PLATE,CONTROL | 10001-12019 | |
| 10 | \6\ | PISTON | 10001-12019 | |
| 11 | \6\ | SPRING | 10001-12019 | |
| 12 | \6\ | HUNGER | 10001-12019 | |
| 13 | \6\ | GUIDE | 10001-12019 | |
| 14 | \6\ | SHAFT | 10001-12019 | |
| 15 | \6\ | PIN | 10001-12019 | |
| 16 | \6\ | RETAINER | 10001-12019 | |
| 17 | \6\ | GUIDE | 10001-12019 | |
| 18 | \6\ | GUIDE | 10001-12019 | |
| 19 | \6\ | SHIM | 10001-12019 | |
| 20 | \6\ | SPRING | 10001-12019 | |
| 21 | \6\ | BEARING | 10001-12019 | |
| 22 | \6\ | BEARING | 10001-12019 | |
| 23 | \6\ | RING,SNAP | 10001-12019 | |
| 24 | \6\ | RING,SNAP | 10001-12019 | |
| 25 | \6\ | SHIM | 10001-12019 |
