| Item | Part No. | Part Name | Qty | Serial No. |

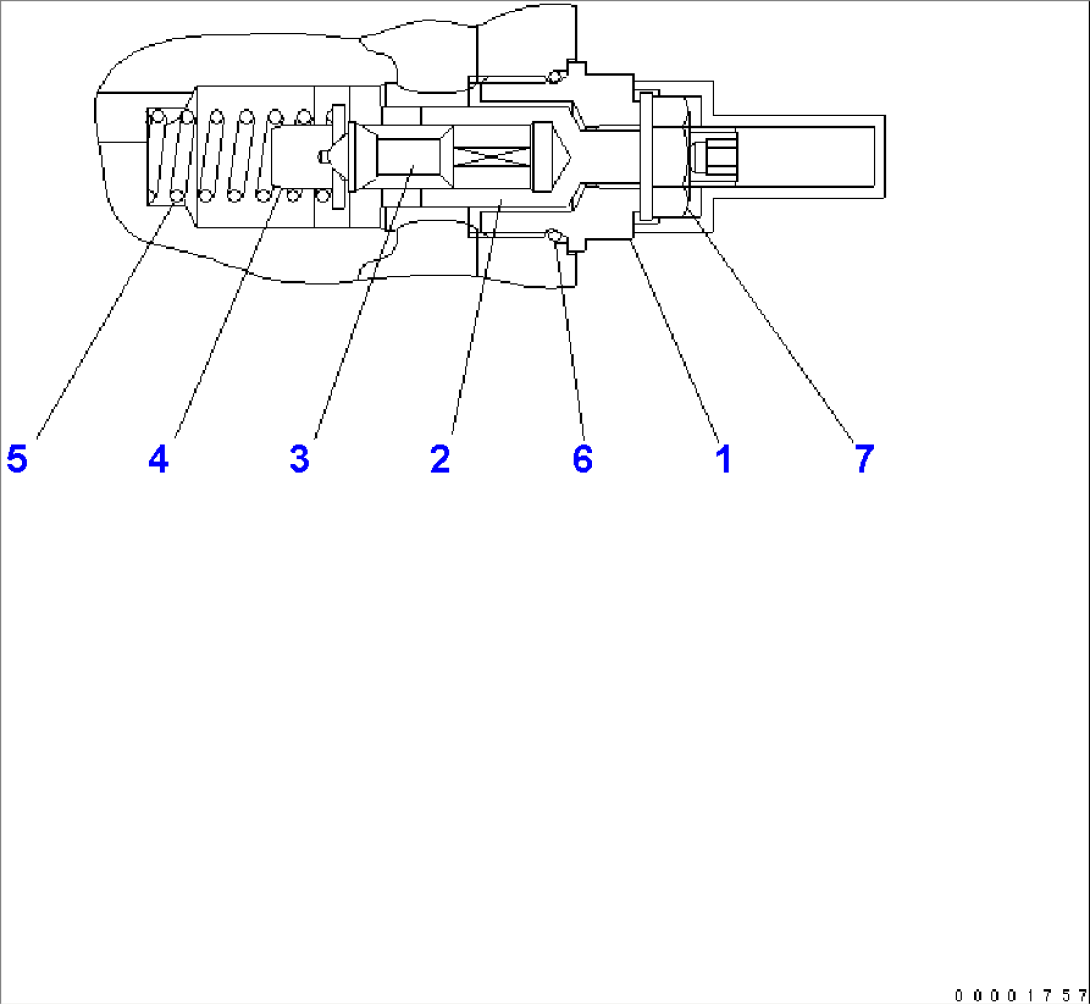

| PUMP,(SEE FIG. F2430-02A0) | A89001- | |||
| (\7\UC4704348567) | VALVE | A89001- | ||
| 1 | (\7\UC1704361673) | PLUG | A89001- | |
| 2 | (\7\UC1704496229) | SCREW | A89001- | |
| 3 | (\7\UC1704358998) | PISTON | A89001- | |
| 4 | (\7\UC1720103369) | SPRING SEAT | A89001- | |
| 5 | (\7\UC1704407659) | SPRING | A89001- | |
| 6 | UC1300170008 | O-RING | A89001- | |
| 7 | (\7\UC1701532717) | NUT | A89001- |
