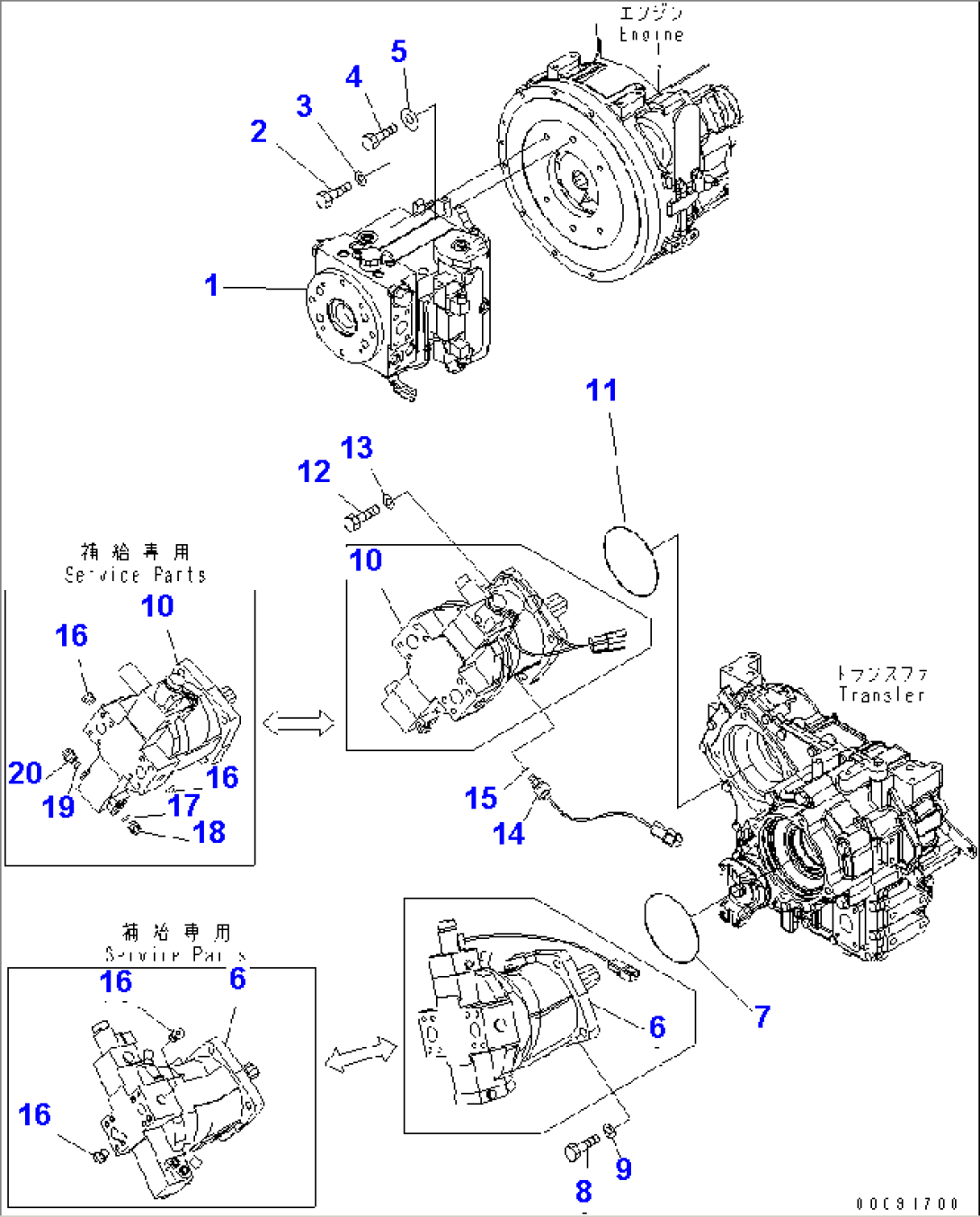

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (419-18-31102) | PUMP,(SEE FIG. Y1610-01A0A) | 60087-62020 | |
| 1 | (419-18-31101) | PUMP,(SEE FIG. Y1610-01A0) | 60001-60086 | |
| 2 | 01010-81240 | BOLT | 60001-@ | |
| 3 | 175-54-34170 | WASHER | 60001-@ | |
| 4 | 01010-81650 | BOLT | 60001-@ | |
| 5 | 418-18-31160 | WASHER | 60001-@ | |
| 6 | (419-18-31201) | MOTOR,(SEE FIG. Y1651-01A0) | 60001-62020 | |
| 7 | 07000-A5185 | O-RING | 60001-@ | |
| 8 | 01010-81655 | BOLT | 60001-@ | |
| 9 | 01643-31645 | WASHER | 60001-@ | |
| 10 | (419-18-31301) | MOTOR,(SEE FIG. Y1651-01A1) | 60001-62020 | |
| 11 | 07000-A5185 | O-RING | 60001-@ | |
| 12 | 01010-81655 | BOLT | 60001-@ | |
| 13 | 01643-31645 | WASHER | 60001-@ | |
| 14 | 418-06-36210 | SENSOR | 60001-@ | |
| 15 | 07000-12011 | O-RING | 60001-@ | |
| 16 | 419-18-31650 | PLUG | 61399-@ | |
| 17 | 418-18-31450 | O-RING | 61399-@ | |
| 18 | 418-18-31460 | PLUG | 61399-@ | |
| 19 | 418-18-31470 | O-RING | 61399-@ | |
| 20 | 418-18-31480 | PLUG | 61399-@ |
