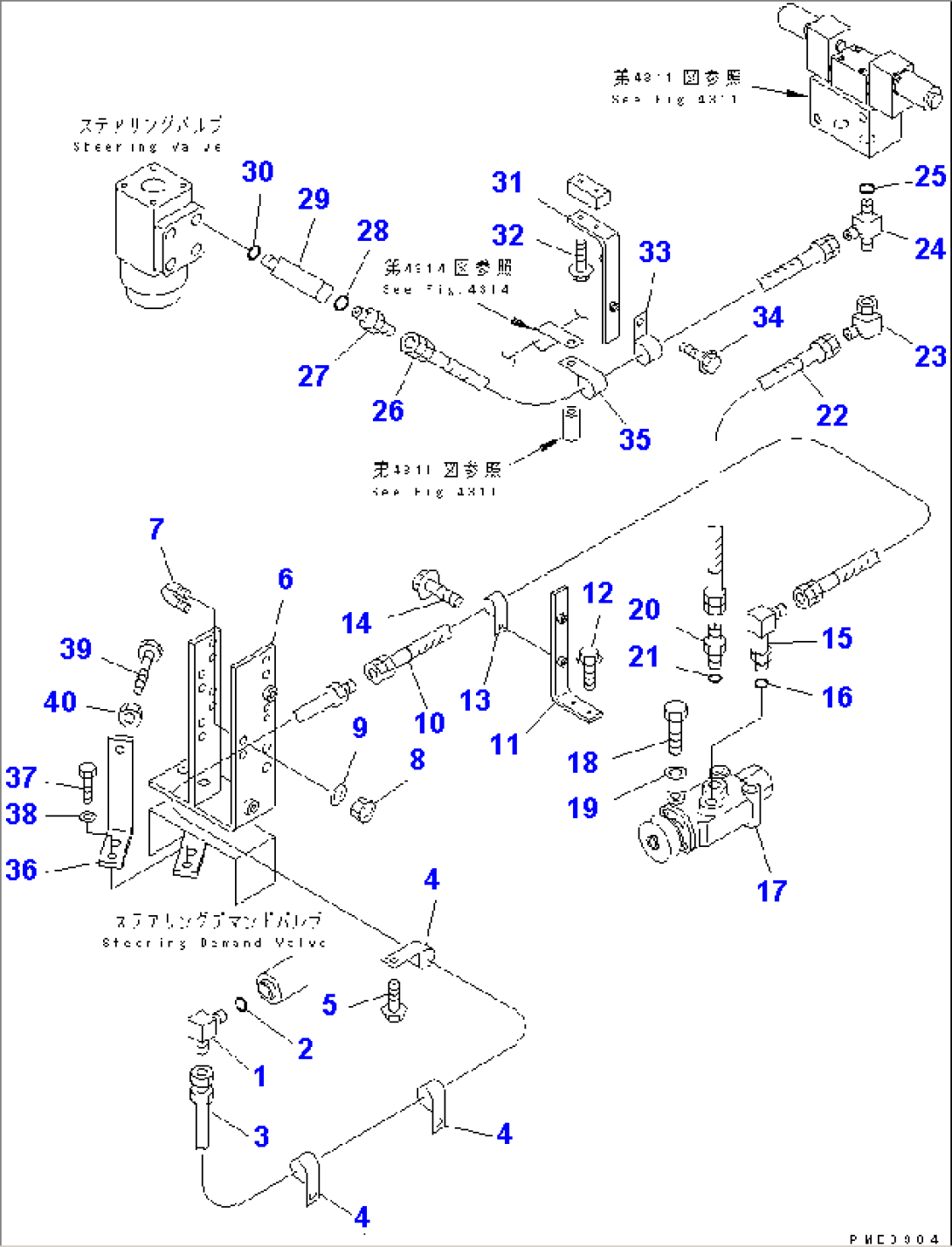

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07235-10315 | ELBOW | 10001- | |
| 2 | 07002-22034 | O-RING | 10001- | |
| 3 | 428-S33-1410 | TUBE | 10001- | |
| 4 | 04434-51510 | CLIP | 10001- | |
| 5 | 01435-01016 | BOLT | 10001- | |
| 6 | 428-S33-1430 | BRACKET | 10001- | |
| 7 | 07283-31529 | CLIP | 10001- | |
| 8 | 01596-00807 | NUT | 10001- | |
| 9 | 01643-30823 | WASHER | 10001- | |
| 10 | 07102-20309 | HOSE | 10001- | |
| 11 | 428-S33-1440 | BRACKET | 10001- | |
| 12 | 01435-01020 | BOLT | 10001- | |
| 13 | 04434-51810 | CLIP | 10001- | |
| 14 | 01435-01016 | BOLT | 10001- | |
| 15 | 20R-62-11360 | ELBOW | 10001- | |
| 16 | 07002-22034 | O-RING | 10001- | |
| 17 | (421-64-15500) | VALVE ASS'Y,(SEE FIG.4131) | 10001- | |
| 18 | 01010-80860 | BOLT | 10001- | |
| 19 | 01643-30823 | WASHER | 10001- | |
| 20 | 07230-20315 | UNION | 10001- | |
| 21 | 07002-22034 | O-RING | 10001- | |
| 22 | 07102-20306 | HOSE | 10001- | |
| 23 | 415-62-11350 | ELBOW | 10001- | |
| 24 | 415-62-11571 | TEE | 10001- | |
| 25 | 07002-12034 | O-RING | 10001- | |
| 26 | 07102-20310 | HOSE | 10001- | |
| 27 | 415-62-11550 | NIPPLE | 10001- | |
| 28 | 415-62-11560 | O-RING | 10001- | |
| 29 | 416-62-11430 | ELBOW | 10001- | |
| 30 | 415-62-11560 | O-RING | 10001- | |
| 31 | 427-S33-2480 | PLATE | 10001- | |
| 32 | 01435-01020 | BOLT | 10001- | |
| 33 | 04434-51810 | CLIP | 10001- | |
| 34 | 01435-01016 | BOLT | 10001- | |
| 35 | 04434-51810 | CLIP | 10001- | |
| 36 | 428-S33-1450 | PLATE | 10001- | |
| 37 | 01010-81025 | BOLT | 10001- | |
| 38 | 01643-31032 | WASHER | 10001- | |
| 39 | 428-S33-2580 | BOLT | 10001- | |
| 40 | 01580-11210 | NUT | 10001- |
