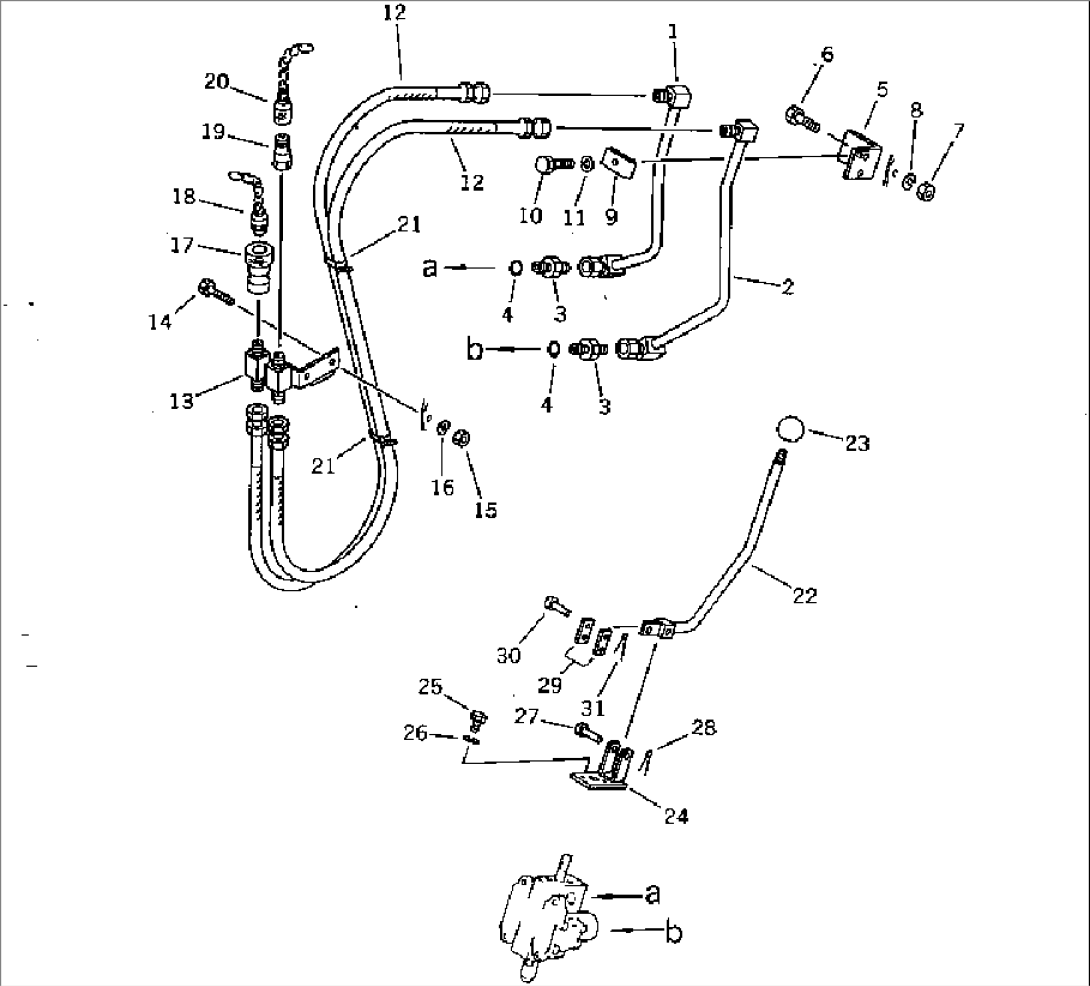

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | FF7814-91660 | TUBE | 3001- | |
| 2 | FF7814-91670 | TUBE | 3001- | |
| 3 | 20M-62-11310 | NIPPLE | 3001- | |
| 4 | 07000-12014 | O-RING | 3001- | |
| 5 | FF7814-91730 | BRACKET | 3001- | |
| 6 | 01010-50825 | BOLT | 3001- | |
| 7 | 01580-10806 | NUT | 3001- | |
| 8 | 01602-20825 | WASHER | 3001- | |
| 9 | 101-856-8830 | CLAMP | 3001- | |
| 10 | 01010-50830 | BOLT | 3001- | |
| 11 | 01602-20825 | WASHER | 3001- | |
| 12 | FF7814-91680 | HOSE | 3001- | |
| 13 | FF7814-91690 | NIPPLE | 3001- | |
| 14 | 01010-50830 | BOLT | 3001- | |
| 15 | 01580-10806 | NUT | 3001- | |
| 16 | 01602-20825 | WASHER | 3001- | |
| 17 | 10E-60-16340 | COUPLING | 3001- | |
| 18 | FF7810-91380 | CAP,DUST | 3001- | |
| 19 | 10E-60-16350 | COUPLING | 3001- | |
| 20 | FF7810-91370 | CAP,DUST | 3001- | |
| 21 | 08034-00519 | BAND | 3001- | |
| 22 | FF7814-91510 | LEVER | 3001- | |
| 23 | 20R-43-11280 | KNOB | 3001- | |
| 24 | FF8733-44320 | BRACKET | 3001- | |
| 25 | 01010-50616 | BOLT | 3001- | |
| 26 | 01602-20619 | WASHER | 3001- | |
| 27 | 04205-11042 | PIN | 3001- | |
| 28 | 04050-13018 | PIN | 3001- | |
| 29 | FF8733-44330 | PLATE | 3001- | |
| 30 | 04205-10820 | PIN | 3001- | |
| 31 | 04050-12015 | PIN | 3001- |
