| Item | Part No. | Part Name | Qty | Serial No. |

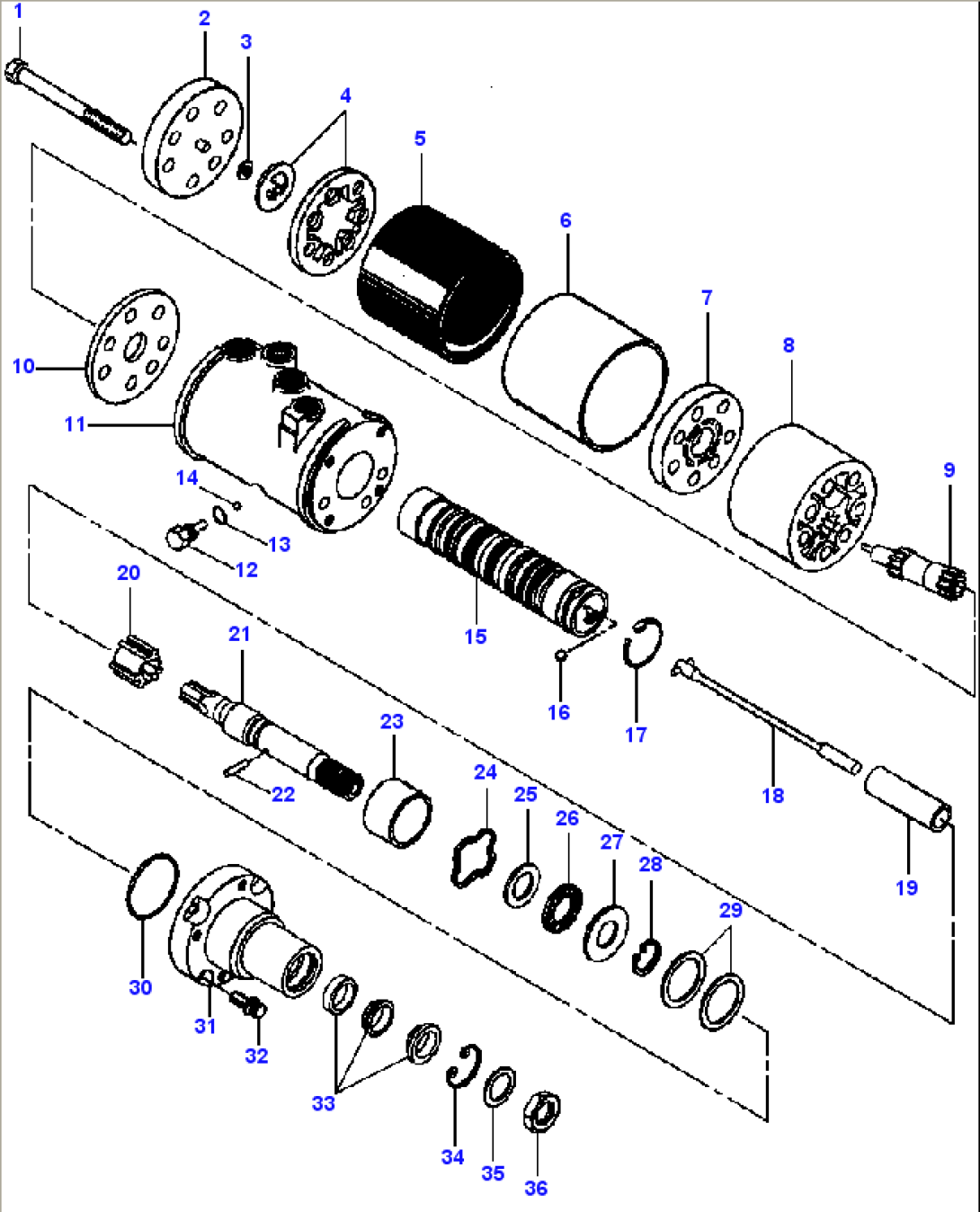

| 160 699 | STEERING UNIT, HYDRAGUIDE | |||
| 1 | 122 701 | BOLT | ||
| 2 | 535 101 R1 | COVER ASSEMBLY, END | ||
| 3 | 535 100 R1 | WASHER | ||
| 4 | 535 097 R1 | COMMUTATOR ASSEMBLY | ||
| 5 | 122 698 | SEAL, | ||
| 6 | 122 699 | RETAINER, SEAL | ||
| 7 | 535 096 R1 | MANIFOLD | ||
| 8 | 122 690 | ROTOR SET | ||
| 9 | 122 688 | LINK, DRIVE | ||
| 10 | 535 093 R1 | SPACER | ||
| 11 | (NSS) | HOUSING ASSEMBLY | ||
| 12 | 71 085 C1 | PLUG & PIN ASSEMBLY | ||
| 13 | 23 524 R1 | O-RING | ||
| 14 | 24 176 | BALL, STEEL | ||
| 15 | (NSS) | SPOOL, VALVE | ||
| 16 | 17 010 R1 | BALL, STEEL | ||
| 17 | 1200 982 H1 | SPRING, PRE-LOAD | ||
| 122 685 | SPRING | |||
| 18 | 122 669 | BAR, TORSION | ||
| 19 | 122 671 | SPACER, DRIVE LINK | ||
| 20 | 122 670 | RING, DRIVE | ||
| 21 | 535 057 R1 | SHAFT, INPUT | ||
| 22 | 122 672 | PIN | ||
| 23 | 1200 992 H1 | SPACER | ||
| 24 | 928 469 C1 | WASHER, WAVE | ||
| 25 | 379 785 R1 | RACE, BEARING | ||
| 26 | 379 783 R91 | BEARING, THRUST | ||
| 27 | 535 087 R1 | WASHER, THRUST | ||
| 28 | 454 331 R1 | RING, RETAINING | ||
| 29 | 122 676 | SHIM - 0.0025 | ||
| 122 675 | SHIM - 0.005 | |||
| 122 674 | SHIM - 0.010 | |||
| 122 677 | SHIM - 0.030 | |||
| 30 | 535 091 R1 | SEAL, RING | ||
| 31 | 70 115 C1 | COVER, UPPER | ||
| 32 | 27 586 R1 | BOLT | ||
| 33 | 224 712 C1 | KIT, SEAL | ||
| 34 | 383 878 R1 | RING, RETAINING | ||
| 35 | 122 697 | SEAL | ||
| 36 | 1200 975 H1 | NUT | ||
| F1 - FOR MOUNTING HARDWARE SEE PG 05-003 | ||||
