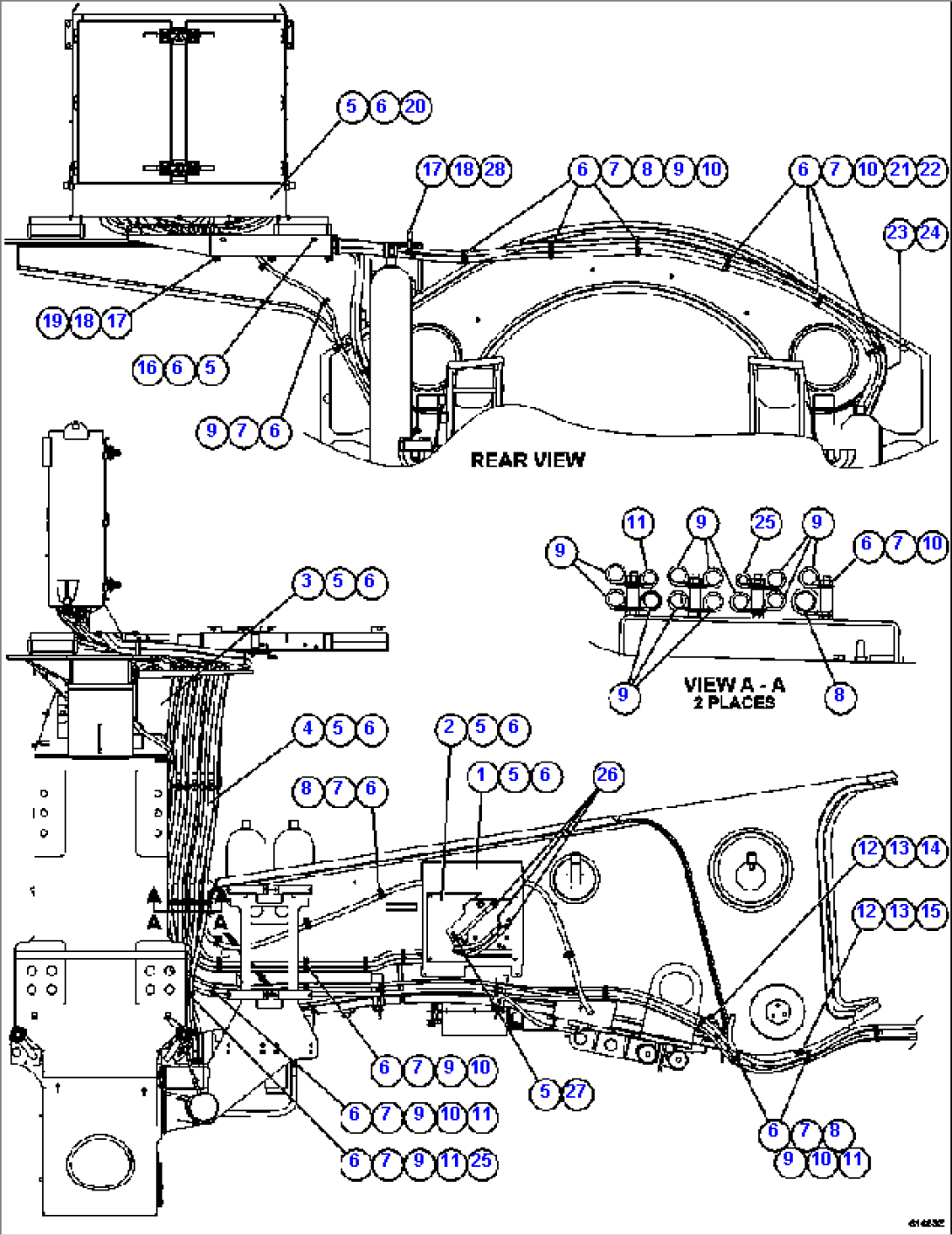

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EM9600 | COVER | ||
| 2 | EJ3626 | SHEET | ||
| 3 | EK6368 | SHIELD | ||
| 4 | EM9984 | SHIELD | ||
| 5 | MM0605 | CAPSCREW - M10 X 1.50 X 25 | ||
| 6 | MM0461 | FLAT WASHER - M10 | ||
| 7 | MM0178 | NUT - M10 X 1.50 | ||
| 8 | WB3096 | CLAMP, CUSHION - 1 1/4" | ||
| 9 | WB3092 | CLAMP, CUSHION - 7/8" | ||
| 10 | TY8375 | SPACER | ||
| 11 | WB3091 | CLAMP, CUSHION - 11/16" | ||
| 12 | MM0022 | CAPSCREW - M8 X 1.25 X 20 | ||
| 13 | MM0460 | FLAT WASHER - M8 | ||
| 14 | EL3762 | BRACKET | ||
| 15 | EL3763 | BRACKET | ||
| 16 | XB5277 | COVER, HYDRAULIC HOSE | ||
| 17 | MM0619 | CAPSCREW - M12 X 1.75 X 35 | ||
| 18 | MM0462 | FLAT WASHER - M12 | ||
| 19 | MM0694 | LOCKNUT - M12 X 1.75 | ||
| 20 | EL6433 | COVER | ||
| 21 | WB1305 | CLAMP, CUSHION - 1 1/2" | ||
| 22 | WB3093 | CLAMP, CUSHION - 1" | ||
| 23 | EK3964 | SLEEVE, FIRE | ||
| 24 | EK3965 | SLEEVE, FIRE | ||
| 25 | WB3097 | CLAMP, CUSHION - 1/2" | ||
| 26 | WB0375 | FITTING, 90 DEGREE ELBOW | ||
| 27 | EL8977 | BRACKET | ||
| 28 | XB1702 | BRACKET |
