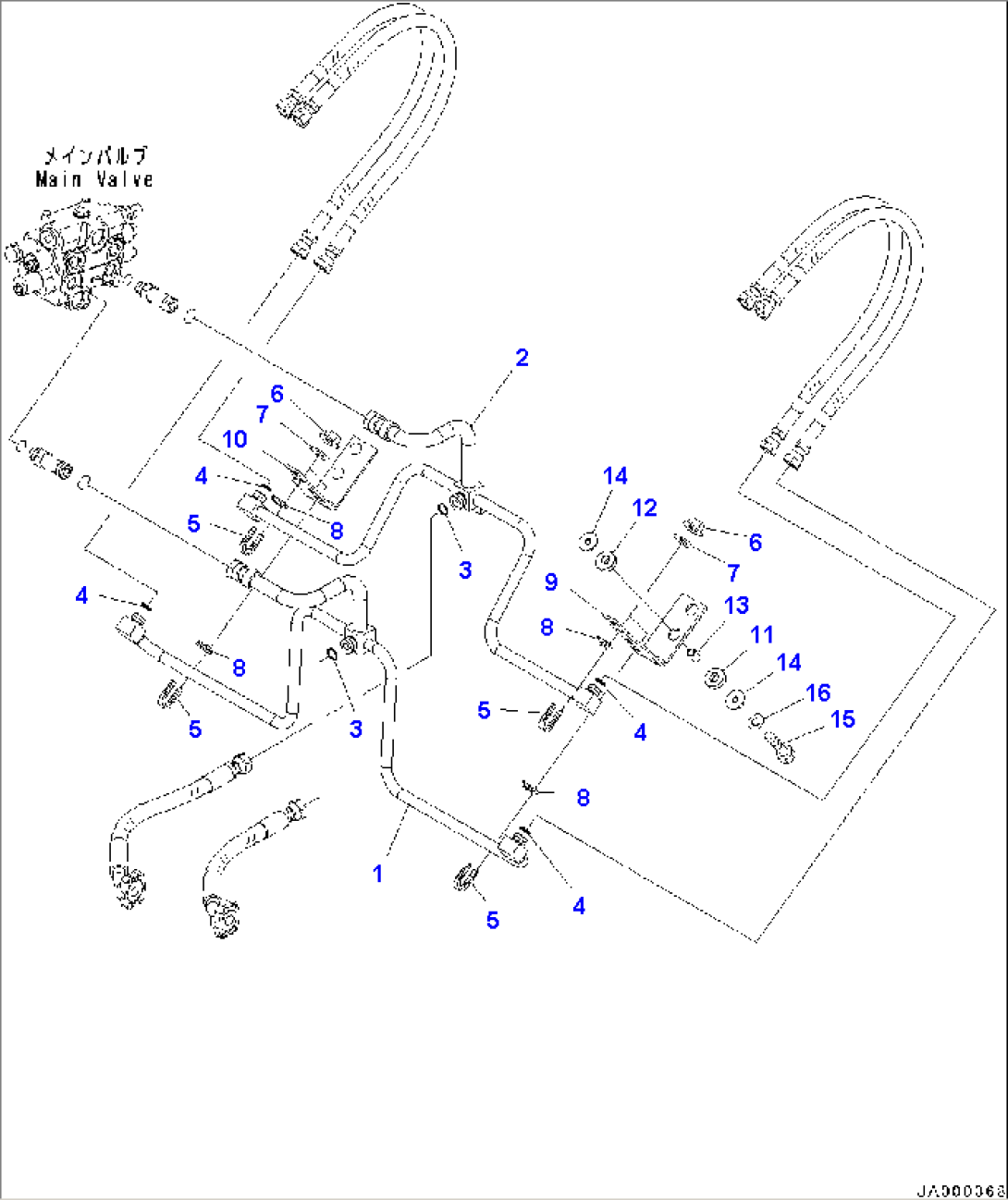

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-62-33172 | Tube | C10001- | |
| 2 | 417-62-33181 | Tube | C10001- | |
| 3 | 02896-11018 | O-ring | C10001- | |
| 4 | 02896-11015 | O-ring | C10001- | |
| 5 | 07283-32236 | Clip | C10001- | |
| 6 | 01597-01009 | Nut | C10001- | |
| 7 | 01643-31032 | Washer | C10001- | |
| 8 | 07283-52232 | Seat | C10001- | |
| 9 | 417-62-33281 | Bracket | C10001- | |
| 10 | 417-62-33291 | Bracket | C10001- | |
| 11 | 415-64-13130 | Cushion | C10001- | |
| 12 | 419-43-17930 | Cushion | C10001- | |
| 13 | 417-54-13470 | Spacer | C10001- | |
| 14 | 415-64-13120 | Washer | C10001- | |
| 15 | 01010-81060 | Bolt | C10001- | |
| 16 | 01643-31032 | Washer | C10001- |
