| Item | Part No. | Part Name | Qty | Serial No. |
| 700-91-15001 | VALVE ASS'Y,HOIST | 1198- | ||
| 700-91-15000 | VALVE ASS'Y,HOIST | 1102-1197 | ||

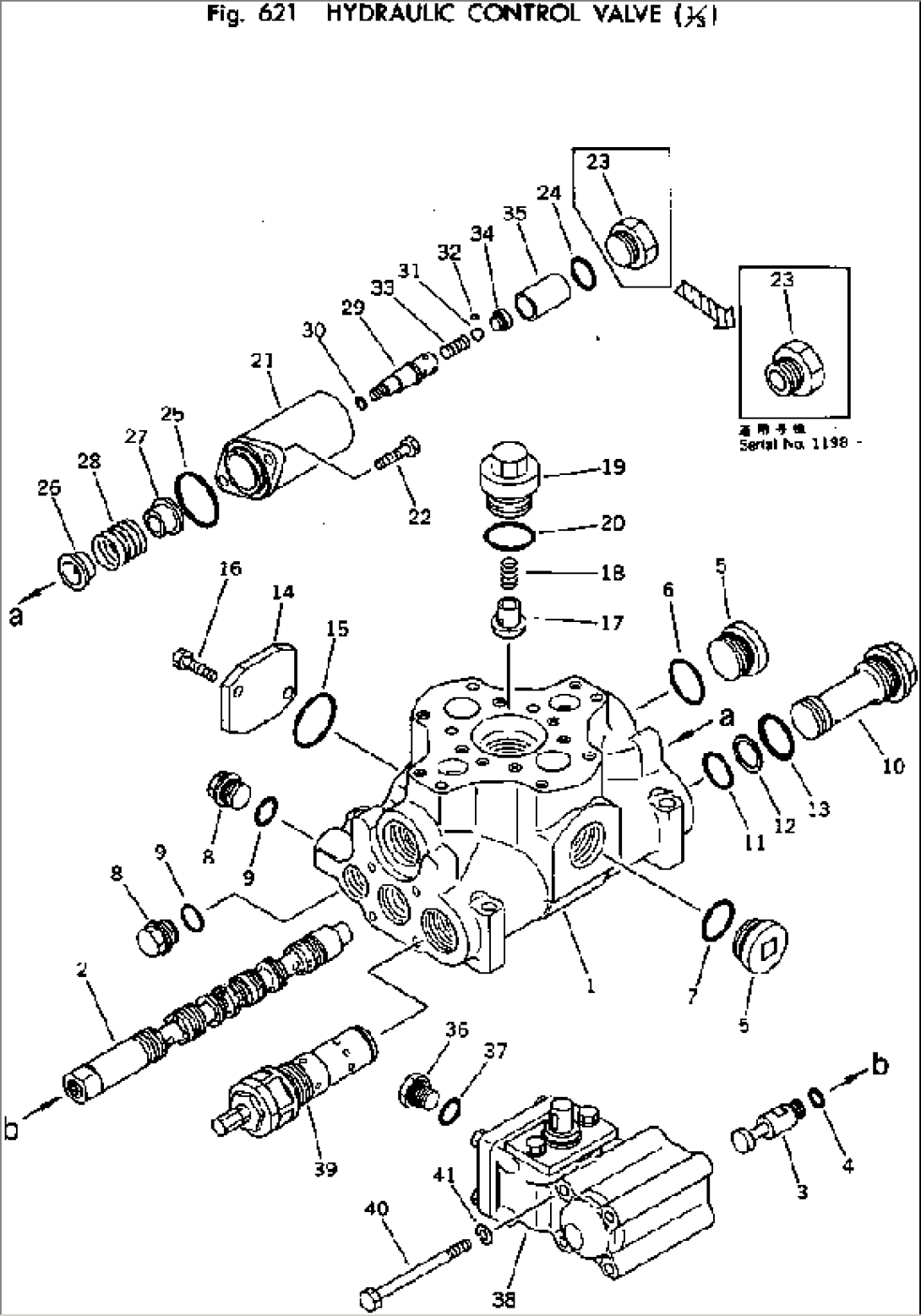

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.621 TO 623. | ||||
| 1 | \6\ | BODY | 1102- | |
| 2 | \6\ | SPOOL | 1198- | |
| 2 | \6\ | SPOOL | 1102-1197 | |
| 3 | \6\ | JOINT | 1102- | |
| 4 | 07002-11423 | O-RING | 1102- | |
| 5 | 07040-13618 | PLUG | 1102- | |
| 6 | 07002-03634 | O-RING | 1102- | |
| 7 | 07002-13634 | O-RING | 1102- | |
| 8 | 700-22-11370 | PLUG | 1102- | |
| 9 | 07002-02434 | O-RING | 1102- | |
| 10 | 700-93-11310 | PLUG | 1102- | |
| 11 | 700-93-11320 | O-RING | 1102- | |
| 12 | 700-93-11330 | RING | 1102- | |
| 13 | 07002-03634 | O-RING | 1102- | |
| 14 | 700-93-11940 | FLANGE | 1102- | |
| 15 | 07430-71380 | O-RING | 1102- | |
| 16 | 01010-51025 | BOLT | 1102- | |
| 17 | 700-93-11461 | VALVE,CHECK | 1102- | |
| 18 | 700-93-11471 | SPRING | 1102- | |
| 19 | 700-93-11481 | PLUG | 1102- | |
| 20 | 07002-13634 | O-RING | 1102- | |
| 21 | 700-91-11230 | CASE | 1102- | |
| 22 | 01252-30820 | BOLT | 1102- | |
| 23 | 700-92-11430 | PLUG | 1198- | |
| 23 | 700-91-11240 | PLUG | 1102-1197 | |
| 24 | 07002-03034 | O-RING | 1102- | |
| 25 | 07000-03042 | O-RING | 1102- | |
| 26 | 700-91-11260 | RETAINER | 1102- | |
| 27 | 700-91-11380 | RETAINER | 1198- | |
| 27 | 700-91-11270 | RETAINER | 1102-1197 | |
| 28 | 700-91-11390 | SPRING | 1198- | |
| 28 | 700-84-11770 | SPRING | 1102-1197 | |
| 29 | 700-91-11250 | PLUG | 1102- | |
| 30 | 07000-11006 | O-RING | 1102- | |
| 31 | 04260-00952 | BALL | 1102- | |
| 32 | 700-84-11730 | BALL | 1102- | |
| 33 | 700-82-11380 | SPRING | 1102- | |
| 34 | 700-21-11210 | PLUG | 1102- | |
| 35 | 700-91-11370 | DETENT | 1198- | |
| 35 | 700-82-11410 | DETENT | 1102-1197 | |
| 36 | 700-91-11290 | PLUG | 1102- | |
| 37 | 07000-02020 | O-RING | 1102- | |
| 38 | (702-13-21601) | ROTARY SEAL ASS'Y | 1102- | |
| 39 | (700-91-53000) | VALVE ASS'Y,RELIEF | 1102- | |
| 40 | 430-07-23560 | BOLT | 1102- | |
| 41 | 01602-20825 | WASHER | 1102- |
